YJ41HF stainless steel antibiotic stop valve, stainless steel antibiotic stop valve, stop valve

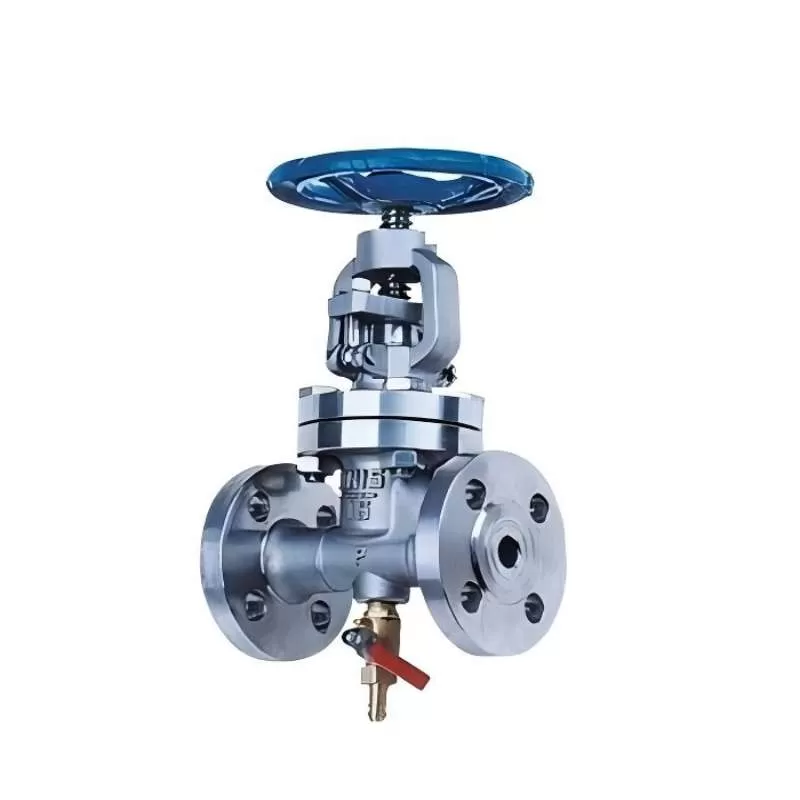

YJ41HF stainless steel Antibiotic globe Valve Product Introduction:

The material is CF8, CF8M, mainly used in biological fermentation, medicine and beer fermentation, amino acid fermentation, biological pesticide fermentation, biological fertilizer fermentation, various antibiotic fermentation, biological, biochemical, chemical and pharmaceutical materials, water, steam, cold control and other fields, the bottom can be opened according to customer needs, high temperature resistance, long service life, no dead Angle to zero leakage level.

Product implementation standards:

1) Design and manufacture: GB/T12235

2) Flange size: JB/T79.1

3) Structure length: GB/T12221

4) Inspection and test: JB/T9092

YJ41HF stainless steel antibiotic globe valve design features:

one The valve and valve cover are connected by matching, which changes the traditional valve body tapping, which is conducive to production and maintenance;

2. The sealing material of the valve is reinforced polytetrafluoroethylene, the practical temperature is (-40C~300C), and the gasket is replaced during overhaul to reduce production costs and improve economic benefits;

3. The screw thread of the valve is not in contact with the material, and the valve core is an integrated forging;

4. The valve can be used in a wide range and can replace the ordinary hard sealed stainless steel globe valve

The material is CF8, CF8M, mainly used in biological fermentation, medicine and beer fermentation, amino acid fermentation, biological pesticide fermentation, biological fertilizer fermentation, various antibiotic fermentation, biological, biochemical, chemical and pharmaceutical materials, water, steam, cold control and other fields, the bottom can be opened according to customer needs, high temperature resistance, long service life, no dead Angle to zero leakage level.
