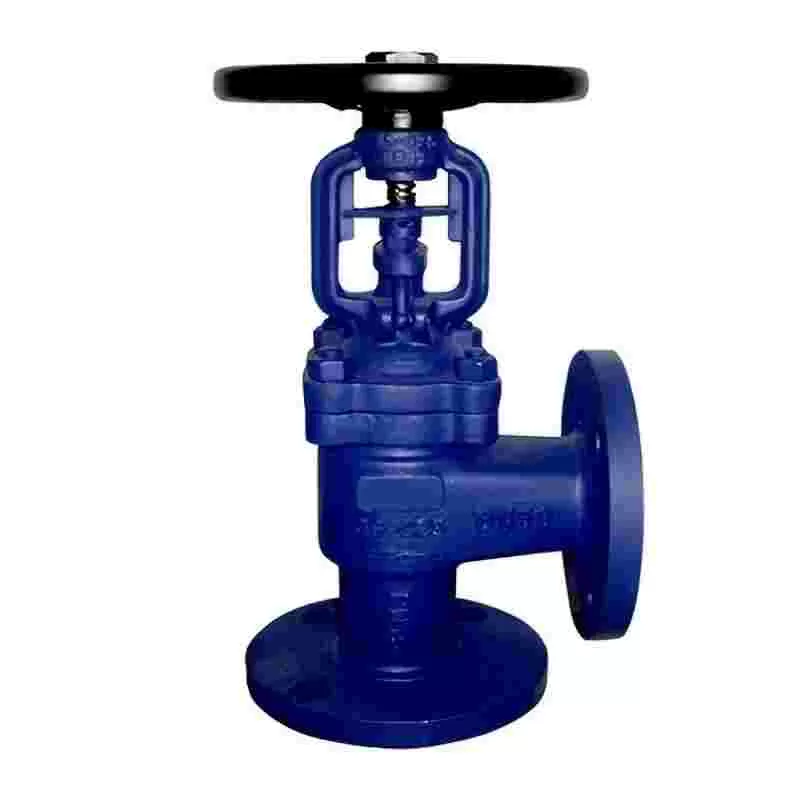

WJ44H German standard right Angle bellows globe valve,German standard right Angle bellows globe valve

WJ44H German standard right Angle bellows globe Valve Product introduction:

The valve is a new type of right-angle globe valve designed to control medium opening and closing. In view of the system improvement of the existing type of globe valve, such as complex structure, restricting sealing factors and manufacturing costs, through the effective combination of hand wheel, valve cover, valve stem seal ring, core valve stem and valve body, especially the application of valve stem seal ring and core valve stem, the problems of upper seal and valve port seal, simplify the structure and reduce the manufacturing cost are solved. The utility model is mainly applicable to low-pressure cut-off water supply and drainage systems.

Suitable for the nominal pressure PN1.6 ~ 16MPa, working temperature -29 ~ 350℃ petroleum, chemical, pharmaceutical, fertilizer, power industry and other working conditions of the pipeline, cut off or connect the pipeline medium.

WJ44H German standard right Angle bellows globe valve design features:

1) The product has reasonable structure, reliable sealing, excellent performance and beautiful appearance

2) Sealing surface surfacing Co based cemented carbide, wear resistance, corrosion resistance, good friction performance, long service life

3) Valve stem tempering and surface nitriding treatment, with good anti-corrosion and anti-friction properties

4) Double seal, more reliable performance

5) Valve stem lifting position indication, more intuitive

6) Parts material, flange and butt welding number size can be reasonably selected according to actual working conditions or user requirements to meet various engineering needs

Suitable for the nominal pressure PN1.6 ~ 16MPa, working temperature -29 ~ 350℃ petroleum, chemical, pharmaceutical, fertilizer, power industry and other working conditions of the pipeline, cut off or connect the pipeline medium.

Packing of Standard Packing:

Typical bulk packaging includes palletized plastic 5 gallon/25 kg. pails, fiber and steel drums to 1 ton super sacks in full container (FCL) or truck load (T/L) quantities. Research and sample quantities and hygroscopic, oxidizing or other air sensitive materials may be packaged under argon or vacuum. Solutions are packaged in polypropylene, plastic or glass jars up to palletized 470 gallon liquid totes Special package is available on request. E FORUs’  is carefully handled to minimize damage during storage and transportation and to preserve the quality of our products in their original condition
