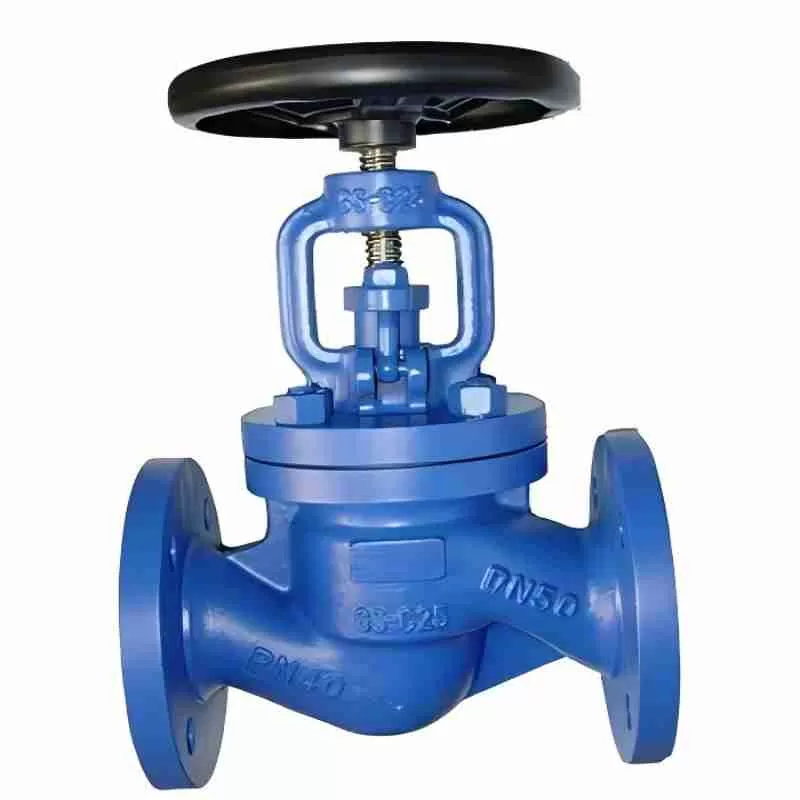

WJ41H Heat conduction oil bellows stop valve. Heat conduction oil bellows stop valve,bellows stop valve

J41H Heat Conduction oil Bellows globe Valve Product Introduction:

Suitable for nominal pressure PN1.6 ~ 16MPa, working temperature -29 ~ 350℃ flammable, explosive, highly toxic, toxic fluid, high temperature heat conduction oil, liquid ammonia and other media.

Widely used in: petrochemical, chemical fiber textile, plastic paper, electric power, steel, printing and dyeing rubber, natural gas and other gas systems, the performance is safe and reliable, widely used in ethylene glycol and other industrial fluids. The driving mode is manual, gear transmission, electric, pneumatic and so on.

Design features:

a. Product structure is reasonable, reliable sealing, dual durable bellows seal design (bellows + packing), to ensure zero leakage of the valve stem. Improve plant equipment safety with no fluid loss. And meet the international sealing standards.

b. Sealing surface surfacing Co based cemented carbide, wear resistance, corrosion resistance, good anti-friction performance, long service life.

c. Valve stem tempering and surface nitriding treatment, with good anti-corrosion and anti-friction properties; Valve stem lifting position indication, more intuitive.

Product implementation standards:

① Structure form: BB-BG-0S&Y

② Design standard: GB12235

③ Structure length: GB12221

④ Connection flange: GB9113, JB/T79, HG20596

⑤ Test and inspection: JB/T9092, GB/T13927

Suitable for nominal pressure PN1.6 ~ 16MPa, working temperature -29 ~ 350℃ flammable, explosive, highly toxic, toxic fluid, high temperature heat conduction oil, liquid ammonia and other media

Widely used in: petrochemical, chemical fiber textile, plastic paper, electric power, steel, printing and dyeing rubber, natural gas and other gas systems, the performance is safe and reliable, widely used in ethylene glycol and other industrial fluids. The driving mode is manual, gear transmission, electric, pneumatic and so on.

Packing of Standard Packing:

Typical bulk packaging includes palletized plastic 5 gallon/25 kg. pails, fiber and steel drums to 1 ton super sacks in full container (FCL) or truck load (T/L) quantities. Research and sample quantities and hygroscopic, oxidizing or other air sensitive materials may be packaged under argon or vacuum. Solutions are packaged in polypropylene, plastic or glass jars up to palletized 470 gallon liquid totes Special package is available on request. E FORUs’  is carefully handled to minimize damage during storage and transportation and to preserve the quality of our products in their original condition
