Product Code : VF--JCC-J20-CU
Pressure rating: PN1.0-10.0MPa CLASS150-600Lb
Nominal diameter: DN200-DN350
Corresponding model: J41W-150Lb(Ti), J41W-300Lb(Ti), J41W-600Lb(Ti), J941W-10TI, J941W- 16Ti, J941W-25Ti, J941W-40Ti, J941W-63Ti, J941W-100Ti, J941W-150Lb(Ti), J941W-300Lb (Ti), J941W-600Lb(Ti)
Applicable medium: oxidizing corrosive medium
Technical specification
Design standard: GB/T12235, ASME B16.34, BS1873
Structure length: GB/T12221, ASME B16.10
Connection flange: HG, GB, JB, API, ANSI, ISO, BS, DIN, NF, JIS
Test standards: JB/T9092, GB/T13927, API598
Bulk material
Valve body: TA1, TA2, TA10, Gr2, Gr3
Disc: TA1, TA2, TA10, Gr2, Gr3
Valve stem: TA1, TA2, TA10, TC4, Gr2, Gr3, Gr5
Please contact us if you need customized services. We will contact you with the price and availability in 24 hours.
| Product | Product Code | Purity | Size | Contact Us |

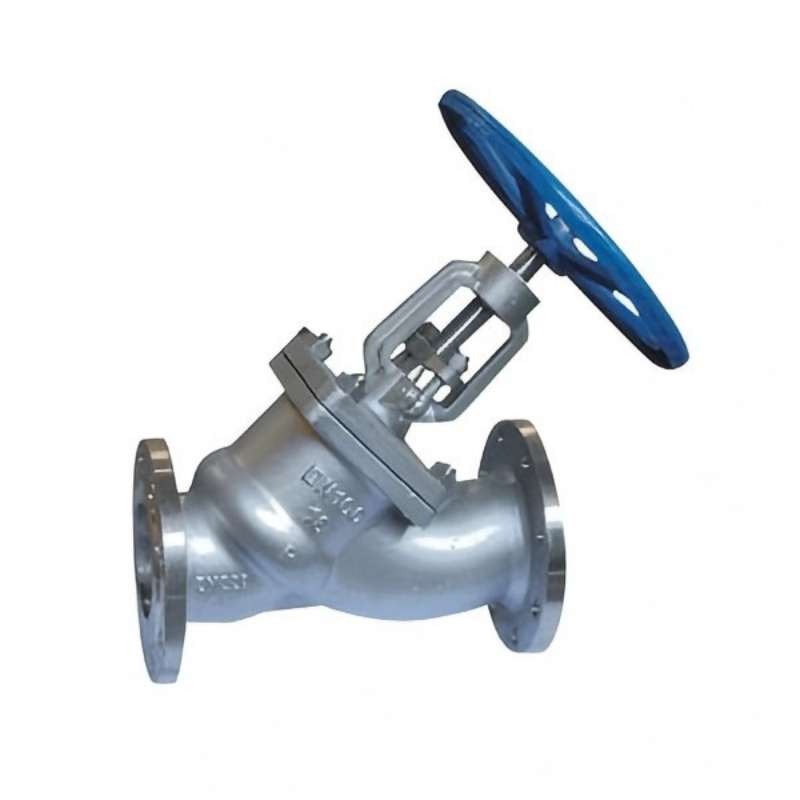

Titanium globe valve refers to the valve where the closing part (disc) moves along the center line of the seat. According to this form of movement of the valve disc, the change of the valve seat port is proportional to the stroke of the valve disc. Because the stem opening or closing stroke of the titanium stop valve is relatively short, and has a very reliable cutting function, and because the change of the valve seat orifice is directly proportional to the stroke of the valve disc, it is very suitable for the adjustment of the flow rate. Therefore, titanium globe valves are very suitable for cutting or regulating and throttling use.
Titanium globe valve mainly uses titanium metal materials in strong corrosion environment oxidation film has good stability and self-passivation ability, this characteristic to resist a variety of harsh conditions strong corrosion.
It also has the following characteristics:
1, compact structure, reasonable design, good valve rigidity, smooth channel, small flow coefficient.
2, using flexible graphite and PTFE packing, reliable sealing, light and flexible operation.
3, the driving mode is split, electric, gear gas transmission.
It has been widely used in chlor-alkali industry, soda ash industry, pharmaceutical industry, fine industry, basic organic acid and inorganic salt production, nitric acid industry and so on.
