Self-sealing flanged globe valve，Flanged globe valve，globe valve

Product characteristics

1, compact structure, good opening and closing, small height, easy maintenance.

2, the cavity adopts self-sealing structure, the higher the pressure, the better the sealing.

3, with anti-cavitation wear resistance, corrosion resistance, erosion resistance, long service life.

4, sealing surface is hard alloy not easy to wear, abrasion, sealing performance is good, long life.

5, the valve body valve cover is made of the whole forging, high strength, beautiful shape, reliable material.

6, the cavity adopts pressure self-tightening sealing structure, the higher the pressure of the inner cavity, the better the sealing performance.

7, the valve stem surface by super dense wear-resistant treatment, wear resistance, small opening and closing friction, to ensure that the product without leakage.

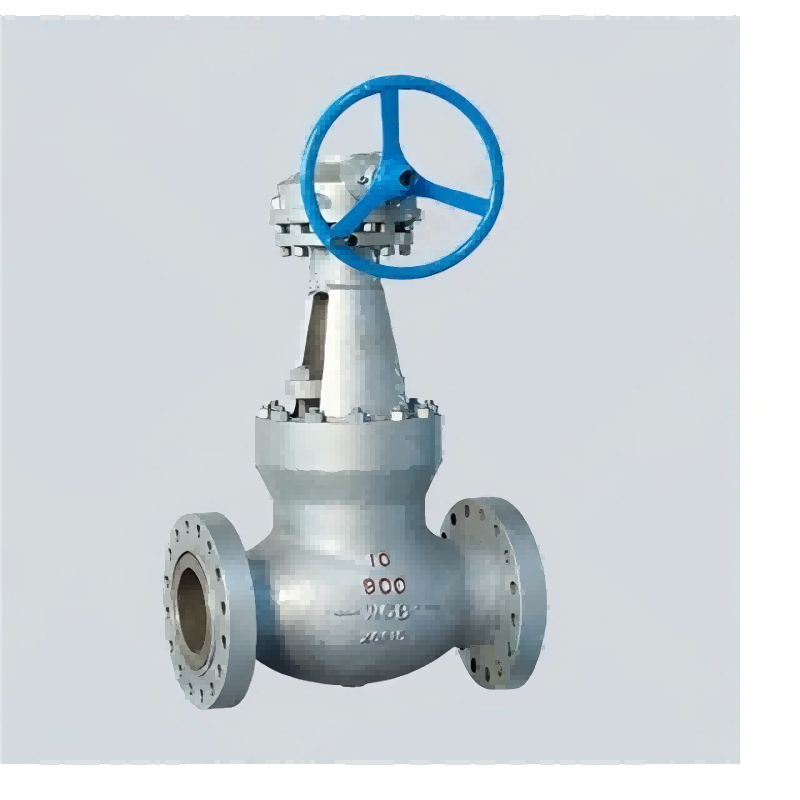

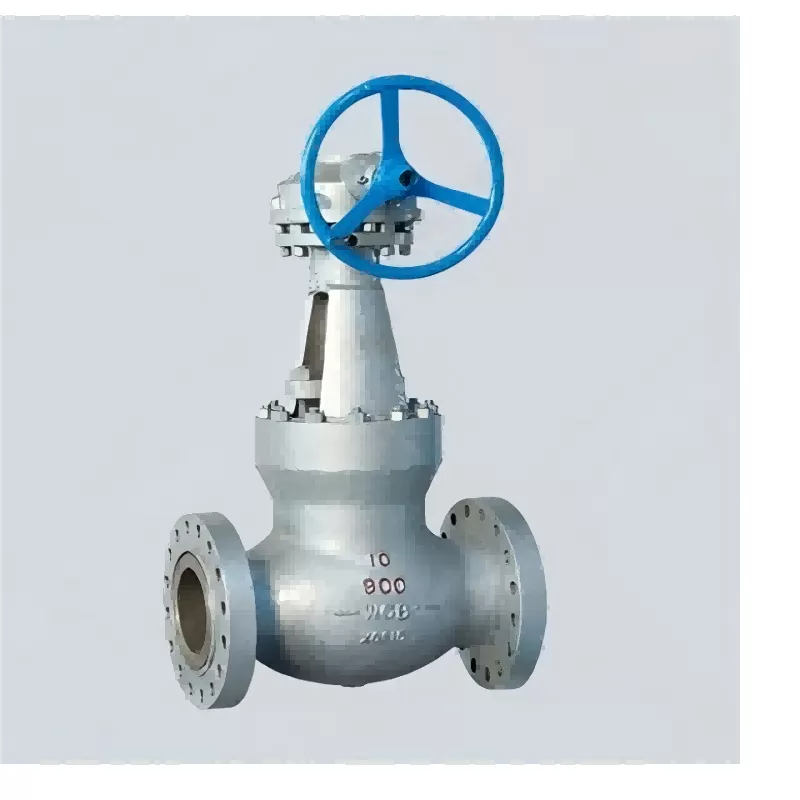

Self-sealing flanged globe valve adopts pressure self-tightening type valve cover design, the valve body and the valve cover are connected with threads, and the internal pressure self-sealing ring is sealed. With high pressure, it is also designed to withstand high temperature, which is suitable for high temperature and high pressure pipelines in thermal power plants, nuclear power plants and petrochemical systems. The small-caliber high-pressure globe valve can be replaced by a needle valve, which also has flow regulation or pressure regulation, but the adjustment accuracy is not high, and the pipe diameter is relatively small.
