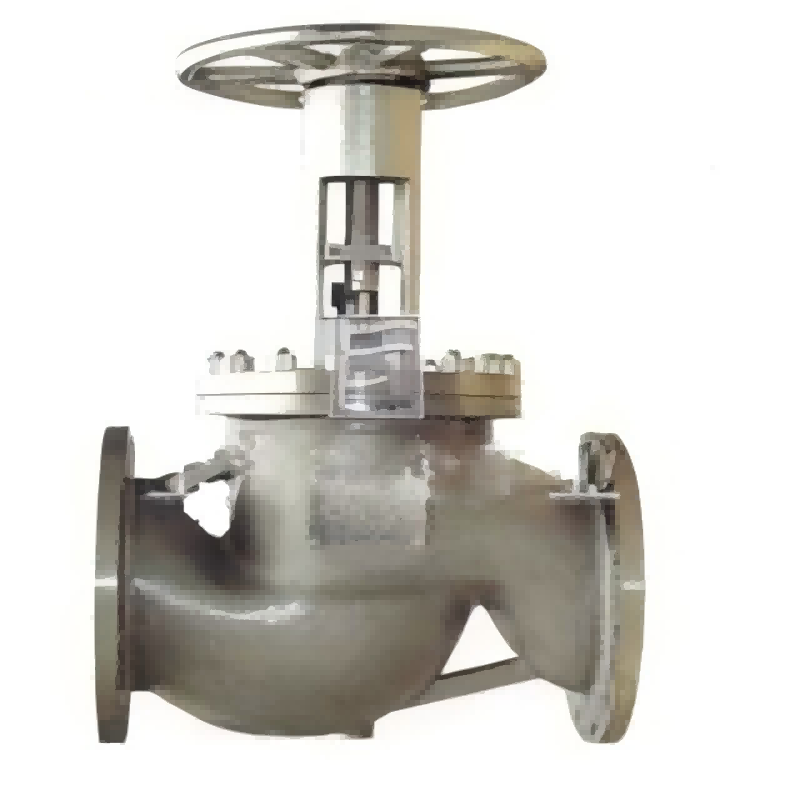

Large diameter titanium globe valve, titanium globe valve,globe valve

Product characteristics

The titanium material selected for the large diameter titanium globe valve is a highly chemically active metal. It has excellent corrosion resistance to many corrosive media. The reason is that titanium has a good affinity with oxygen, which is easy to react with oxygen and generate a strong and dense blunt oxide film on its surface. The large diameter titanium globe valve produced by Xigao Valve Group has the advantages of compact structure, reasonable design, good valve rigidity, smooth channel and small flow negative coefficient. Drive mode can be split, electric, gear transmission

Technical specification

Design standard: GB/T12235, ASME B16.34, BS1873

Structure length: GB/T12221, ASME B16.10

Connection flange: HG, GB, JB, API, ANSI, ISO, BS, DIN, NF, JIS

Test standards: JB/T9092, GB/T13927, API598

Bulk material

Valve body: TA1, TA2, TA10, Gr2, Gr3

Disc: TA1, TA2, TA10, Gr2, Gr3

Valve stem: TA1, TA2, TA10, TC4, Gr2, Gr3, Gr5

It has been widely used in chlor-alkali industry, soda ash industry, pharmaceutical industry, fine industry, basic organic acid and inorganic salt production, nitric acid industry and so on

Packing of Standard Packing:

Typical bulk packaging includes palletized plastic 5 gallon/25 kg. pails, fiber and steel drums to 1 ton super sacks in full container (FCL) or truck load (T/L) quantities. Research and sample quantities and hygroscopic, oxidizing or other air sensitive materials may be packaged under argon or vacuum. Solutions are packaged in polypropylene, plastic or glass jars up to palletized 470 gallon liquid totes Special package is available on request. E FORUs’  is carefully handled to minimize damage during storage and transportation and to preserve the quality of our products in their original condition
