Product Code : VF--JCC-J20-CU

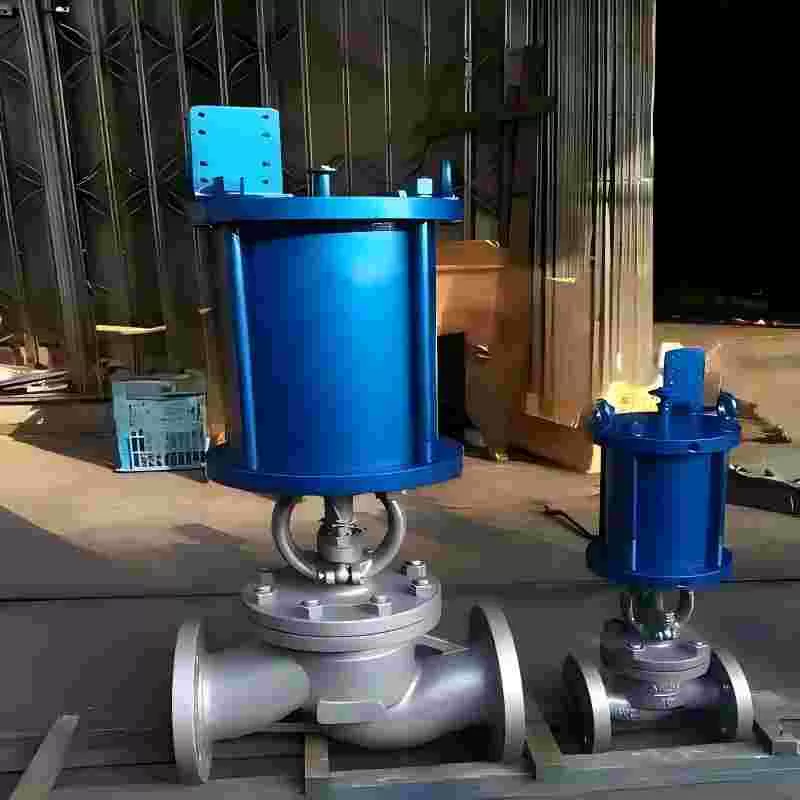

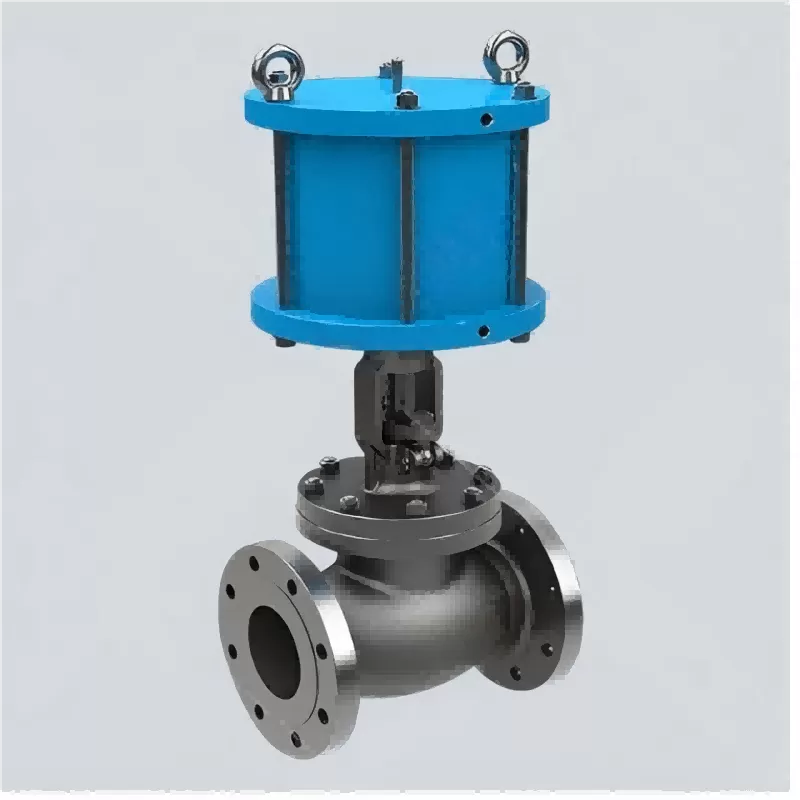

Product name: pneumatic globe valve
Product model: J641H
Nominal diameter: DN15 ~ DN300
Structure form: cut-off type
Nominal pressure: 1.6MPa ~ 16.0MPa
Connection mode: flange, welding
Applicable temperature: -29ºC to +550ºC
Driving mode: pneumatic
Body material: WCB, carbon steel, chromium molybdenum vanadium steel, stainless steel
Manufacturing standards: GB, DIN, API, ANSI
Applicable media: water, oil, steam, gas
Please contact us if you need customized services. We will contact you with the price and availability in 24 hours.
| Product | Product Code | Purity | Size | Contact Us |
J641H pneumatic globe valve adopts double acting cylinder, using upper chamber intake or lower chamber intake to remotely control the valve, easy to operate and flexible. Cylinder using medium: compressed air, nitrogen. Simple structure, convenient manufacture and maintenance; Small working trip, short opening and closing time; The closing body (valve disc) and the sealing surface of the seat are sealed by a cone, with small closing force, erosion resistance and reliable sealing. The seat can be a replaceable seat, and can be combined with the sealing surface material of the closing part to meet the requirements of the working condition and extend the service life.
Working principle
Most of the valves using compressed air as the power source are controlled remotely, and the action instructions are triggered manually or automatically by the main control room to make the inlet and exhaust solenoid valves operate and supply and discharge compressed air to the actuator. The compressed air acts on the piston or diaphragm to overcome the friction of the valve action and the spring elasticity on the valve stem, thereby depressing (for the air loss open valve) or lifting (for the air loss close valve) the valve stem and driving the spool up and down to open or close the valve.
Product characteristics
1, double acting cylinder easy to operate, flexible.
2, the sealing surface is sealed with cone, small closing force, erosion resistance, reliable sealing.
3, the valve stem after tempering and surface nitriding treatment, has good corrosion resistance and abrasion resistance.
4, the body material variety is complete, fillers, gaskets can be reasonably selected according to the actual working conditions or user requirements, can be applied to a variety of pressure, temperature and medium conditions
J641H pneumatic globe valve adopts double acting cylinder, using upper chamber intake or lower chamber intake to remotely control the valve, easy to operate and flexible. Cylinder using medium: compressed air, nitrogen. Simple structure, convenient manufacture and maintenance; Small working trip, short opening and closing time; The closing body (valve disc) and the sealing surface of the seat are sealed by a cone, with small closing force, erosion resistance and reliable sealing. The seat can be a replaceable seat, and can be combined with the sealing surface material of the closing part to meet the requirements of the working condition and extend the service life
