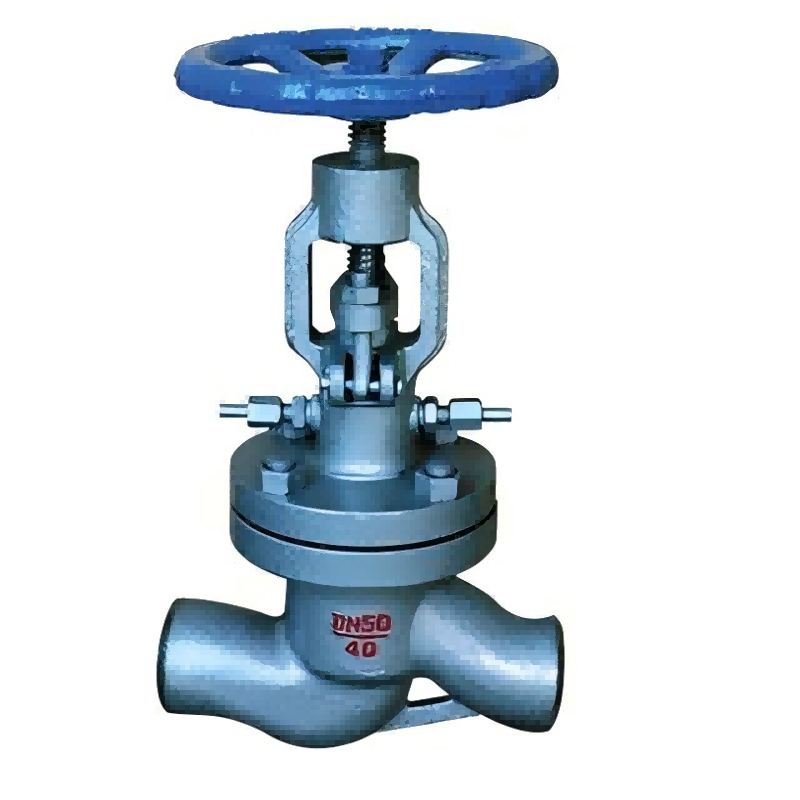

J61H water seal stop valve，Stop valve，

Product structure characteristics

1. The product is designed and manufactured according to the standard GB12235, with novel structure, reasonable material selection and beautiful appearance. The connecting end is flanged and welded, which can be connected according to different requirements of users.

2. The stuffing box is designed as a water seal structure, access to 0.6~1.6Mpa water filler, small friction, good sealing, the whole system can be isolated from the atmosphere, to ensure good air tightness.

3. After tempering and surface nitriding treatment, the valve stem has good corrosion and abrasion resistance.

4. Compact structure, flexible operation, easy maintenance, long service life.

5. The reverse seal is made of stainless steel threaded sealing seat or austenitic stainless steel surfacing, and the reverse seal is reliable. Packing replacement and maintenance can be carried out without shutdown, convenient and fast without affecting the system operation

Water seal globe valve is suitable for nominal pressure PN2.5 ~ 4.0Mpa, working temperature 0 ~ 425℃ thermal power station return water condensing system and petroleum, chemical industry requirements and atmospheric isolation of the pipeline, cut off or connect the medium, the applicable medium is: water, oil, steam and non-corrosive gas.

Packing of Standard Packing:

Typical bulk packaging includes palletized plastic 5 gallon/25 kg. pails, fiber and steel drums to 1 ton super sacks in full container (FCL) or truck load (T/L) quantities. Research and sample quantities and hygroscopic, oxidizing or other air sensitive materials may be packaged under argon or vacuum. Solutions are packaged in polypropylene, plastic or glass jars up to palletized 470 gallon liquid totes Special package is available on request. E FORUs’  is carefully handled to minimize damage during storage and transportation and to preserve the quality of our products in their original condition.
