Product Code : VF--JCC-J62-CU
Valve body; A105
Applicable media; Water, steam, oil, etc., nitric acid, acetic acid, etc
Applicable temperature; -29 ° C to 550 ° C
Suitable for water and oil quality control, with high temperature resistance, high pressure resistance.
Please contact us if you need customized services. We will contact you with the price and availability in 24 hours.
| Product | Product Code | Purity | Size | Contact Us |

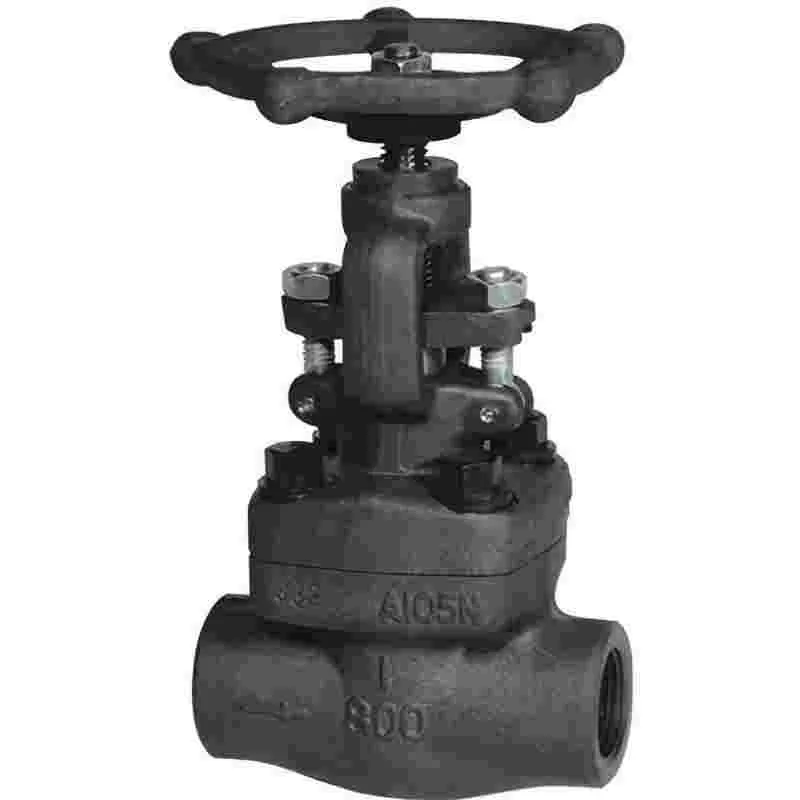

J61 Forged steel welding globe Valve Product introduction:
Welded structure is used to connect with the pipeline. Sealing surface is not easy to wear, abrasion, sealing performance is good, long life. Compact structure, good opening and closing, small height, easy maintenance. Suitable for water and oil quality control, with high temperature resistance, high pressure resistance.
Three cap designs for forged steel globe valves:
The first is the bolt-type valve cover, the valve body and the valve cover are connected with bolts and nuts, and the winding gasket (316 clips of flexible graphite) is sealed. Customers have special requirements can also use metal ring connection.
The second design form is welded valve cover, according to this design form of the valve, the valve body and the valve cover with thread connection, fully welded seal. Penetration welding can also be used when customers have special requirements.
The third is the self-sealing valve cover, according to this design form of the valve, the valve body and the valve cover are connected with threads, and the internal pressure self-sealing ring is sealed.
Product implementation standards:
Designed and manufactured in accordance with API602, BS5352 and ASME B16.34.
Verify and test according to API 598, mark according to MSS-SP-25.
Welded structure is used to connect with the pipeline. Sealing surface is not easy to wear, abrasion, sealing performance is good, long life. Compact structure, good opening and closing, small height, easy maintenance. Suitable for water and oil quality control, with high temperature resistance, high pressure resistance.
Packing of Standard Packing:
Typical bulk packaging includes palletized plastic 5 gallon/25 kg. pails, fiber and steel drums to 1 ton super sacks in full container (FCL) or truck load (T/L) quantities. Research and sample quantities and hygroscopic, oxidizing or other air sensitive materials may be packaged under argon or vacuum. Solutions are packaged in polypropylene, plastic or glass jars up to palletized 470 gallon liquid totes Special package is available on request. E FORUs’ is carefully handled to minimize damage during storage and transportation and to preserve the quality of our products in their original condition
