Product Code : VF--JCC-J27-CU

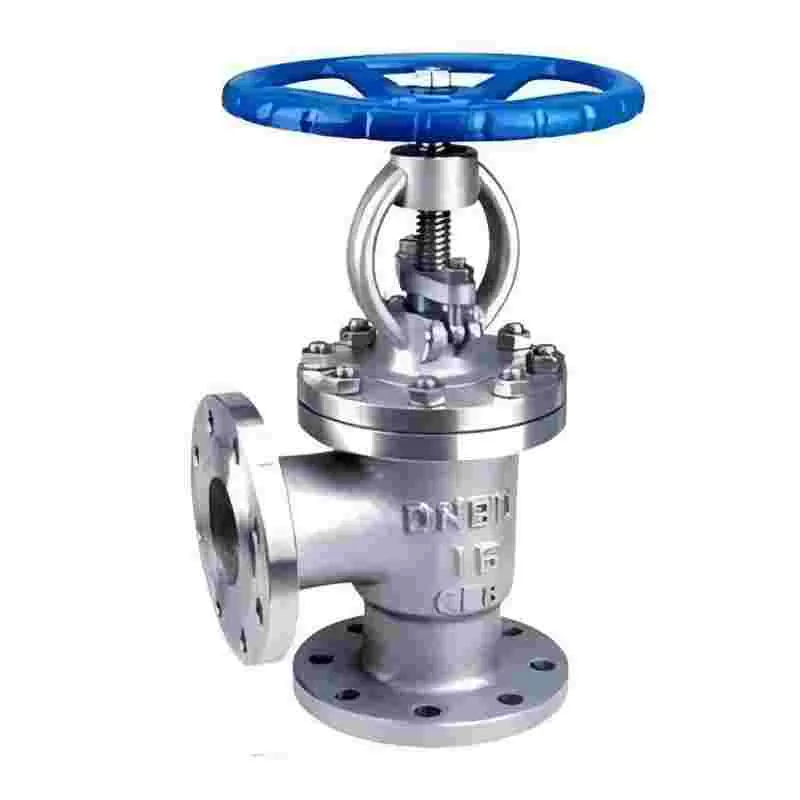

J44H Angle globe valve design features:
① Simple structure, convenient manufacturing and maintenance.
② Small working trip, short opening and closing time.
③ Good sealing, small friction between the sealing surface, long life.
Nominal diameter; 50-500.
Nominal pressure; 16 and 32
Applicable temperature (℃); 425 or less
Applicable media; Water, oil, hydrogen chloride. Nitrogen and hydrogen mixture
Lye, liquid ammonia, hydrogen chloride
Please contact us if you need customized services. We will contact you with the price and availability in 24 hours.
| Product | Product Code | Purity | Size | Contact Us |
J44H Angle globe Valve Product introduction:
The opening and closing part is a plug shaped valve disc, the sealing surface is plane or cone, and the valve disc moves in a straight line along the center line of the fluid. Angle globe valve is also known as Angle valve, the movement form of the valve stem, there are lifting rod type (valve stem lifting, handwheel does not lift), there are also lifting rotary rod type (handwheel and valve stem rotation lifting, nut on the valve body).
The Angle globe valve is only suitable for full opening and full closing, and is not allowed to be adjusted and throttled. The globe valve is a forced seal valve, so when the valve is closed, pressure must be applied to the valve disc to force the sealing surface of the globe valve not to leak. When the medium enters the valve from below the valve disc, the resistance needed to be overcome by the operating force is the friction force of the valve stem and the filler and the thrust generated by the pressure of the medium. The force of closing the "Angle globe valve" is larger than that of opening the "Angle globe valve", so the diameter of the valve stem is larger, otherwise the failure of the valve stem top bending will occur.
Angle globe valve is a commonly used cut-off valve, mainly used to connect or cut off the medium in the pipeline, generally not used for regulating flow. The applicable pressure and temperature range of the globe valve products is large, but it is generally used for medium and small caliber pipelines, and is suitable for steam, oil, water and other media ≤425 ° C.
Angle globe valve is a commonly used cut-off valve, mainly used to connect or cut off the medium in the pipeline, generally not used for regulating flow. The applicable pressure and temperature range of the globe valve products is large, but it is generally used for medium and small caliber pipelines, and is suitable for steam, oil, water and other media ≤425 ° C.
