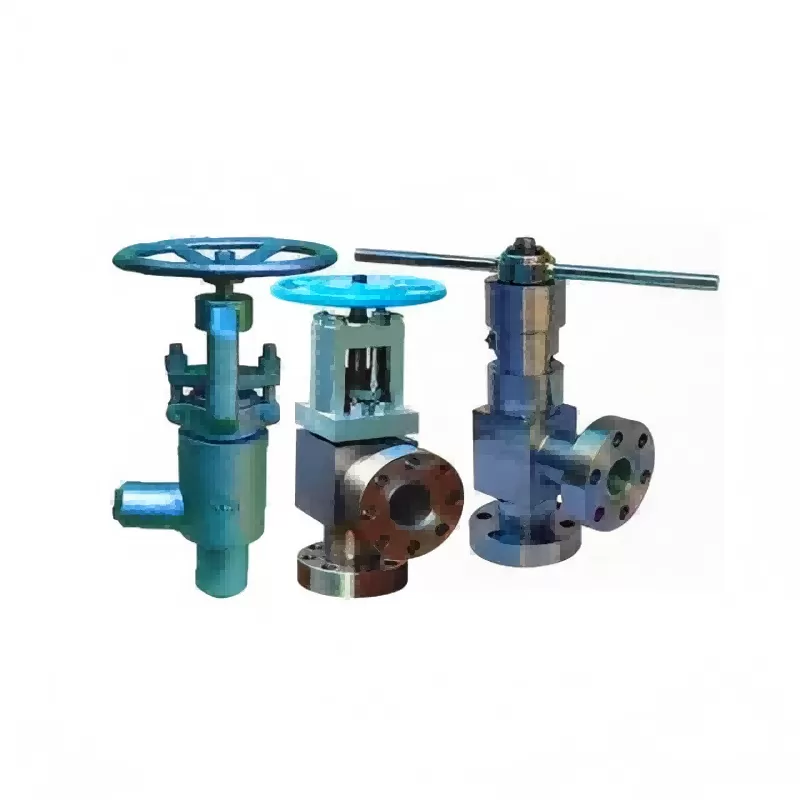

J44 J47 High pressure Angle stop valve, High pressure Angle stop valve,stop valve

J44 J47 High pressure Angle globe Valve Product introduction:

The utility model relates to a commonly used cut-off valve, which is mainly used to connect or cut off the medium in the pipeline, generally used for medium and small diameter pipelines. Applicable pressure :1.6Mpa-32Mpa, applicable temperature: ≤425℃, applicable medium: water, oil, steam, etc.

Product implementation standards:

1. Design and manufacture: GB12233

2. Flange size: GB9113

3. Structure length: GB12221

4. Test and experiment: GB/T13927

J44 J47 High pressure Angle globe valve design features:

a. Composite packing, reliable sealing.

b. Valves can be installed on horizontal and vertical pipelines.

c. The seal adopts the structure of live seat and surfacing cemented carbide.

d. Reference API and related standardized design, novel structure.

e. The valve disc has several holes connected with the upper chamber to achieve self-balance of upper and lower pressure.

The utility model relates to a commonly used cut-off valve, which is mainly used to connect or cut off the medium in the pipeline, generally used for medium and small diameter pipelines. Applicable pressure :1.6Mpa-32Mpa, applicable temperature: ≤425℃, applicable medium: water, oil, steam, etc.

Packing of Standard Packing:

Typical bulk packaging includes palletized plastic 5 gallon/25 kg. pails, fiber and steel drums to 1 ton super sacks in full container (FCL) or truck load (T/L) quantities. Research and sample quantities and hygroscopic, oxidizing or other air sensitive materials may be packaged under argon or vacuum. Solutions are packaged in polypropylene, plastic or glass jars up to palletized 470 gallon liquid totes Special package is available on request. E FORUs’  is carefully handled to minimize damage during storage and transportation and to preserve the quality of our products in their original condition
