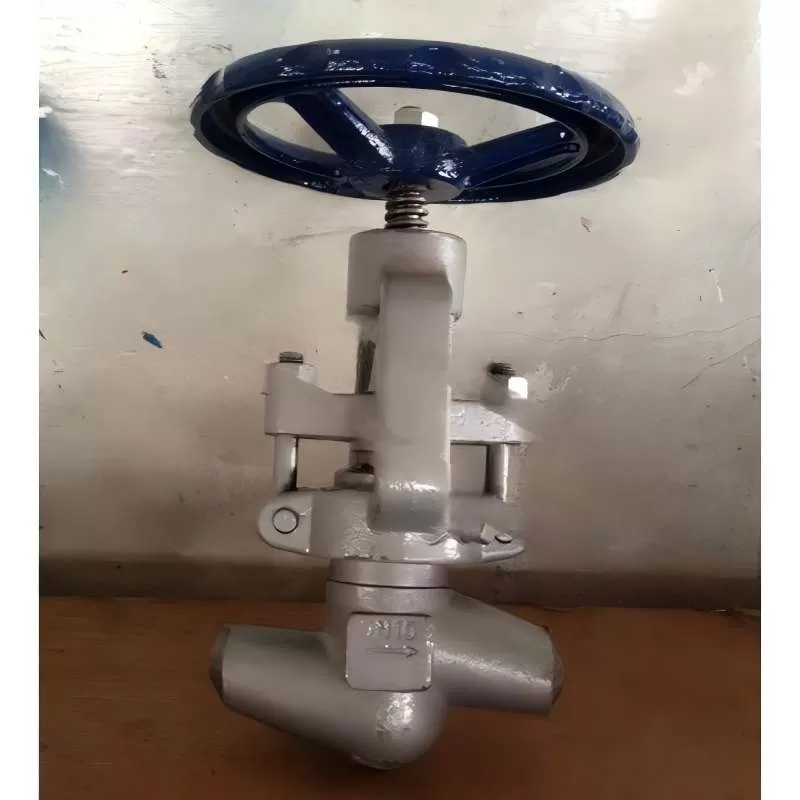

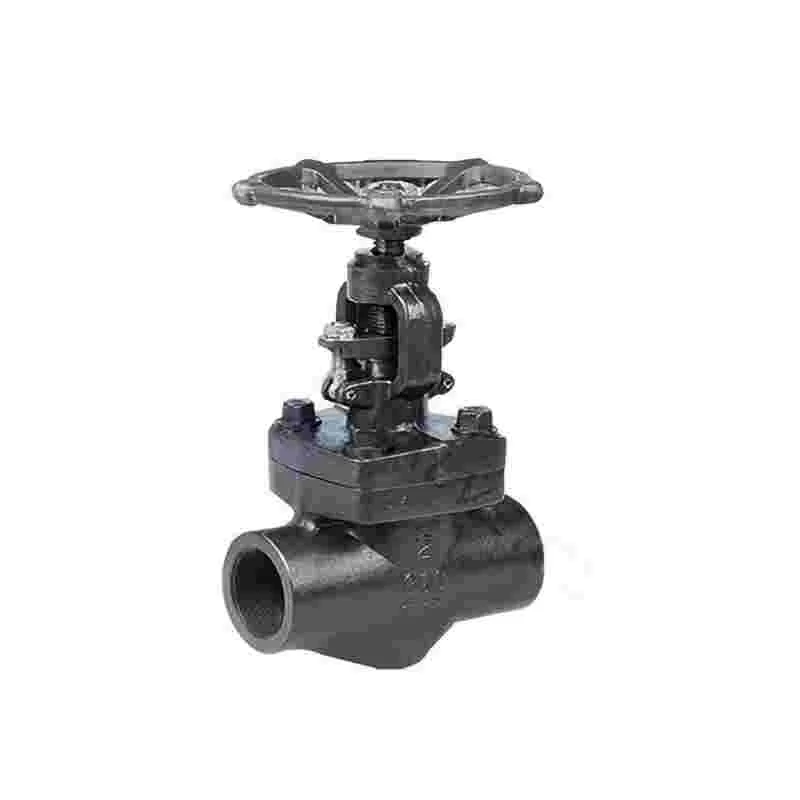

J11 Forged steel internal thread stop valve,Forged steel internal thread stop valve, stop valve

Forged steel globe valve three types of valve cover:

The first is the bolted valve cover, according to the design of the valve in this form, the valve body and the valve cover are bolted. Wound gaskets (made of 304 clips of flexible graphite) or are sealed with metal ring connections.

The second type is welded valve cover, according to the design of the valve in this form, the valve body and the valve cover are connected with threads, and the whole welded seal. Full penetration connection can also be used when customers have special requirements.

The third is the pressure self-tightening valve cover, according to the design of the valve in this form, the valve body and the valve cover are connected with threads, and the internal pressure self-sealing ring is sealed.

Product implementation standards:

a. Design and manufacture according to BS5352, MSS SP-118;

b. Socket size according to ANSI B16.11, JB/T1751;

c. Thread end size according to ANSI B1.20.1, JB/T7306;

d. Welding end size according to ANSI B16.25, JB/T12224;

e. Flange end size according to ANSI B16.5, JB79;

f. Valve inspection and test API 598, GB/T13927, JB/T9092;

J11 forged steel internal thread globe valve design features:

1) The valve and the pipeline are connected with internal thread structure.

2) Sealing surface is not easy to wear, abrasion, good sealing performance, long life.

3) Compact structure, good opening and closing, small height, easy maintenance.

4) The direction of the medium into and out of the valve can be selected according to the direction of the sign, and has a one-way cut-off effect.

5) Suitable for water, steam, oil quality control road, with high temperature resistance, high pressure resistance.

Applicable to domestic steel works, petroleum, chemical, gas, boiler, paper, textile, medicine, food, ship, water supply and drainage, energy, polysilicon, power and other industries industrial pipeline.
