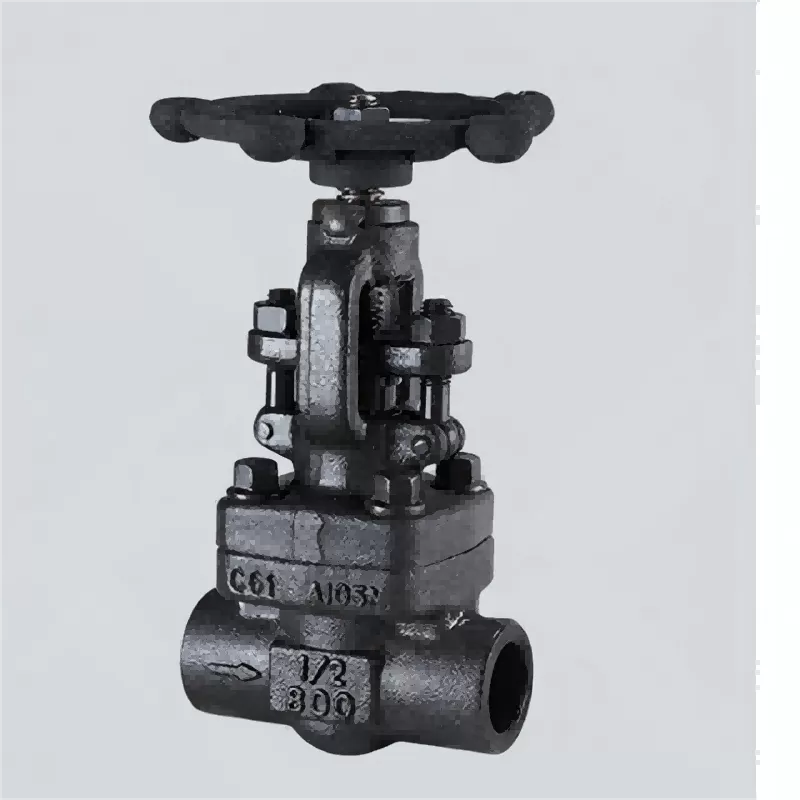

Forged steel internal thread, socket welded stop valve，stop valve

Structural characteristics

1, full diameter or reduced diameter;

2, the pole with support;

3. Packing press sleeve with automatic aligning at both ends;

4, bolt type valve cover sealed with wound gasket, threaded sealing welded valve cover, or self-sealing valve cover

5, body reverse seal;

6, socket welding ANSI/ASME B16.11;

7, thread end (NPT end) according to ANSI/ASME B1.20.1.

The stem opening or closing stroke of the forged steel internal thread and socket welding globe valve is relatively short, and has a reliable cutting function. During the opening and closing process, due to the friction between the disc and the valve body sealing surface, the friction is smaller than that of the gate valve, so it is wear-resistant. The opening height is generally only 1/4 of the diameter of the valve seat channel, so it is much smaller than the gate valve. Usually, there is only one sealing surface on the valve body and valve disc, which is easy to maintain, and the stop valve should be selected on the pipeline or device of high temperature and high pressure media. Such as thermal power plant, nuclear power plant, petrochemical system of high temperature, high pressure pipeline, can also be applied to water, steam, oil, nitric acid and other media

Packing of Standard Packing:

Typical bulk packaging includes palletized plastic 5 gallon/25 kg. pails, fiber and steel drums to 1 ton super sacks in full container (FCL) or truck load (T/L) quantities. Research and sample quantities and hygroscopic, oxidizing or other air sensitive materials may be packaged under argon or vacuum. Solutions are packaged in polypropylene, plastic or glass jars up to palletized 470 gallon liquid totes Special package is available on request. E FORUs’  is carefully handled to minimize damage during storage and transportation and to preserve the quality of our products in their original condition.
