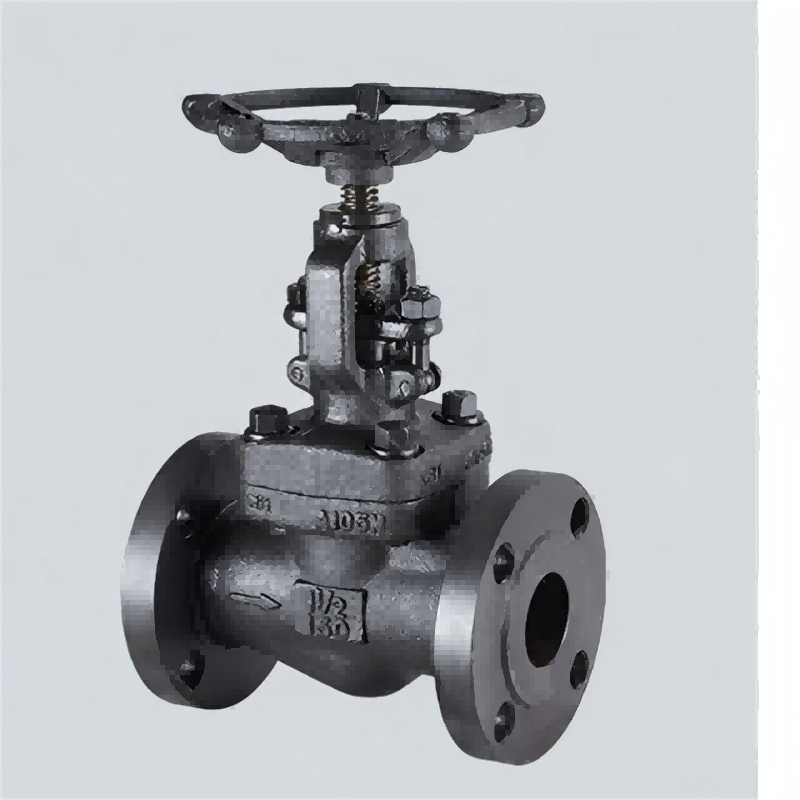

Forged steel flanged globe valve， Forged Steel Globe Valves，Stop valve

Product characteristics

1, the structure is simple than gate valve, manufacturing and maintenance are more convenient.

2, sealing surface is not easy to wear and abrasion, good sealing, there is no relative sliding between the valve disc and the valve body sealing surface when opening and closing, so wear and abrasion are not serious, good sealing performance, long service life.

3, when opening and closing, the valve flap stroke is small, so the height of the stop valve is smaller than the gate valve, but the structural length is longer than the gate valve.

4, the opening and closing torque is large, the opening and closing is more laborious, and the opening and closing time is the principal.

5, the fluid resistance is large, because the medium channel in the valve body is more tortuous, the fluid resistance is large, and the power consumption is large.

6, the medium flow direction, nominal pressure PN≤16MPa, generally used downstream, the medium from the direction of the valve disc upstream; Nominal pressure PN≥20MPa, the general use of counter-flow, the medium from the direction of the valve disc down to increase the sealing performance.

7. The valve disc is often eroded when fully opened.

The stem opening or closing stroke of the forged steel flange stop valve is relatively short, and has a very reliable cutting function. During the opening and closing process, the friction between the disc and the body sealing surface is smaller than that of the gate valve, so it is wear-resistant. The opening height is generally only 1/4 of the diameter of the seat channel, so it is much smaller than the gate valve. Usually, there is only one sealing surface on the valve body and valve disc, which is easy to maintain, and the stop valve should be selected on the pipeline or device of high temperature and high pressure media. Such as thermal power plant, nuclear power plant, petrochemical system of high temperature, high pressure pipeline, can also be applied to water, steam, oil, nitric acid and other media.

Packing of Standard Packing:

Typical bulk packaging includes palletized plastic 5 gallon/25 kg. pails, fiber and steel drums to 1 ton super sacks in full container (FCL) or truck load (T/L) quantities. Research and sample quantities and hygroscopic, oxidizing or other air sensitive materials may be packaged under argon or vacuum. Solutions are packaged in polypropylene, plastic or glass jars up to palletized 470 gallon liquid totes Special package is available on request. E FORUs’  is carefully handled to minimize damage during storage and transportation and to preserve the quality of our products in their original condition.
