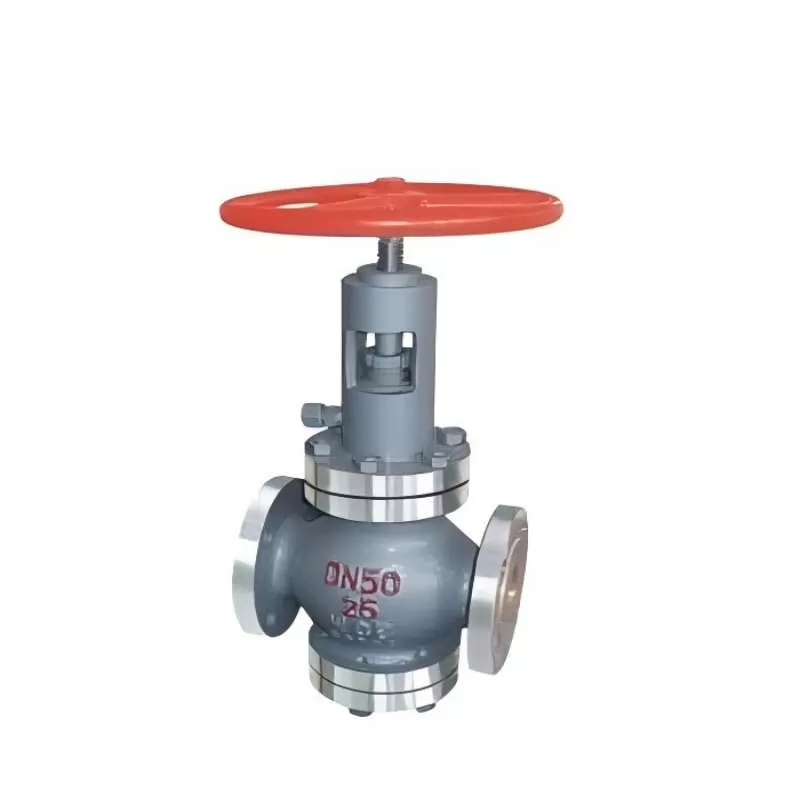

FJ41 throttle cut-off vent valve; throttle cut-off vent valve

FJ41 Throttle Cut-off Valve Introduction:

Widely used in oil, natural gas, gas, liquefied petroleum gas and oil refining, airport, chemical industry, oil and gas storage and transportation pipeline as a closed-circuit device.

Design features:

The valve is a new type of throttling, cutoff, vent products, the valve adopts cage type fan legion throttling, with multiple throttling effect, throttling effect is obvious, reliable sealing, easy operation and maintenance and so on.

The valve adopts double seal (hard and soft seal) to make the seal reliable, the cemented carbide cover can be more resistant to airflow erosion and wear, and the double seal can achieve zero leakage under the condition of high pressure gas medium. Long service life of valve.

The sealing surface of the valve seat is sealed with a taper, which is conducive to cleaning the dirt attached to the sealing surface of the valve itself.

The valve flap is provided with a balance hole and piston seal, which ensures stable operation under the condition of full pressure difference, light and flexible opening, and small opening and closing torque.

Throttling cut-off vent valve and double-acting throttle valve have both throttling and cut-off (seal with zero leakage) functions. The throttling part is separated from the sealing surface to reduce the erosion of air flow to the seal

The double-acting throttle stop valve also has a multi-stage throttle function, and the throttle pressure difference is large, which can be applied to the throttle and cut-off under high pressure.

The packing adopts V-shaped packing structure with self-sealing ability, no adjustment is required, and the opening and closing are extremely light. An auxiliary sealing grease injection structure is provided at the stuffing box to make the sealing performance of the valve packing reliable.

The valve can be repaired online, and the pipeline can be replaced with a series of wearing parts such as packing under pressure.

The valve is provided with a large blowdown hole at the bottom of the valve, which should be opened if necessary to clean the dirt in the valve.

Widely used in oil, natural gas, gas, liquefied petroleum gas and oil refining, airport, chemical industry, oil and gas storage and transportation pipeline as a closed-circuit device.
