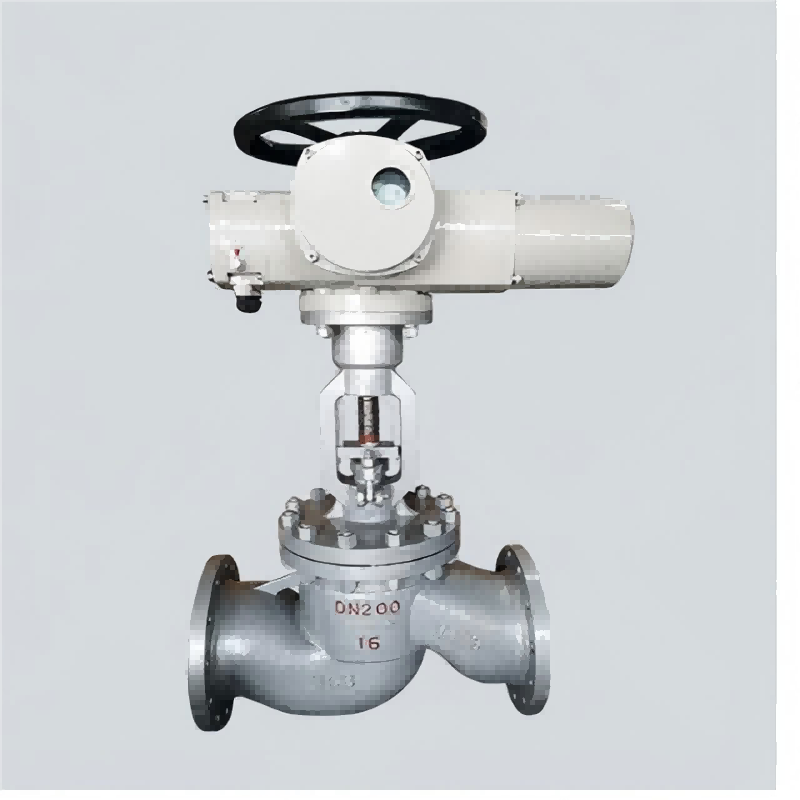

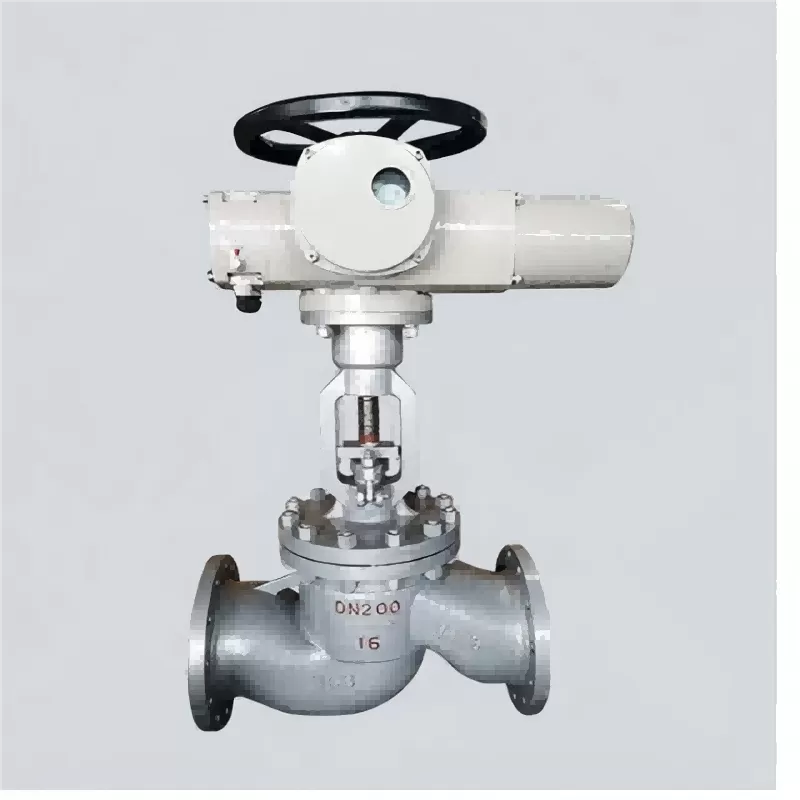

Electric stop valve，Electric valve，Stop valve

Product characteristics

1, electric globe valve product design and manufacture according to the standard, reasonable structure, reliable sealing, excellent performance, beautiful appearance.

2, the sealing surface of the valve disc and seat is made of iron base alloy surfacing or Stelli cobalt matrix alloy surfacing, wear resistance, high temperature resistance, corrosion resistance, abrasion resistance, long service life.

3, the electric globe valve stem after tempering and surface nitriding treatment, has good corrosion resistance and abrasion resistance.

4, the reverse seal is made of threaded connection sealing or body surfacing welding austenitic stainless steel, reliable sealing, packing replacement can be carried out in the case of non-stop convenient and quick without affecting the system operation.

5, equipped with DZW series multi-rotary electric device, with a small shell, light weight, full functions, and can be used with remote computer, but also optional electric device according to user requirements.

The opening and closing part of the electric globe valve is a plug shaped valve disc, the sealing surface is flat or conical, and the valve disc moves in a straight line along the center line of the fluid. The valve is only suitable for full opening and full closing, and does not allow adjustment and throttling. It is widely used in the pipeline of environmental protection, petroleum, chemical industry, power industry and other occasions with nominal pressure of PN1.6 ~ 16MPa and working temperature of -29 ~ 550℃ to cut off the fluid.

Packing of Standard Packing:

Typical bulk packaging includes palletized plastic 5 gallon/25 kg. pails, fiber and steel drums to 1 ton super sacks in full container (FCL) or truck load (T/L) quantities. Research and sample quantities and hygroscopic, oxidizing or other air sensitive materials may be packaged under argon or vacuum. Solutions are packaged in polypropylene, plastic or glass jars up to palletized 470 gallon liquid totes Special package is available on request. E FORUs’  is carefully handled to minimize damage during storage and transportation and to preserve the quality of our products in their original condition.
