Product Code : VF--DCCC-DC6-CU
Nominal diameter; 15-100.
Nominal pressure MPa; 1.6
Type of medium; Gas, air, etc.; Saturated steam; Superheated steam or high temperature gas, water oil liquid hot water, oil
Medium temperature ℃≤60-≤220
Power supply voltage; Other specifications of AC220V can be used for special orders
Service life; As per JB/T7352-94
Leakage m1/min
As per JB/T7352-94·F
Power consumption; AC≤70VA DC≤60W
Outlet connector; Internal thread M20×1.5
Ambient temperature; -40 ~ +60℃
Please contact us if you need customized services. We will contact you with the price and availability in 24 hours.
| Product | Product Code | Purity | Size | Contact Us |

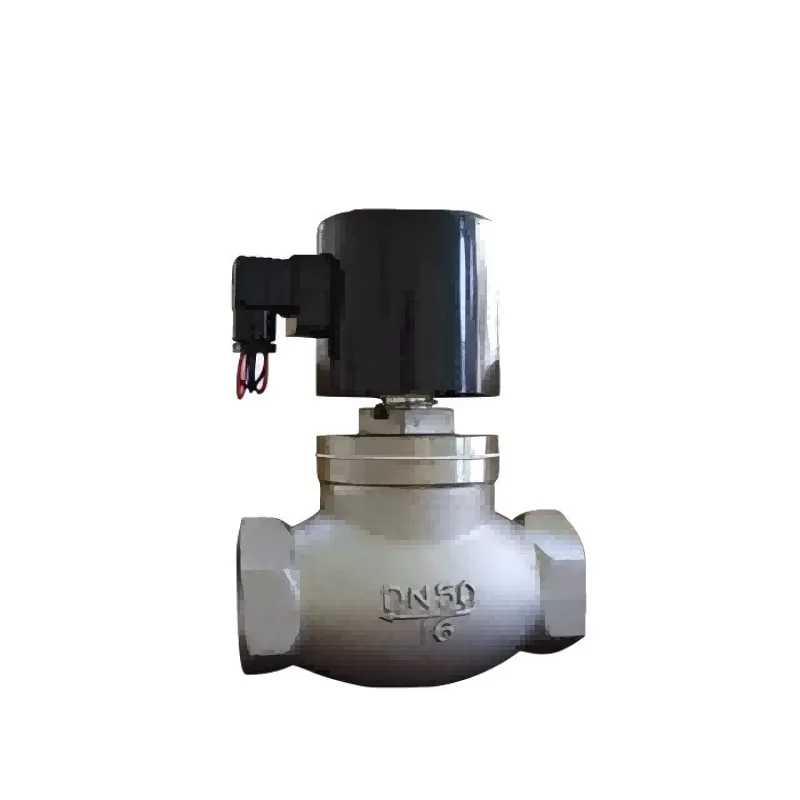

Structure and principle:
The solenoid valve of the pilot type secondary opening valve composed of two major components of the auxiliary valve and the main valve can be divided into normally closed solenoid valve and normally open solenoid valve according to the different opening and closing states of the power off.
Purpose:
General class solenoid valve, suitable for automatic control of a variety of media pipelines, especially suitable for no pressure difference or low pressure systems, such as high art-flow tank, fan, water plant siphon vacuum system.
Structural features:
1, set direct acting valve and pilot two integrated step direct acting special structure.
2, no pressure can also open the main valve, low pressure difference flow, wide application.
3. Polytetrafluoroethylene seal, good temperature resistance.
4, type: normally closed
Applicable to steam as the heating medium, automatic temperature control of the actuator. It can carry out two-position automatic control and remote control area for steam pipes of steam equipment such as steam heaters, radiators, dryers and all kinds of temperature automatic control instruments, steam setting machines, steam dyeing machines, steam return machines and other complete sets of equipment.
