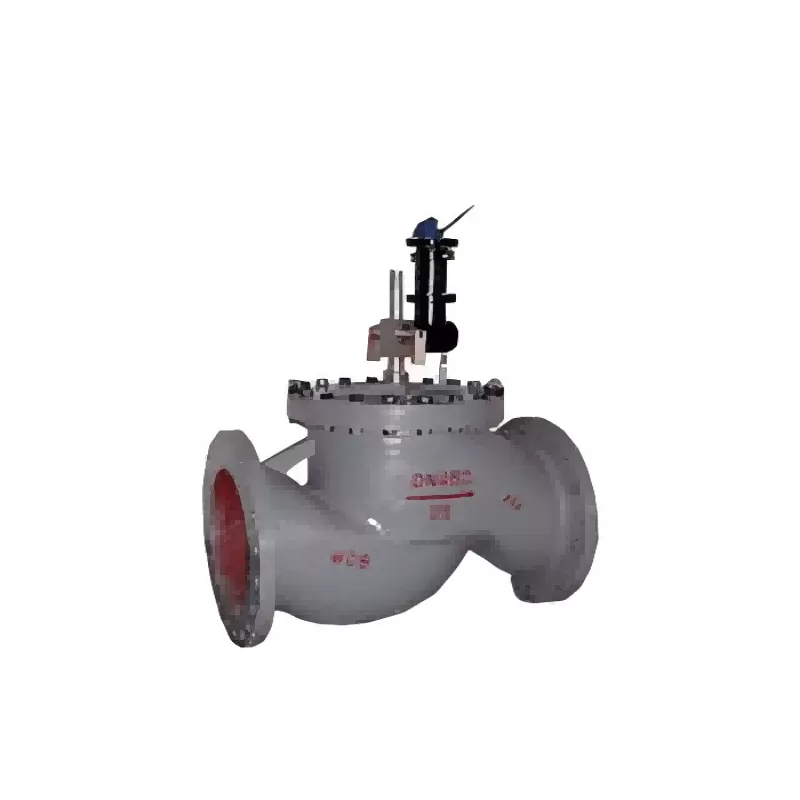

ZQDF steam screw solenoid valve. steam screw solenoid valve,solenoid valve

Overview:

The actuator used in the industrial process automation control system can automatically open or close the valve after receiving the electronic control signal to realize the on-off or flow regulation control of the fluid medium in the pipeline, so as to automatically adjust or remotely control the temperature, flow, pressure and other parameters in the system.

Features:

Corrosion resistance: The main components, valve plug, valve body, etc., are made of stainless steel and cast steel, good corrosion resistance.

Heat resistance: The electromagnetic and sealing parts are all made of special high-temperature electrical materials and sealing materials, and effective heat insulation measures are adopted.

Wear resistance: reasonable material selection, clever use of fluid lubrication between the valve plug and the valve body to reduce wear.

Condensation resistance: the cold north water of the steam pipeline is an important factor affecting the operation of the steam solenoid valve, and the valve is not affected by condensation water.

ZQDF Steam wire solenoid valve Structure and principle:

It is a step action direct pilot solenoid valve, which can be divided into normally closed solenoid valve and normally open solenoid valve according to the different opening and closing states at the time of power failure. Normally closed solenoid valve, after the coil is energized, the armature first drives the valve plug of the secondary valve under the action of electromagnetic force, and the fluid on the valve cup of the main valve flows away through the secondary valve, reducing the pressure on the valve cup of the main valve. When the pressure on the valve cup of the main valve is reduced to a certain value, the armature drives the valve cup of the main valve, and makes the valve cup of the main valve open by using the pressure difference, and the medium flows. When the coil is powered off, the electromagnetic force disappears and the armature resets due to its own weight. At the same time, depending on the medium pressure, the main and secondary valves can be tightly closed. Normally open solenoid valve, coil power due to suction action, moving iron core down, the auxiliary valve plug pressure, the auxiliary valve is closed, the main valve cup pressure rises, when the pressure rises to a certain value, the main valve cup upper and lower pressure difference is the same, due to the electromagnetic force, the moving iron core loses the main valve cup, pressure the main valve seat, the valve is closed. When the coil is powered off, the electromagnetic suction is zero, the auxiliary valve plug and the support core are lifted up due to the spring action, the auxiliary valve is opened, the fluid on the main valve cup flows away through the auxiliary valve, reducing the pressure on the main valve cup, when the pressure on the main valve cup is reduced to a certain value, the pressure difference is used to push the main valve cup up, the main valve is opened, and the medium is circulated.

It can be widely used in textile, printing and dyeing, chemical, plastic, rubber, pharmaceutical, food, building materials, machinery, electrical appliances, surface treatment and other production and scientific research departments, as well as bathrooms, canteens, air conditioning and other People's Daily living facilities. ZQDF steam wire solenoid valve is mainly used for air, steam, gas and other gas medium control; ZQDF steam wire solenoid valve is mainly used in tap water, distilled water, frozen brine, electroplating waste liquid and other liquid media, but also for oil with viscosity less than 4°E.

Packing of Standard Packing:

Typical bulk packaging includes palletized plastic 5 gallon/25 kg. pails, fiber and steel drums to 1 ton super sacks in full container (FCL) or truck load (T/L) quantities. Research and sample quantities and hygroscopic, oxidizing or other air sensitive materials may be packaged under argon or vacuum. Solutions are packaged in polypropylene, plastic or glass jars up to palletized 470 gallon liquid totes Special package is available on request. E FORUs’  is carefully handled to minimize damage during storage and transportation and to preserve the quality of our products in their original condition.
