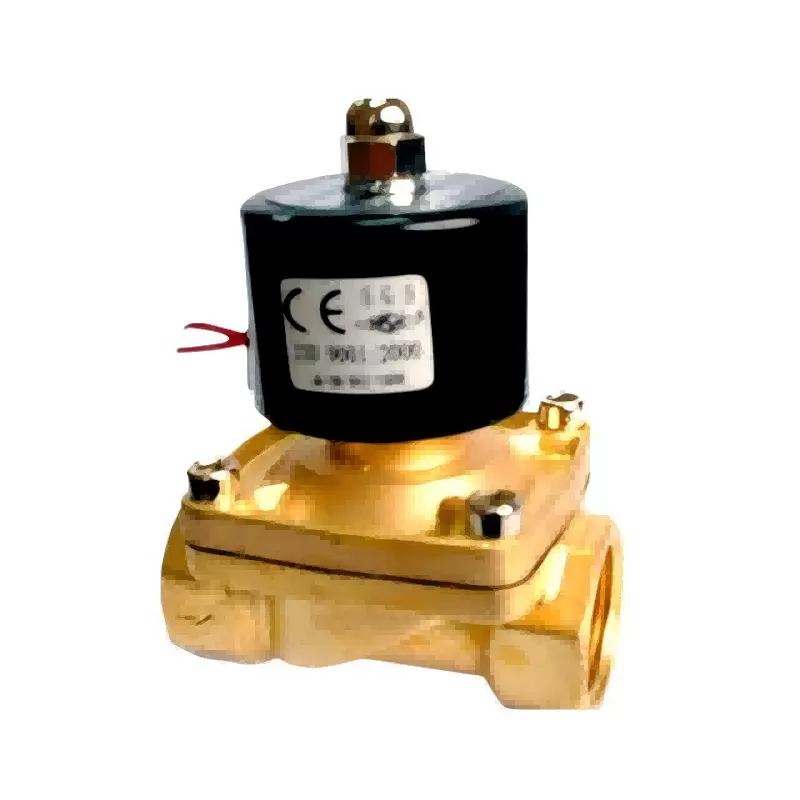

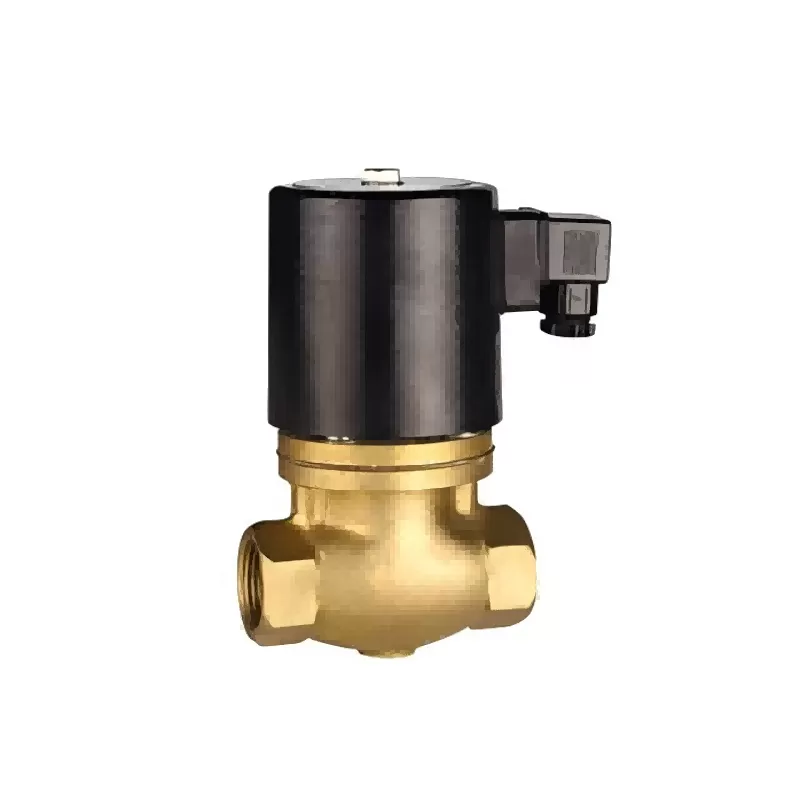

Product Code : VF--DCCC-DC8-CU
Maximum working pressure; 1.6MPa < 1.0MPa >
Medium; Liquid gas vapor oil < 20CST
Medium temperature; ≤180℃ < 220℃
Installation method; The flow direction of the medium is consistent with the arrow of the solenoid valve, the coil is vertical upward, and the working medium should be clean
Please contact us if you need customized services. We will contact you with the price and availability in 24 hours.
| Product | Product Code | Purity | Size | Contact Us |
Structural features:
1, electromagnetic pilot type secondary valve structure, DN: 100 more than the use of three times the valve structure, small size, small power.
2, there are good insulation and buffer components between the pilot valve and the main valve.
3, the selection of temperature resistance, corrosion resistance of high quality magnetic materials, piston type and molded vinyl fluoride valve seal, high performance, long life.
4, type: normally closed or normally open.
Heat resistance: The electromagnetic part and the sealing part are made of special temperature-resistant electrical materials and sealing materials, and various insulation measures are applied.
Wear resistance: The material selection is reasonable, and the valve cup and guide suite cleverly utilize the lubrication of the fluid to reduce wear
Condensation resistance: the condensate of the steam pipeline is an important factor affecting the action of the stainless steel high temperature solenoid valve, and the valve is not affected by condensation.
Scope of application:
Suitable for water or liquid, gas as the medium, liquid level, concentration, flow, metering or discharge cycle automatic control of two-position on-off switching.
It is suitable for two-position automatic and remote on-off switching of steam pipelines of complete sets of equipment such as heaters, radiators, dryers, textile molding machines, desiccating machines, tobacco vacuum humidifiers, vegetable dryers, etc., to realize automatic temperature control.
