Product Code : Customized Customized
Working medium; Normal temperature liquid gas, etc. Regulate the temperature of liquids, gases, etc
Medium temperature (℃); 60-220 or less or less
Power supply voltage; Other specifications of AC220V can be used for special orders
Working pressure; (MPa); 0.04 ~ 1.6
Nominal diameter; 15-500.
Body material; Brass and stainless steel, cast steel and stainless steel
Please contact us if you need customized services. We will contact you with the price and availability in 24 hours.
| Product | Product Code | Purity | Size | Contact Us |

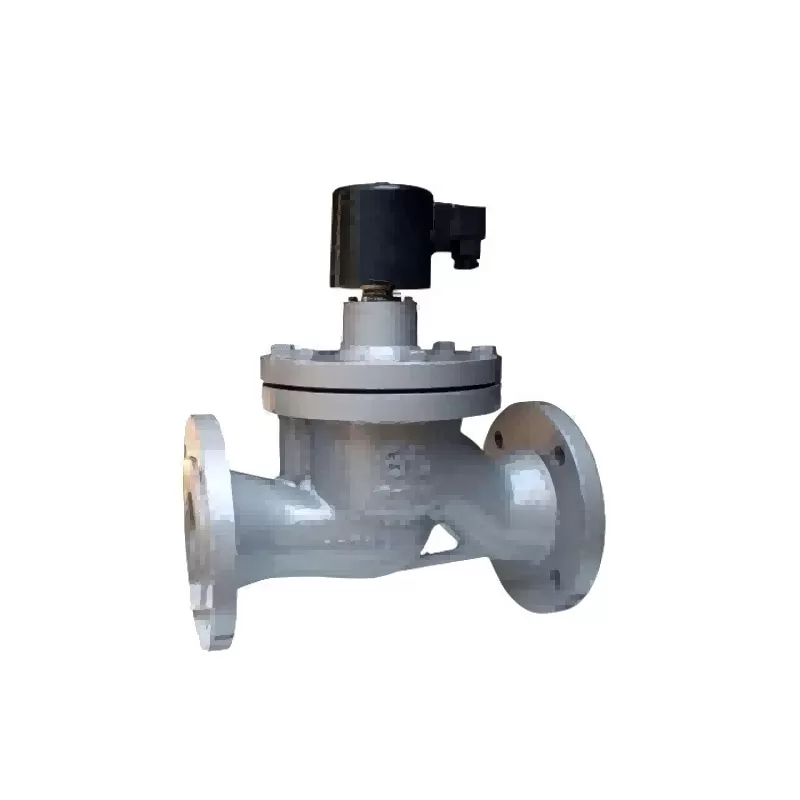

ZCM large diameter gas solenoid valve Features:
Structure features: electromagnetic indirect pilot diaphragm type operation structure
① The valve is not affected by steam quasi-condensing water;
② medium fluid temperature up to 200℃;
③ The main valve spool is made of special materials, resistant to wear;
④ The valve core uses fluid lubrication to reduce wear;
⑤ The valve adopts pilot type structure suitable for large caliber series.
It is suitable for two-position on-off switching of heating and combustion medium pipelines of city gas, liquefied petroleum gas, natural gas, etc., and automatic temperature control of the actuator. It is widely used in textile industry, printing industry gas heat setting and glass, light bulb industry kiln heating and other industries gas heating automatic control system.
Packing of Standard Packing:
Typical bulk packaging includes palletized plastic 5 gallon/25 kg. pails, fiber and steel drums to 1 ton super sacks in full container (FCL) or truck load (T/L) quantities. Research and sample quantities and hygroscopic, oxidizing or other air sensitive materials may be packaged under argon or vacuum. Solutions are packaged in polypropylene, plastic or glass jars up to palletized 470 gallon liquid totes Special package is available on request. E FORUs’ is carefully handled to minimize damage during storage and transportation and to preserve the quality of our products in their original condition.
