Product Code : VF--DCCC-DC16-CU

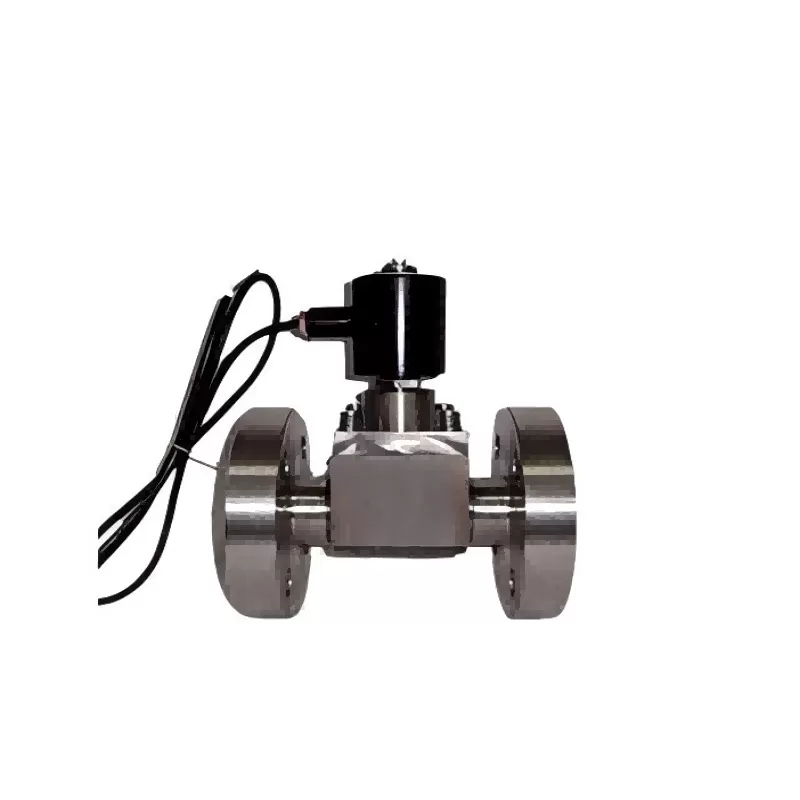

CF58 explosion-proof high pressure solenoid valve technical parameters:
Product model: ZCF58-15HB
Size: DN1-1000mm
Principle structure: pilot piston type
Working environment temperature: -10-+50℃ -40-+80℃
Coil operating temperature: <+50℃, <+85℃
Control mode: normally closed, normally open, self-holding
Flow fluid pressure: 0~200Mpa
Body material: cast steel, stainless steel 304, 316.
Applicable media: gas, water, oil, steam, gas, corrosive fluid.
Medium temperature: (--200, -50) ~ (+120, +200, +250) 0 ~ (+300, +450, +600) ℃.
Medium viscosity: less than 50CSt (more than 50 need to be customized).
Protection performance: waterproof, dustproof, explosion-proof (Exd IICT5), anti-corrosion.
Spool material: all stainless steel.
Wiring mode: socket type, lead type, plug type.
Power supply voltage: DC12, DC24V, DC36V, DC110V, DC127V, DC220V, DC380V;
AC24V, AC36, AC110V, AC127V, AC220V, AC380V.
Connection mode: flange, internal thread, external thread, sleeve
Leakage: zero
Note: Special type can be customized.
Please contact us if you need customized services. We will contact you with the price and availability in 24 hours.
| Product | Product Code | Purity | Size | Contact Us |
ZCF58 Explosion-proof high pressure solenoid valve Overview:
Beautiful appearance; Piston structure; Stable performance; Autocratic coil, not easy to burn; Most suitable for use in explosive hazardous places.
ZCF58 explosion-proof high pressure solenoid valve working principle:
Normally closed: When the coil is energized, the electromagnetic core is drawn, the pressure relief hole is opened, the main piston is driven by the medium pressure, the main valve port is opened, and the medium flows.
When the coil is powered off, the main valve is closed and the medium is cut off.
Normally open: When the coil is energized, the electromagnetic core is drawn, the pressure relief hole is closed, the main piston is driven by the medium pressure, the main valve port is closed, and the medium is cut off.
When the coil is powered off, the main valve opens and the medium flows.
Scope of work:
It is suitable for military industry, nuclear industry, shipbuilding industry, petrochemical industry, electric power, chemical industry, light industry, machinery, scientific research, gas pipeline network, industrial kiln, pipeline medium automation control and other fields.
