Product Code : VF--DCCC-DC7-CU
Model specification: DN0.5 ~ DN500
Applicable media: gas, water, oil, steam, refrigerant, corrosive fluid
Medium temperature: -200 ~ +200℃
Medium viscosity: less than 50CSt (greater than the need to customize)
Protection performance: IP65
Explosion-proof mark: ExdⅡCT5 explosion-proof model has the letter F
Valve material: 304, 316,
Control mode: one in two out (ZC2/31), two in one out (ZC2/32), one in one out (ZC2/3 normally closed type. ZC2/3K normally open type)
Supply voltage: DC3 ~ 127VAC36 ~ 380V
Connection mode: internal thread, external thread, flange
Leakage: zero
Please contact us if you need customized services. We will contact you with the price and availability in 24 hours.
| Product | Product Code | Purity | Size | Contact Us |

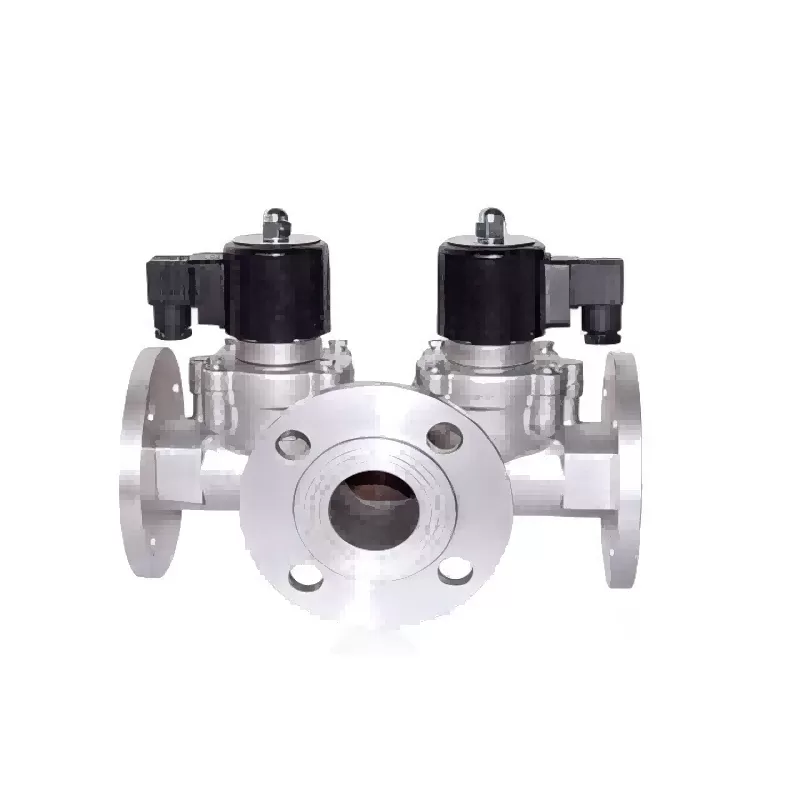

ZC two-position three-way solenoid valve Overview:
There are closed chambers, open holes in different positions, each hole leads to a different tubing, the middle of the chamber is a valve, both sides are two electromagnets, which side of the magnet coil electrified valve body will be attracted to which side, by controlling the movement of the valve body to block or leak different oil discharge holes, and the oil inlet hole is often open, hydraulic oil will enter different drainage tubing, Then the piston of the cylinder is driven by the pressure of the oil, and the piston drives the piston rod, and the piston rod drives the mechanical device. In this way, mechanical motion is controlled by controlling the current of the electromagnet.
There are closed chambers, open holes in different positions, each hole leads to a different tubing, the middle of the chamber is a valve, both sides are two electromagnets, which side of the magnet coil electrified valve body will be attracted to which side, by controlling the movement of the valve body to block or leak different oil discharge holes, and the oil inlet hole is often open, hydraulic oil will enter different drainage tubing, Then the piston of the cylinder is driven by the pressure of the oil, and the piston drives the piston rod, and the piston rod drives the mechanical device. In this way, mechanical motion is controlled by controlling the current of the electromagnet.
