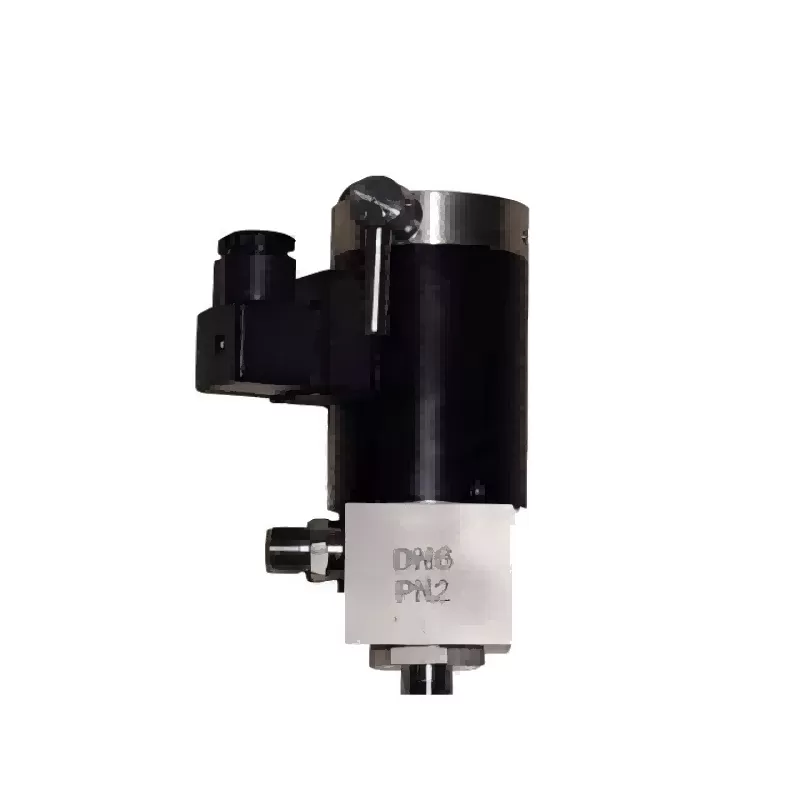

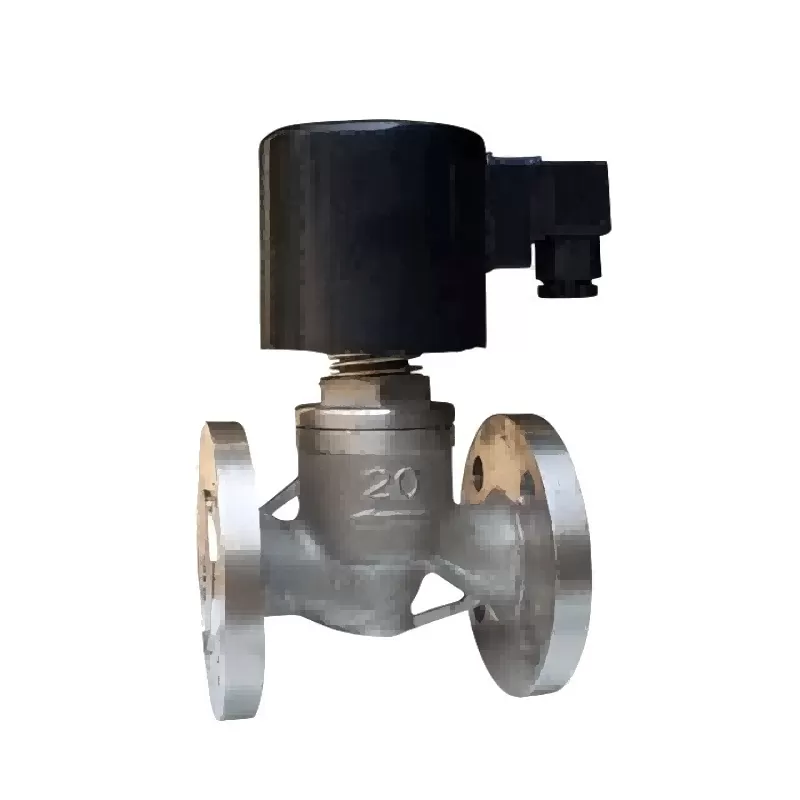

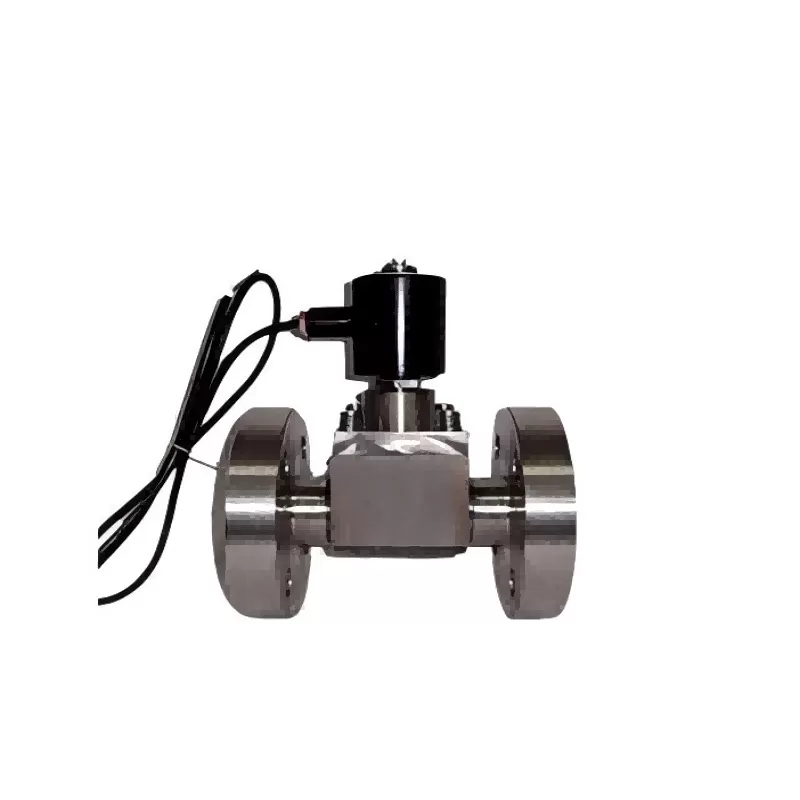

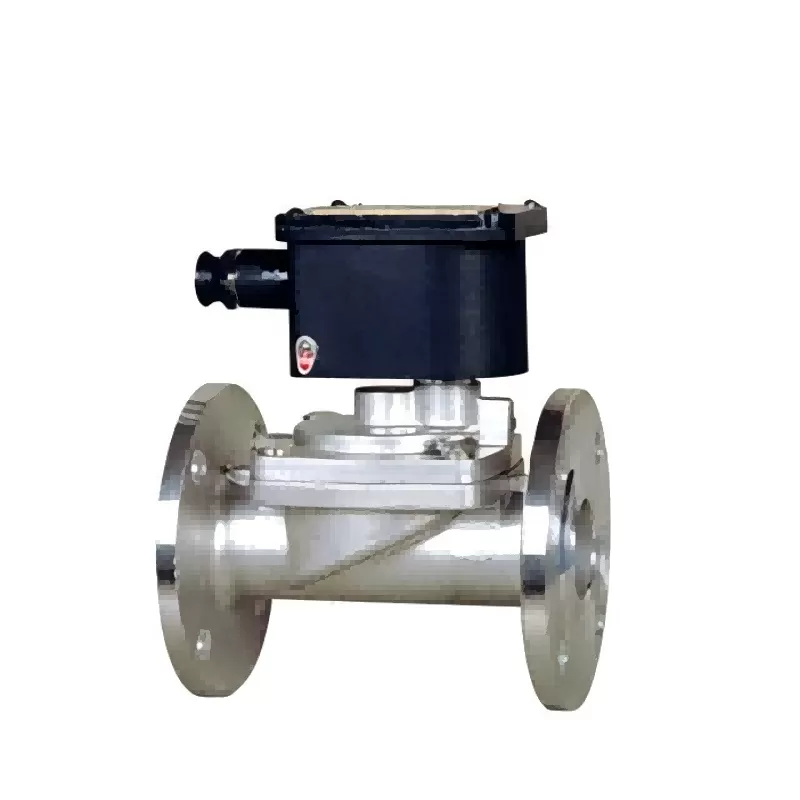

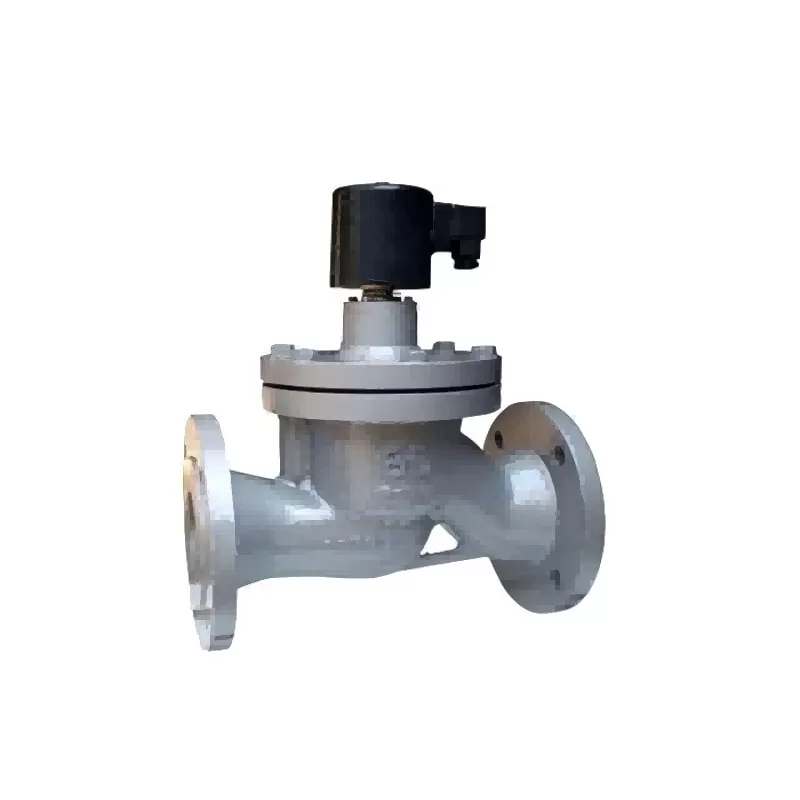

Product Code : VF--DCCC-DC1-CU
Technical parameters:
Diameter range: DN15 to DN100.
Control mode: normally open, normally closed.
Power supply voltage: DC12-220V (best direct current), AC24-220V
Body material: cast steel, brass, aluminum, tetrafluoroethylene, stainless steel.
Applicable media: water, gas, oil, corrosive fluid, etc.
Pressure range: 0.02 ~ 20MPa
Temperature range: -50- (+120, +200).
Medium viscosity: less than 50CSt (greater than the need to customize).
Protection performance: dustproof, waterproof, explosion-proof. Select according to the working condition.
Wiring mode: wiring socket type; Lead type; Plug type.
Connection method: flange, welding, internal thread (external thread and special interface can be customized or added adapter)
Please contact us if you need customized services. We will contact you with the price and availability in 24 hours.
| Product | Product Code | Purity | Size | Contact Us |
How it works:
One in one out: Normally closed: When the coil is energized, 2 leads to 1,1 and 3 are closed.
When the coil is powered off, 2 and 1 close, and 1 leads to 3.
Normally open: When the coil is energized, 3 and 1 are closed, and 1 leads to 2.
When the coil is powered off, 3 leads to 1, 1, and 2 close.
One in two out: When the coil is energized, 1 leads to 2,1 and 3 close.
When the coil is powered off, 1 and 2 close, and 1 leads to 3.
Two in one out: When the coil is energized, 2 leads to 1,3 and 1 close.
When the coil is powered off, 2 and 1 are closed, and 3 leads to 1.
Widely used in military, aerospace, shipbuilding heavy industry, nuclear industry, petrochemical, electric power, chemical, light industry, machinery, scientific research, drying equipment, boiler, water supply and drainage, air conditioning, fire, food medical, cleaning equipment, pipeline media automation control and other fields.
