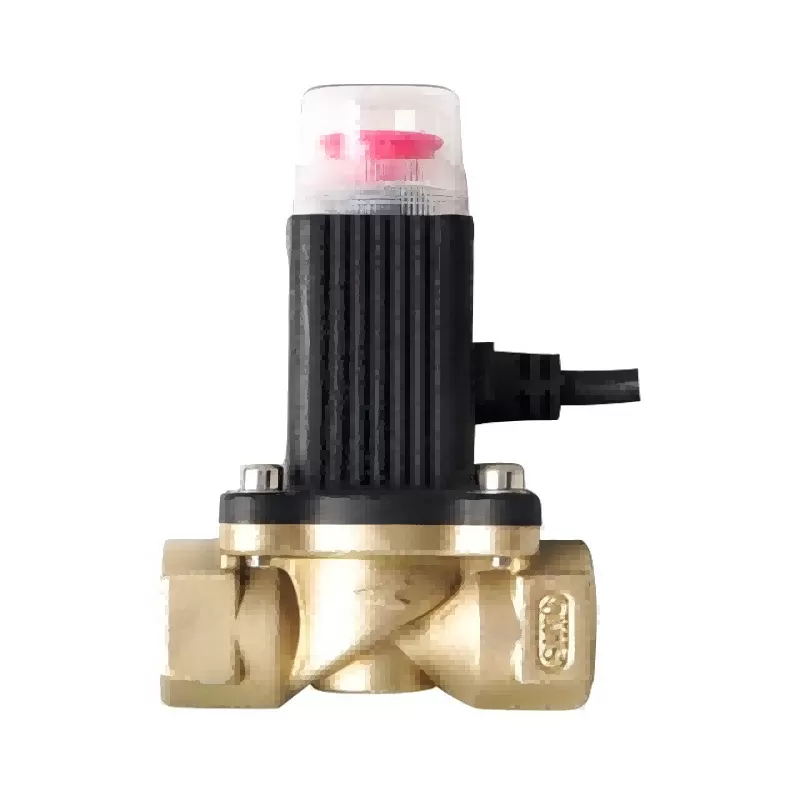

Gas stove solenoid valve, solenoid valve

Overview of gas stove solenoid valve:

Including the valve cover, valve disc, the magnetic core in the valve, the coil in the magnetic core and the horizontal bar on the magnetic core, the horizontal bar of the magnetic core is fixed with the reed, the spring is installed in the middle of the reed, as a fulcrum, the spring is fixed on a frame, one end of the reed is installed with a rubber nozzle, the valve disc is provided with an outlet, the air nozzle of the outlet is opposite to the rubber nozzle on the reed, forming the airway switch structure. The solenoid valve relies on the electromagnetic force to draw, the starting current is very small, the work is stable and reliable, and the structure is simple.

Advantages:

The biggest advantage is that when there is no fire burning, the gas can be automatically turned off to prevent gas poisoning.

At present, the general thermocouple is on the right side of the knob valve, and the ion is generally near the elbow of the gas pipe. One is installed directly on the side of the gas intake pipe to control the air intake of the two furnace heads, and the other is installed in the air intake of each furnace head.

Gas stove solenoid valve function:

The thermocouple solenoid valve can control the focus separately.

Thermocouple damper solenoid valve Its volume is relatively small, the coil inside is a single circle, a thermocouple wire inserted in the inside of the contact, there is a connection to the solenoid valve shell, the single-circle solenoid valve in the ignition need to press for about 5 seconds, otherwise the electromotive force generated by the thermocouple is not enough to pull the solenoid valve. In addition, there is a double-ring solenoid valve, the thermocouple is 3 wires, and it is powered by the battery in the early stage of the ignition, until the thermocouple generates enough electromotive force, the battery gives up power and turns into thermocouple power supply.

The ion-quenching solenoid valve realizes the overall control.

The volume is large, at the end of the gas pipe, connected to the universal joint, when we press the knob, touch the micro switch, the pulse igniter detects, pulls the solenoid valve, when the flame is extinguished, it is first detected by the ion quenching and no current passes through, the pulse igniter reacts and starts to count down. If the biased flame caused by too much wind will return to the normal state within a few seconds, the flame will be turned off, then there will be no current through the countdown, then the MCU will react, and disconnect the solenoid valve current, thus turning off the gas and avoiding the accident.

The solenoid valve relies on the electromagnetic force to draw, the starting current is very small, the work is stable and reliable, and the structure is simple.
