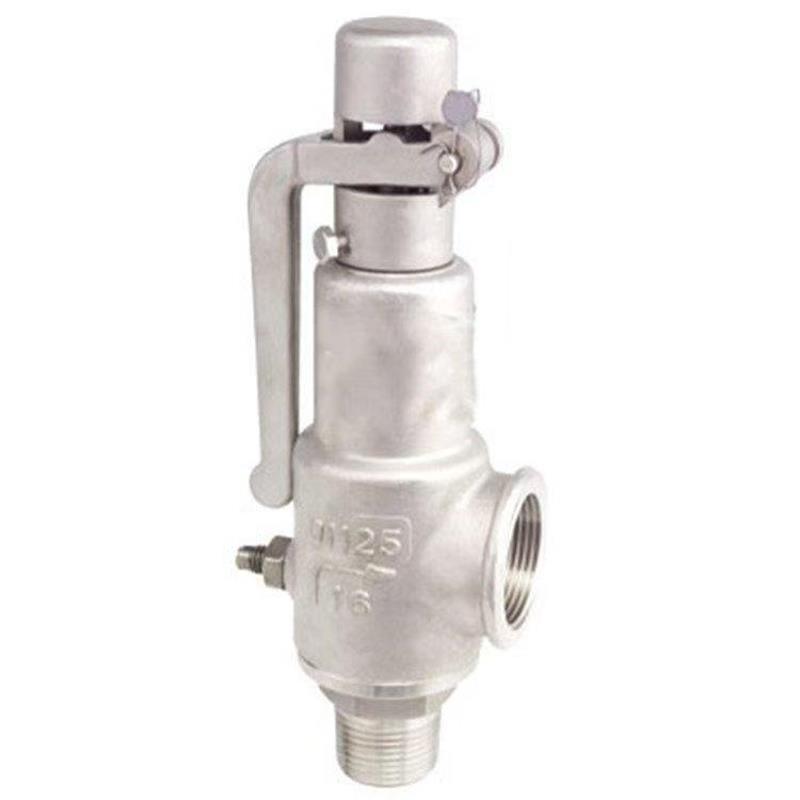

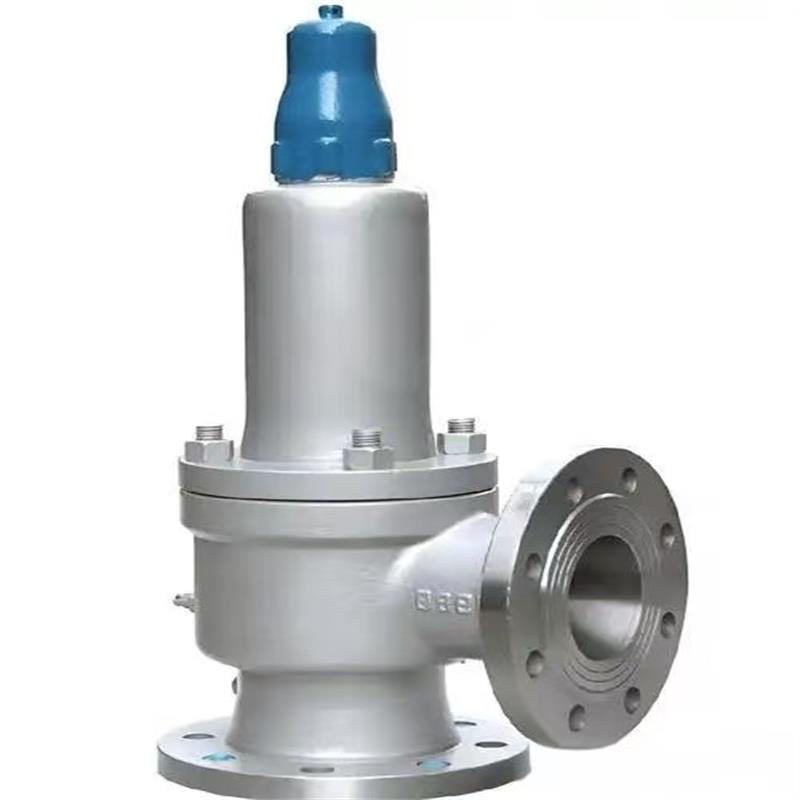

Oxygen safety valve， safety valve

‌ Oxygen safety valve ‌ is a safety device specially designed for oxygen system, designed to control the pressure in the oxygen system to prevent the danger caused by too high or too low pressure. It ensures the safety of personnel and equipment ‌ by keeping the pressure stable when the oxygen system is working normally and automatically cutting off the oxygen flow in case of system failure

Working principle

The oxygen safety valve works on the principle of pressure difference. When the pressure in the oxygen system rises above the set value of the safety valve, the safety valve automatically opens to release excess oxygen, thereby reducing the system pressure. Conversely, if the pressure in the system is too low, the safety valve will also take corresponding measures to keep the pressure stable. This automatic regulation mechanism ensures the safe operation of the oxygen system under various working conditions ‌

Structural characteristics

‌ material choice ‌ : Oxygen safety valve is usually made of corrosion-resistant, high-strength materials to adapt to the special environment of oxygen system. Its compact design makes it easy to install and maintain ‌

‌ sealing performance ‌

 the sealing surface of the safety valve is precision machined and ground to ensure good sealing performance. In addition, the safety valve is also equipped with additional devices such as bursting disc to enhance its sealing effect and safety performance ‌

‌ regulating function ‌

The oxygen safety valve has an adjustable opening pressure setting value, which can be adjusted according to the actual needs of the oxygen system to meet the pressure protection needs under different working conditions ‌

‌ Oxygen safety valve is widely used in many fields, mainly including medical treatment, chemical industry, metallurgy and so on. ‌

Medical field

In the medical field, oxygen safety valves are mainly used in medical liquid oxygen storage tanks. It can monitor and control oxygen pressure to ensure the stability and safety of oxygen supply, thus ensuring the normal operation of medical equipment and patient safety ‌

Chemical industry

In chemical production, oxygen safety valves prevent equipment damage or explosion accidents caused by excessive pressure. For example, in petrochemical, metallurgy and other industries, oxygen safety valve is widely used in a variety of oxygen systems to ensure the safe operation of oxygen systems and reduce the risk of safety accidents ‌

Other fields

In addition, the oxygen safety valve is also widely used in steel, metallurgy, petrochemical, chemical and other oxygen engineering pipe network, to prevent dust and oil pollution, to ensure the normal operation and safety of the system ‌

Packing of Standard Packing:

 Typical bulk packaging includes palletized plastic 5 gallon/25 kg. pails, fiber and steel drums to 1 ton super sacks in full container (FCL) or truck load (T/L) quantities. Research and sample quantities and hygroscopic, oxidizing or other air sensitive materials may be packaged under argon or vacuum. Solutions are packaged in polypropylene, plastic or glass jars up to palletized 442 gallon liquid totes Special package is available on request. ATTs’  is carefully handled to minimize damage during storage and transportation and to preserve the quality of our products in their original condition.
