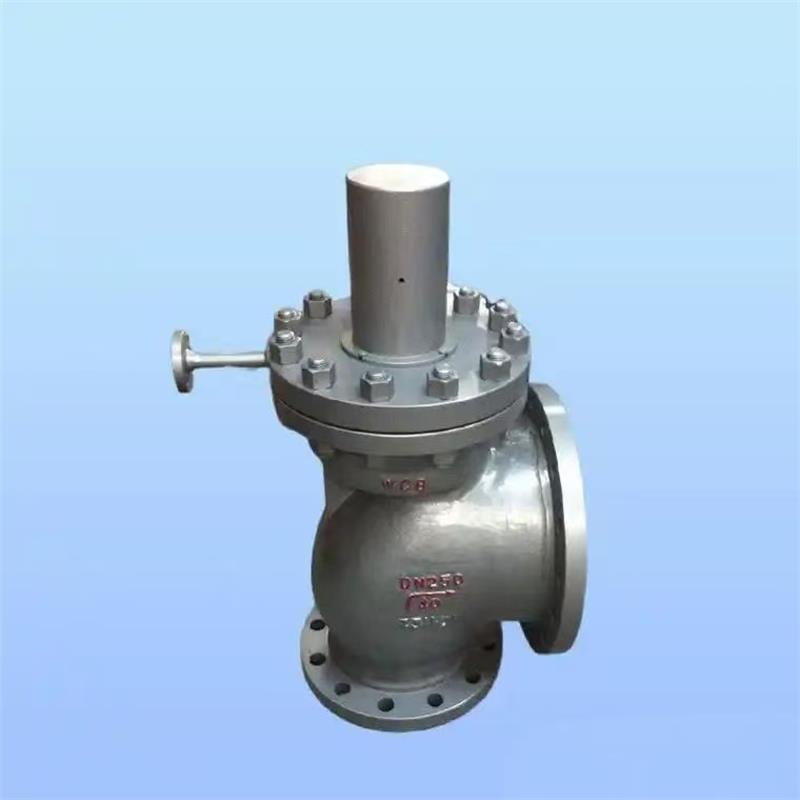

Impulse safety valve， safety valve

‌ Impulse Safety Valve ‌, also known as pilot operated or combined safety valve, is mainly used in power station boilers, pressure vessels, temperature and pressure reduction devices and other equipment to prevent the pressure in the equipment from exceeding the maximum allowable pressure value, to ensure the safe operation of the equipment ‌

Working principle

The impulse type safety valve consists of two parts: the main valve and the auxiliary valve. The auxiliary valve is a set of heavy weight lever or spring loading mechanism, when the pressure in the equipment exceeds the specified value, the auxiliary valve acts first, but does not directly exhaust, but through the auxiliary valve to the main valve a pulse action, drive the main valve action pressure relief. This design enables flexible valve operation, small opening and closing delay and tight closing ‌

Structural characteristics

‌ lever and weight balance ‌ : Lever and weight are used to balance disc pressure and ensure valve seal. The take-off pressure ‌ can be adjusted by moving the position of the weight and changing the weight of the weight

‌ sealing material ‌

 the sealing surface is surfacing welded with iron-based chrome-nickel stainless steel. The valve disc has been heat treated to improve the wear resistance and erosion resistance ‌

‌ electromagnetic device ‌ : the upper part of the valve with opening and closing electromagnet, mechanical and electrical action do not interfere with each other ‌

Specifically, the impulse safety valve is mainly used to prevent the internal pressure of the equipment from exceeding the maximum allowable pressure value, thus ensuring the safe operation of the equipment ‌

Application scenario

‌ power station boiler ‌ : in the power station boiler, the impulse safety valve can ensure the safe operation of the boiler under high pressure environment and prevent equipment damage or accidents caused by high pressure ‌

‌ pressure vessel ‌ : in all kinds of pressure vessels, impulse safety valve can release the excessive internal pressure in time, protect the vessel from damage ‌

‌ temperature and pressure reduction device ‌ : in the temperature and pressure reduction device, the impulse safety valve can ensure that the device will not fail due to high pressure during the decompression process, and ensure the stable operation of the system ‌

Industry application

Pulse type safety valve is also widely used in petroleum, chemical, metallurgical, pharmaceutical, food, beverage, environmental protection and other industries. Equipment in these industries often need to operate under high pressure, high temperature or special environments, impulse safety valves can provide reliable protection to ensure production safety and normal operation of equipment ‌
