Product Code : VF--ZCC-A5-CU

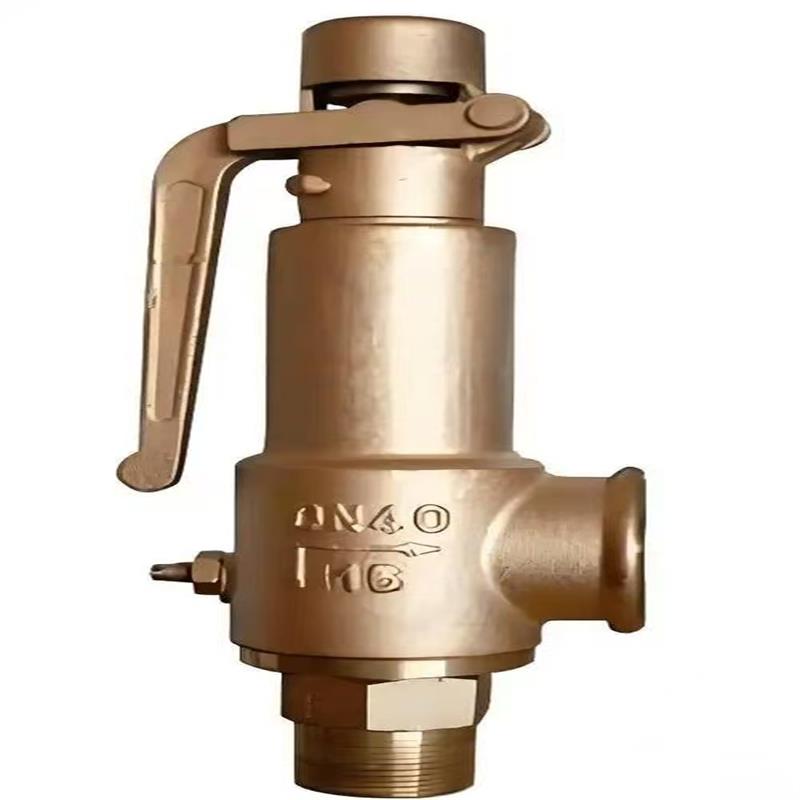

Full open external thread safety valve with handle spring
Product caliber: DN15 ~ DN80
Product pressure: 0.6 ~ 10.0MPa
Manufacturing standards: China GB, JB, HG, API, ANSI, DIN, JIS, JPI, BS production. Body material: copper, cast iron, cast steel, carbon steel, WCB, WC6, WC9, 20#, 25#, forged steel, A105, F11, F22, stainless steel, 304, 304L, 316, 316L, chromium molybdenum steel, low temperature steel, titanium alloy steel, etc. Working pressure 1.0Mpa-50.0Mpa. Operating temperature: -196℃-650℃. Connection method: internal thread, external thread, flange, welding, butt welding, socket welding, sleeve, clamp. Driving mode: manual, pneumatic, hydraulic, electric
Please contact us if you need customized services. We will contact you with the price and availability in 24 hours.
| Product | Product Code | Purity | Size | Contact Us |
Structure and working principle
The full-open external thread safety valve with handle spring is mainly composed of valve body, valve cover, spring, valve disc, handle and other components. The body and bonnet are threaded together to form a sealed cavity. The spring is installed in the valve cover to produce a certain pre-tightening force on the valve disc. The handle is used to manually operate the safety valve for emergency relief or commissioning if required
Application scenario
This safety valve is suitable for all kinds of industrial pipelines and equipment, especially in the working temperature of air, steam, water, nitrogen and hydrogen mixture and other media equipment or pipelines. It is also suitable for equipment or pipelines with corrosive media as an overpressure protection device
Packing of Standard Packing:
Typical bulk packaging includes palletized plastic 5 gallon/25 kg. pails, fiber and steel drums to 1 ton super sacks in full container (FCL) or truck load (T/L) quantities. Research and sample quantities and hygroscopic, oxidizing or other air sensitive materials may be packaged under argon or vacuum. Solutions are packaged in polypropylene, plastic or glass jars up to palletized 442 gallon liquid totes Special package is available on request. ATTs’ is carefully handled to minimize damage during storage and transportation and to preserve the quality of our products in their original condition.
