Product Code : VF--ZCC-A3-CU

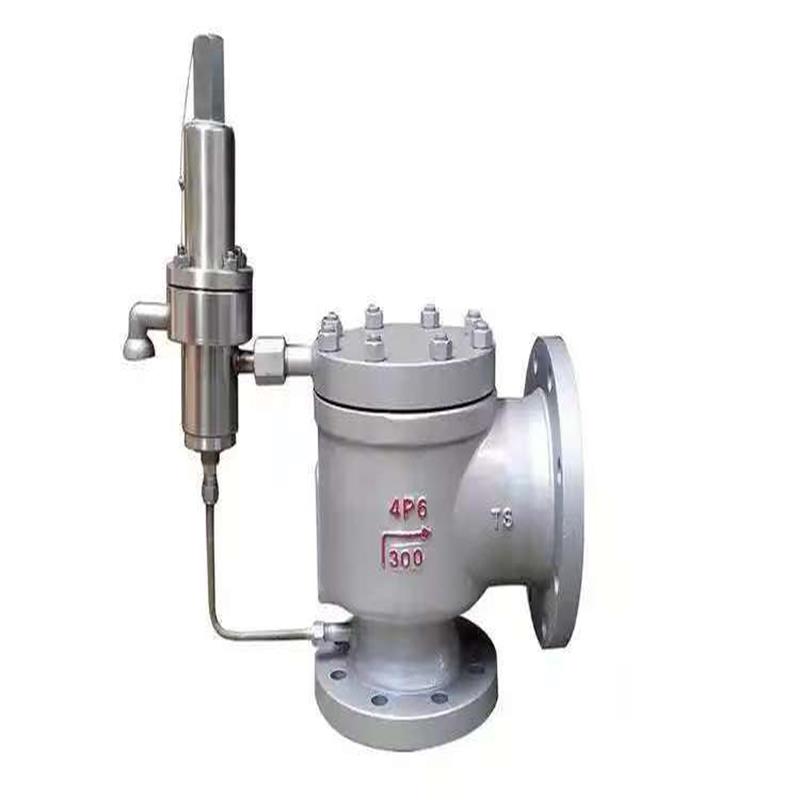

Full lift safety valve
Product caliber: DN32~200
Product pressure: 0.6~10.0Mpa
Manufacturing standards: China GB, JB, HG, API, ANSI, DIN, JIS, JPI, BS production. Body material: copper, cast iron, cast steel, carbon steel, WCB, WC6, WC9, 20#, 25#, forged steel, A105, F11, F22, stainless steel, 304, 304L, 316, 316L, chromium molybdenum steel, low temperature steel, titanium alloy steel, etc. Working pressure 1.0Mpa-50.0Mpa. Operating temperature: -196℃-650℃. Connection method: internal thread, external thread, flange, welding, butt welding, socket welding, sleeve, clamp. Driving mode: manual, pneumatic, hydraulic, electric
Please contact us if you need customized services. We will contact you with the price and availability in 24 hours.
| Product | Product Code | Purity | Size | Contact Us |
full-open safety valve
refers to the opening height is greater than or equal to 1/4 of the flow diameter of the safety valve, its operating characteristics belong to the two-stage acting safety valve
The full-open safety valve is mainly used in the case of gas medium, especially in the steam medium, there is usually a sudden full opening action, the pressure of the sudden opening action is the setting pressure (sudden jump pressure)
Structure and working principle
The structure of the full-opening safety valve is relatively simple, mainly composed of the shell, the upper cover and the piston assembly. When the fluid pressure in the pipeline reaches the set value, the actuator controlled by the electromagnetic coil will quickly open the valve; Conversely, when the medium pressure exceeds the set limit, the actuator will immediately cut off the gas path. Under normal operating conditions, the main spring is balanced with the balance spring force, keeping the main spring in a compressed state. In case of abnormal conditions (such as overpressure, power off, etc.), the lever principle will push the diaphragm down, drive the lever shaft to rotate, thus changing the opening of the air chamber, to achieve the automatic opening function
Application scenario
Boilers and pressure vessels : Fully opened safety valves play a vital role in boiler and pressure vessel systems. When the internal pressure of the equipment exceeds the set value, the safety valve will automatically open, quickly discharge the overpressure medium, effectively reduce the internal pressure of the equipment, to avoid the occurrence of explosion accident
pipeline system : In the pipeline system, the full-opening safety valve can prevent the pressure in the pipeline from being too high and avoid the pipeline rupture accident. It can quickly discharge overpressure media to ensure the safe operation of the pipeline system
other industrial equipment : in addition to boiler and pipeline system, full-opening safety valve is also widely used in compressors, reactors, storage tanks and other industrial equipment, to provide security for the safety of these equipment
