Double safety valve，safety valve

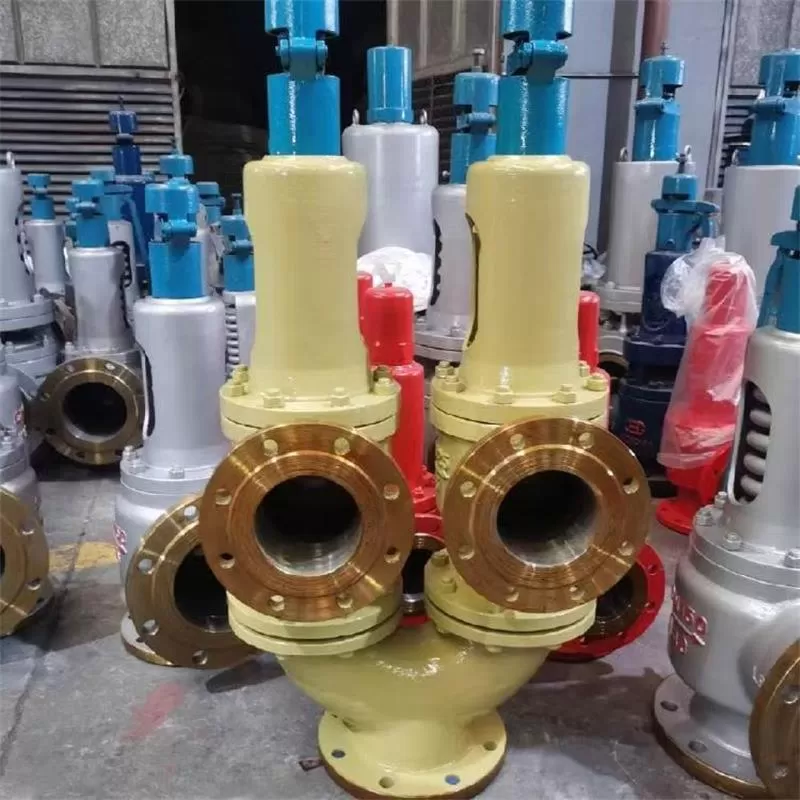

‌ double safety valve ‌ is a kind of overpressure protection device, suitable for steam, water and other medium equipment and pipelines with working temperature ≤350℃. It is usually installed on the Y-type joint with two safety valves of the same specification, the nominal diameter refers to the Y-type joint inlet diameter ‌

Structural characteristics

The double safety valve is usually connected by a flange, and its structure includes a valve body, a valve disc, a spring and a regulating device. The valve disc is normally closed under the action of external force. When the medium pressure in the equipment or pipeline rises beyond the specified value, the safety valve will automatically open and prevent the pressure from continuing to rise by discharging the medium. The safety valve closes automatically when the pressure is reduced to the specified value ‌

Working principle

The working principle of the double safety valve is based on the external force of the opening and closing parts in a normally closed state. When the medium pressure rises beyond the set value, the safety valve prevents the pressure from continuing to rise by discharging the medium to ensure that the pressure of the equipment and pipelines does not exceed the specified value. When the pressure is reduced to the safe value, the safety valve automatically closes, thus realizing the effective protection of the system ‌

‌ Double safety valve is widely used,

 mainly including petroleum, chemical, electric power, pharmaceutical, food processing and other industries ‌. The application scenarios include ‌ in the equipment and systems such as pressure vessels, pipelines, boilers, and reactors

Application scenario

‌ petroleum and chemical industry ‌ : double safety valve is often used in petroleum exploitation, refineries and chemical production equipment as an emergency emptying and safety protection device ‌

‌ electric power industry ‌ : in power plants and substations, double safety valves are used to protect boilers and pressure vessels from equipment damage caused by high pressure ‌

‌ Pharmaceutical and food processing ‌ : In the pharmaceutical and food processing industries, double safety valves are used to ensure the stable pressure of production equipment and prevent accidents caused by abnormal pressure ‌

Applicable medium

The double safety valve is suitable for a variety of media, including steam, water, lubricating oil, fuel oil, air, nitrogen, oxygen, etc. In addition, it can also be used in highly corrosive media, such as acid alkali, etc. The specific applicability depends on the chemical compatibility of the valve body, valve core and sealing material ‌
