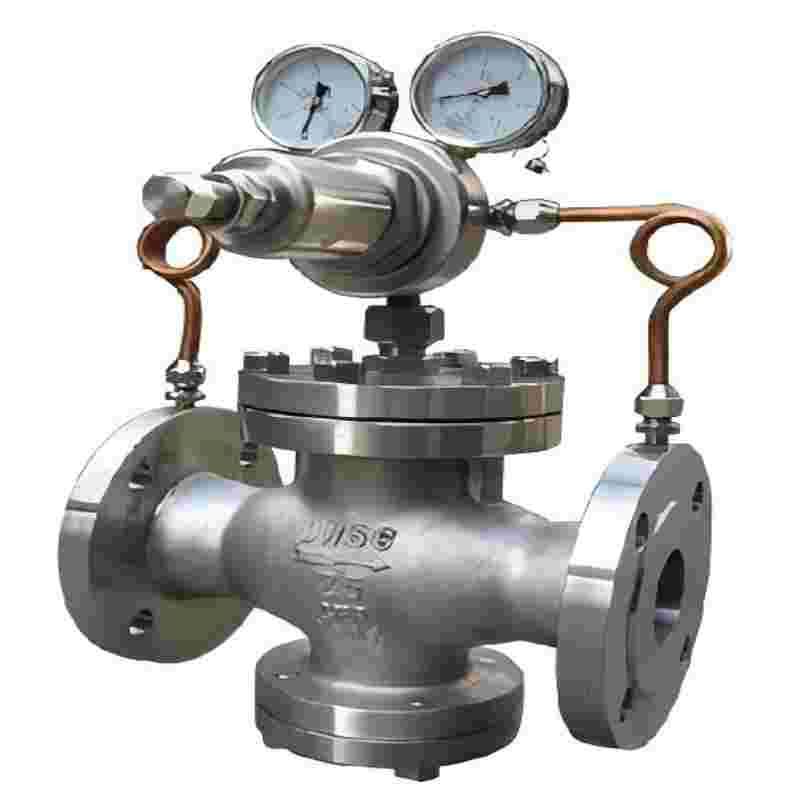

Stainless steel gas reducing valve， reducing valve

How it works:

1, the valve through the throttle of the opening and closing parts, resulting in pressure loss forcing the inlet pressure at the outlet to reduce a certain value, when the flow and pressure change, the use of its own medium energy to control the outlet pressure basically unchanged purpose.

2, the valve medium from the upper down, when adjusting the outlet pressure, clockwise rotation of the adjusting bolt to force the piston to move down, open the main valve, change the throttle area, resulting in pressure loss, to achieve pressure reduction. Since the medium after the valve flows into the lower chamber of the piston through the "X" channel and maintains balance with the upper part of the piston, when the pressure and flow change, the throttling area of the main valve is always maintained in the corresponding position. Because the valve adopts the unloading mechanism, the inlet pressure area is reduced, thus reducing the valve outlet pressure deviation, and greatly improving the pressure regulation accuracy of the pressure reducing valve.

YK42F series gas reducing valve is a replacement of spring film type decompression products, compared with the film type has the following advantages:

1, long service life, there is no problem of diaphragm damage.

2, high pressure resistance, when the outlet pressure is high, the film is not high, and the piston can adapt to a high outlet pressure.

The valve is used for the working temperature of -10~150℃ of natural gas and air, gas, non-corrosive liquid pipeline, in the high-rise building hot and cold water supply and fire water supply system, can replace the conventional partition water pipe, which can simplify and save the system equipment, reduce the project cost, but also in all kinds of press equipment cooling system plays a pressure reduction, pressure regulation role. It is indeed the ideal product for users.

Packing of Standard Packing:

Typical bulk packaging includes palletized plastic 5 gallon/25 kg. pails, fiber and steel drums to 1 ton super sacks in full container (FCL) or truck load (T/L) quantities. Research and sample quantities and hygroscopic, oxidizing or other air sensitive materials may be packaged under argon or vacuum. Solutions are packaged in polypropylene, plastic or glass jars up to palletized 470 gallon liquid totes Special package is available on request. E FORUs’  is carefully handled to minimize damage during storage and transportation and to preserve the quality of our products in their original condition.
