Product Code : VF--ZSCC-ZS5-CU

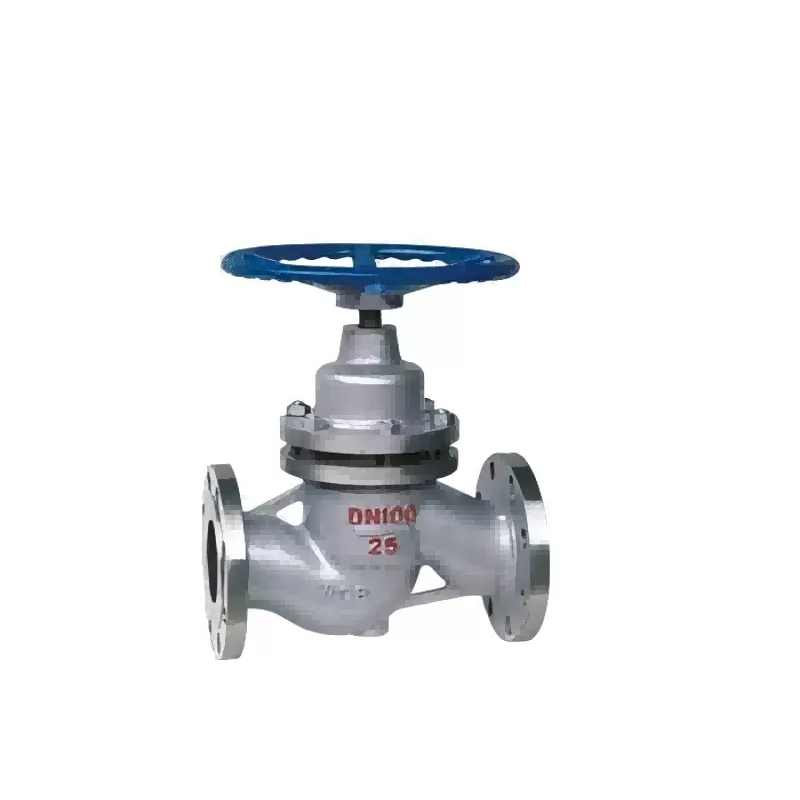

Plunger type globe valve is composed of body, valve cover, stem, plunger, sealing ring, hand wheel and other parts.
Diameter range; DN15 ~ 300mm
Applicable temperature <425℃-<300℃
Range of force; PN1.6 ~ 1.6MPa
Valve body material; Cast steel, stainless steel, molybdenum containing stainless steel, Monel
Applicable media; Water, steam, petroleum products, nitric acid, acetic acid, hydrogen, oxygen, urea, hydrofluoric acid, etc
Please contact us if you need customized services. We will contact you with the price and availability in 24 hours.
| Product | Product Code | Purity | Size | Contact Us |
UJ41H Plunger globe Valve Structure and working principle:
Plunger type globe valve is composed of body, valve cover, stem, plunger, sealing ring, hand wheel and other parts.
When the handwheel rotates, the valve stem drives the plunger to move up and down in the middle of the hole frame to complete the valve opening and closing function.
Interference fit is used between the plunger and the sealing ring in the valve. The sealing ring is compressed by adjusting the clamping bolt of the valve cover, and the outer ring of the inner ring is close to the inner wall of the valve chamber, so that the radial force generated on the sealing ring will be the pressure of the fluid, so as to ensure the tightness and eliminate the external leakage.
Because the sealing ring uses a non-toxic new sealing material with strong resilience and high permeability, the sealing is reliable and durable. The sealing part of the cone of the valve seat and the plunger is made of high quality resistant material to ensure the service life of the valve.
UJ41H Plunger globe Valve Product features:
1, rapid action, small torque, when switching the plunger valve, the plunger moves slowly in the sealing ring, and the contact surface is almost not worn.
2. Interference fit is used between the plunger and the sealing ring in the valve to ensure the tightness of the valve and eliminate internal and external leakage.
3, the sealing ring is made of non-toxic new sealing materials with strong elasticity and high wear resistance, so the sealing is reliable, durable, wear resistant and corrosion resistant.
4. When closed, the plunger is inserted into the lower seal ring to cut off the flow path; When opened, although the plunger is separated from the lower sealing ring, it is still hidden in the upper sealing ring to maintain isolation from the outside world and prevent leakage
