Product Code : VF--ZSCC-ZS7-CU
The valve cover is fixed on the upper part of the valve body and a valve stem through the valve cover, the outer end is fixed to the transmission device, and the inner end is fixed to the upper and lower body of the piston
Diameter range; DN15 ~ 500mm
Applicable temperature <425℃-<300℃
Range of force; PN1.6 ~ 1.6MPa
Valve body material; Cast steel, stainless steel, molybdenum containing stainless steel, Monel
Applicable media; Water, steam, petroleum products, nitric acid, acetic acid, hydrogen, oxygen, urea, hydrofluoric acid, etc
Please contact us if you need customized services. We will contact you with the price and availability in 24 hours.
| Product | Product Code | Purity | Size | Contact Us |

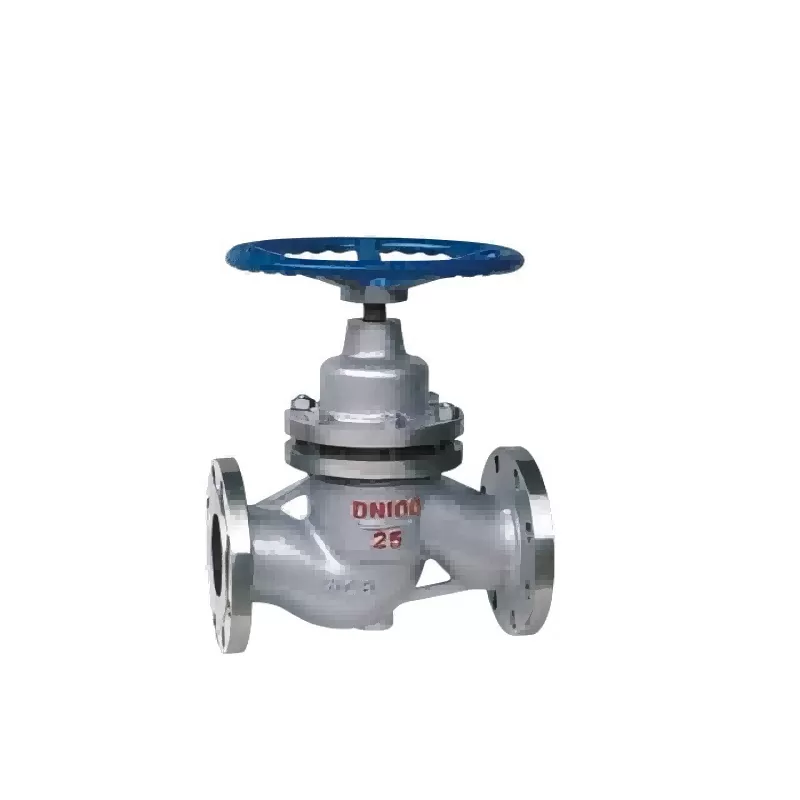

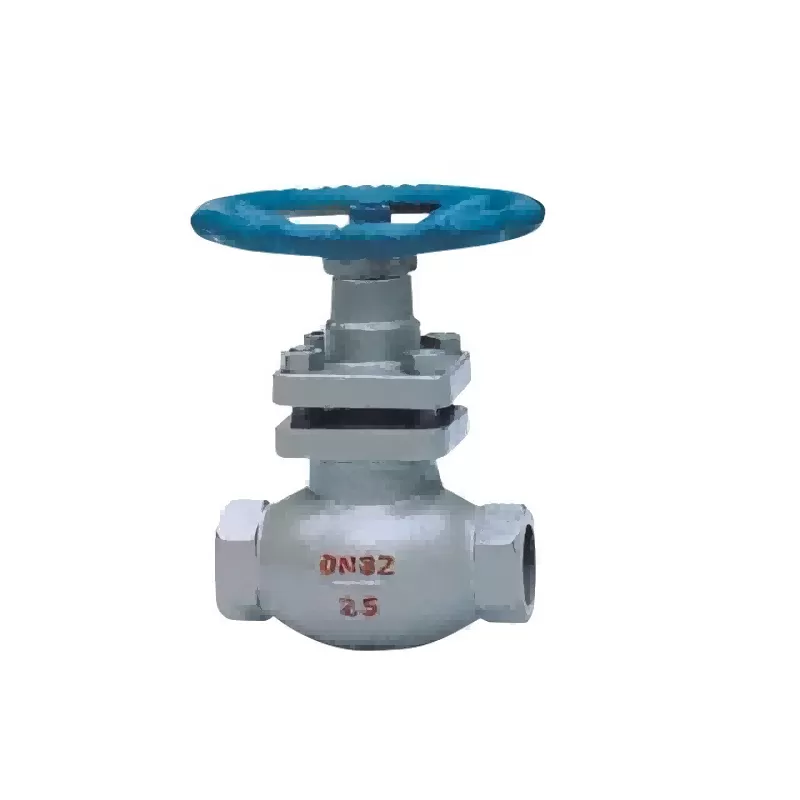

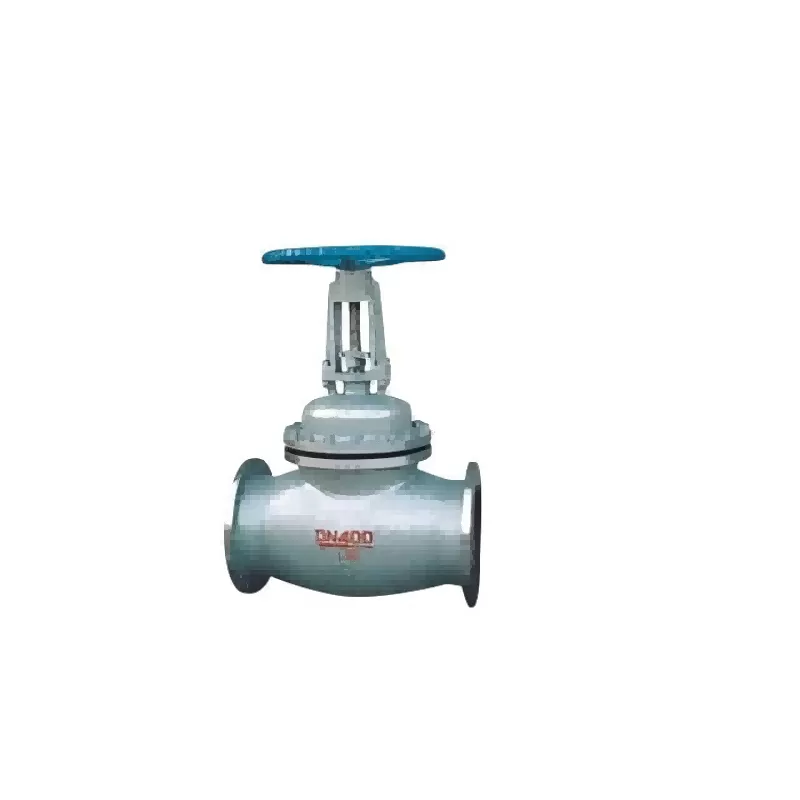

U46SM Balanced Piston Valve Product introduction:
It is a utility model valve based on the characteristics of the plunger valve and throttle valve, and the integration of new technology, and developed. The surface of the plunger is processed by a high-precision cylindrical grinder, and the sealing ring is made of non-toxic new sealing materials with strong elasticity and high wear resistance, so the sealing is reliable and durable, thus improving the service life of the plunger valve.
U46SM Balanced plunger valve working principle:
Is the structure of the new product, the valve cover is fixed in the upper part of the valve body a stem through the valve cover, the outer end is fixed to the transmission device, the inner end is fixed to the upper and lower body of the piston, and the side between the two, forming a ring groove, in the lower part of the ring groove sleeve a metal sealing ring, the upper part sleeve a non-metal piston ring, A stainless steel cylinder liner and a valve seat are arranged inside the valve body to match the piston.
U46SM Balanced Piston valve Features:
1, when switching the plunger valve, the plunger moves slowly in the sealing ring, and the contact surface is almost not worn.
2, the sealing ring is made of non-toxic new sealing materials with strong elasticity and high wear resistance, so the sealing is reliable and durable.
3. Interference fit is used between the plunger and the sealing ring in the valve to ensure the tightness of the valve and eliminate internal and external leakage.
4. When closed, the plunger is inserted into the lower seal ring to cut off the flow path; When opened, although the plunger is separated from the lower sealing ring, it is still hidden in the upper sealing ring to maintain isolation from the outside world and prevent leakage
Is the structure of the new product, the valve cover is fixed in the upper part of the valve body a stem through the valve cover, the outer end is fixed to the transmission device, the inner end is fixed to the upper and lower body of the piston, and the side between the two, forming a ring groove, in the lower part of the ring groove sleeve a metal sealing ring, the upper part sleeve a non-metal piston ring, A stainless steel cylinder liner and a valve seat are arranged inside the valve body to match the piston.
