U45SM straight flow plunger valve, straight flow plunger valve

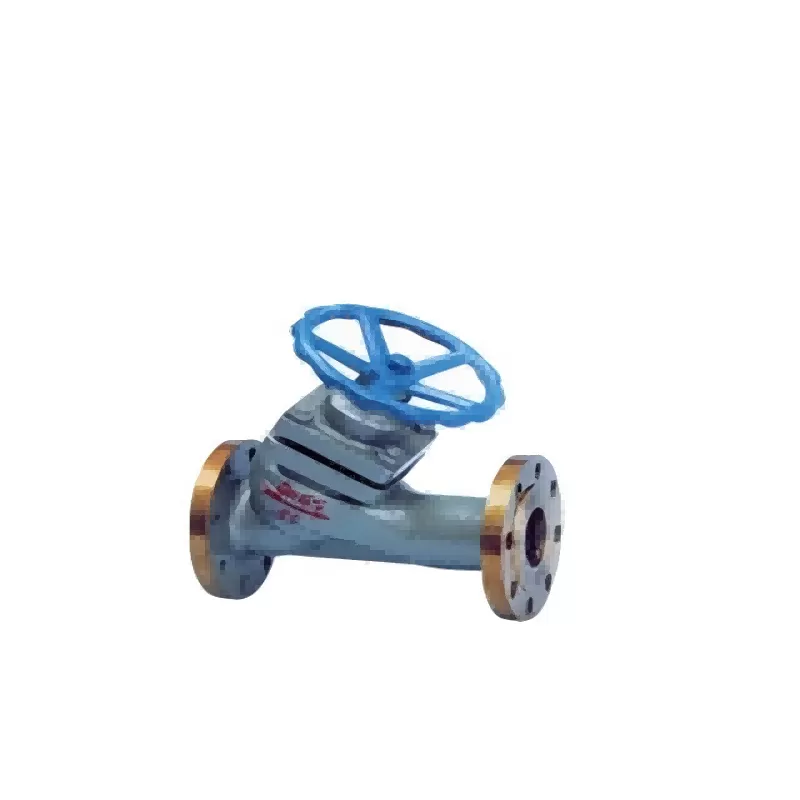

U45SM Direct Flow plunger Valve Product introduction:

The biggest advantage is that the medium has less internal flow balance turning corners. The straight-through flow line is a two-way shape, the angular flow line is a right Angle shape, and the straight-through flow line is a straight manifold, according to the measurement of the flow resistance coefficient of the three plunger valves DN100mm, the flow resistance coefficient of the straight-through stop valve is 4.1, the flow resistance coefficient of the DN100mm Angle stop valve is 3.8, and the flow resistance coefficient of the DN100mm straight-through stop valve is 0.5, the resistance is greatly reduced.

The surface of the plunger is processed by a high-precision cylindrical grinder, and the sealing ring is made of non-toxic new sealing materials with strong elasticity and high wear resistance, so the sealing is reliable and durable, thus improving the service life of the plunger valve.

U45SM Direct flow piston valve working principle:

When the handwheel rotates, the valve stem drives the plunger to move up and down in the middle of the hole frame to complete the valve opening and closing function. Interference fit is adopted between the plunger and the sealing ring in the valve, and the lateral force generated by the compression of the sealing ring is sealed with the hole surface of the valve body and the outer circle of the plunger by adjusting the flange bolt of the gland, so as to ensure the sealing of the valve.

U45SM Direct Flow Piston Valve Features:

1, when switching the plunger valve, the plunger moves slowly in the sealing ring, and the contact surface is almost not worn.

2, the sealing ring is made of non-toxic new sealing materials with strong elasticity and high wear resistance, so the sealing is reliable and durable.

3. Interference fit is used between the plunger and the sealing ring in the valve to ensure the tightness of the valve and eliminate internal and external leakage.

4. When closed, the plunger is inserted into the lower seal ring to cut off the flow path; When opened, although the plunger is separated from the lower sealing ring, it is still hidden in the upper sealing ring to maintain isolation from the outside world and prevent leakage.

The advantage of the direct-flow plunger valve is that the medium has less internal flow balance turning corners. The straight flow line is the straight flow line and the straight flow line is the straight flow line, because the surface of the plunger is processed by a high-precision cylindrical grinder. The sealing ring is made of non-toxic new sealing material with strong elasticity and high wear resistance, so the sealing is reliable and durable. Thus improving the service life of the plunger valve, in a short period of time, the plunger valve can not be used in the pipe with a large temperature difference between hot and cold.
