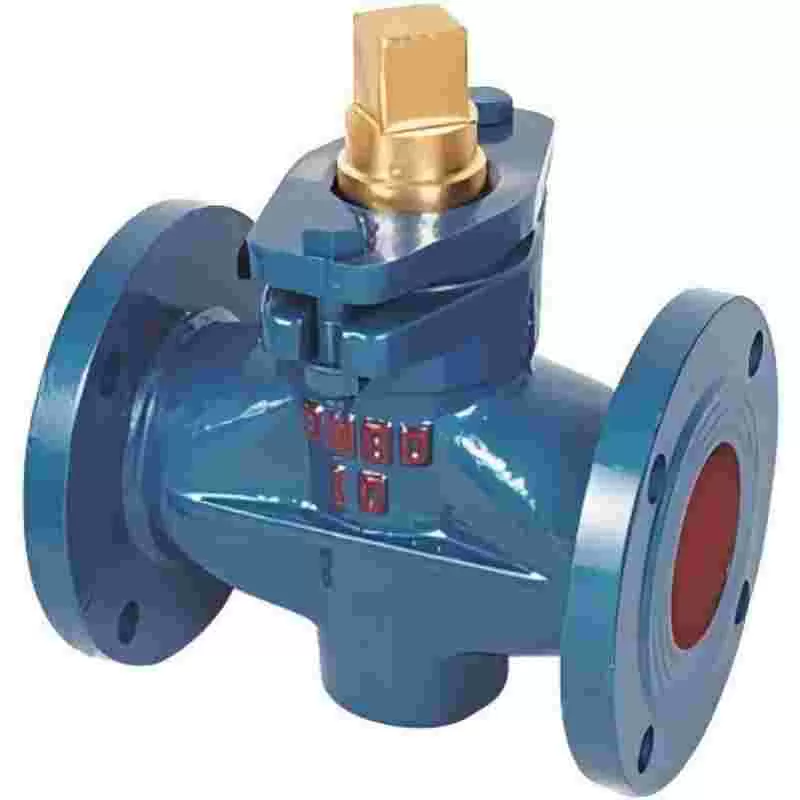

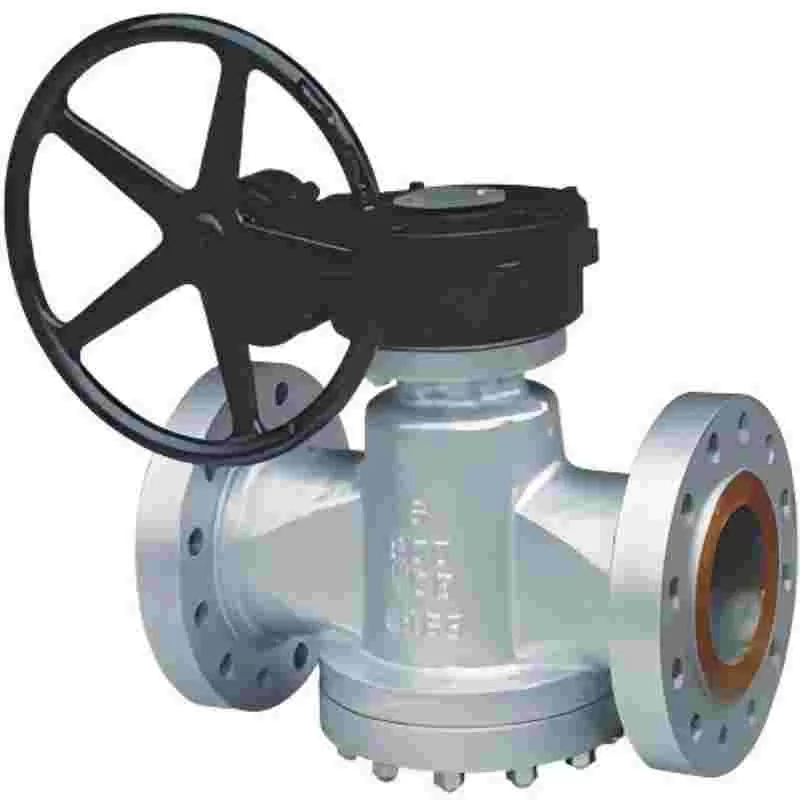

Pressure balanced inverted oil seal plug valve，Plug valve

Product features:

① American standard pressure balance inverted oil seal plug valve product structure is reasonable, reliable sealing, excellent performance, beautiful appearance; ② American standard oil seal plug valve inverted pressure balance structure, light switch action; ③ An oil groove is arranged between the valve body and the sealing surface, and the sealing grease can be injected into the valve seat at any time through the oil nozzle to increase the sealing performance; ④ The material and flange size of the parts can be reasonably selected according to the actual working conditions or user requirements to meet various engineering needs.

American standard pressure balance inverted oil seal plug valve: flange connection, oil seal straight through structure, plug sealing surface material is alloy steel or stainless steel, pressure level is 150Lb~900Lb, body material is carbon steel or stainless steel plug valve. Suitable for the nominal pressure Class150~900Lbs, working temperature -29~180℃ petroleum, chemical, pharmaceutical, chemical fertilizer, power industry and other working conditions of the pipeline, cut off or connect the pipeline medium.

Packing of Standard Packing:

Typical bulk packaging includes palletized plastic 5 gallon/25 kg. pails, fiber and steel drums to 1 ton super sacks in full container (FCL) or truck load (T/L) quantities. Research and sample quantities and hygroscopic, oxidizing or other air sensitive materials may be packaged under argon or vacuum. Solutions are packaged in polypropylene, plastic or glass jars up to palletized 470 gallon liquid totes Special package is available on request. E FORUs’  is carefully handled to minimize damage during storage and transportation and to preserve the quality of our products in their original condition.
