Product Code : VF--XCC-X29-CU
Common materials: cast steel, cast iron, stainless steel, brass, etc
Product specification: DN25~DN300
Working pressure: 0.6MPa~1.6Mpa
Applicable media: water, gas, oil, etc
Working temperature: ≤ 100 ℃
Please contact us if you need customized services. We will contact you with the price and availability in 24 hours.
| Product | Product Code | Purity | Size | Contact Us |

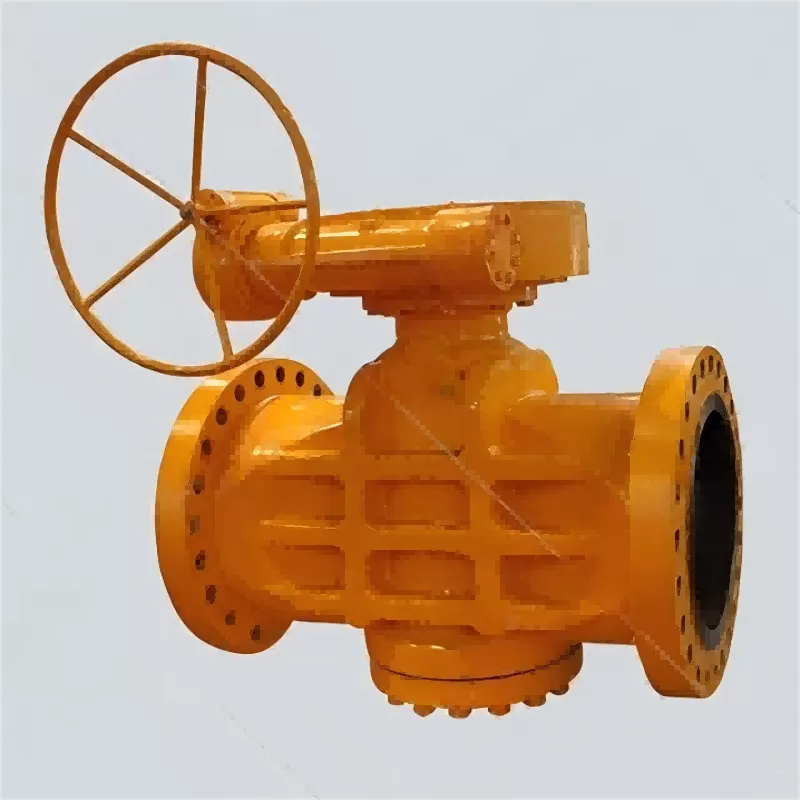

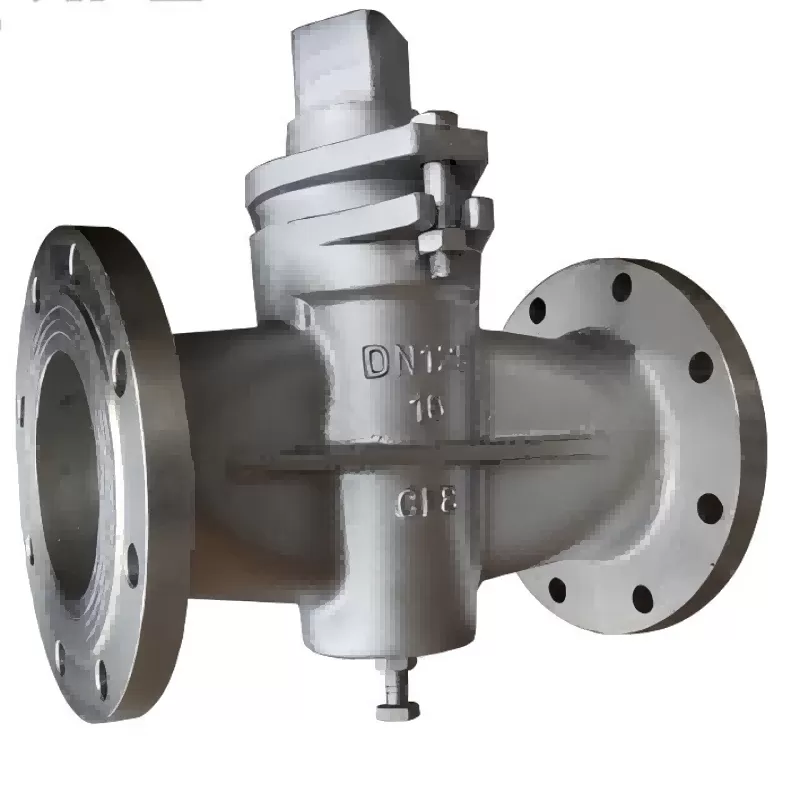

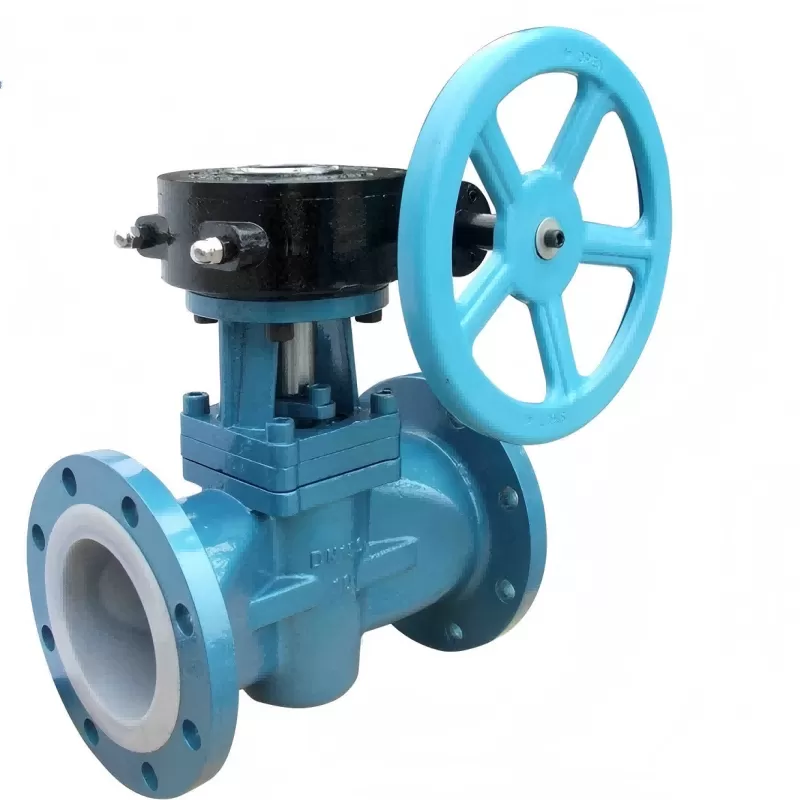

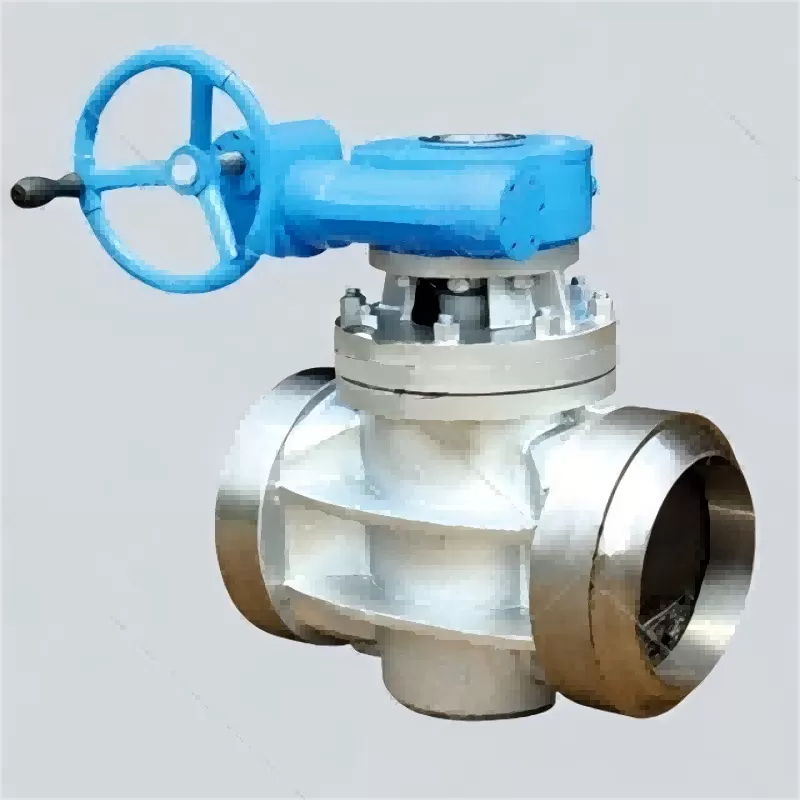

Open type plug valve is a closed piece or plunger shaped rotary valve, which can be opened or closed by rotating 90 degrees to make the passage port on the valve plug connect or separate from the passage port on the valve body. The plug of open type plug valve can be cylindrical or conical in shape. In the cylindrical valve plug, the channel is generally rectangular; In the tapered plug, the passage is trapezoidal. These shapes make the structure of two-way open plug valve lighter, but at the same time, they also produce some losses. Plug valve Z is suitable for cutting off and connecting medium as well as diverting, but it can also be used for throttling sometimes according to the applicable nature and erosion resistance of sealing surface.
1. Open type plug valve is suitable for frequent operation, with quick and light opening and closing
2. Simple structure, relatively small size, light weight, and easy maintenance
3. It is not limited by the installation direction, and the flow direction of media can be arbitrary
Open type plug valve is a closed piece or plunger shaped rotary valve, which can be opened or closed by rotating 90 degrees to make the passage port on the valve plug connect or separate from the passage port on the valve body. The plug of open type plug valve can be cylindrical or conical in shape. In the cylindrical valve plug, the channel is generally rectangular; In the tapered plug, the passage is trapezoidal. These shapes make the structure of two-way open plug valve lighter, but at the same time, they also produce some losses. Plug valve Z is suitable for cutting off and connecting medium as well as diverting, but it can also be used for throttling sometimes according to the applicable nature and erosion resistance of sealing surface.
Packing of Standard Packing:
Typical bulk packaging includes palletized plastic 5 gallon/25 kg. pails, fiber and steel drums to 1 ton super sacks in full container (FCL) or truck load (T/L) quantities. Research and sample quantities and hygroscopic, oxidizing or other air sensitive materials may be packaged under argon or vacuum. Solutions are packaged in polypropylene, plastic or glass jars up to palletized 470 gallon liquid totes Special package is available on request. E FORUs’ is carefully handled to minimize damage during storage and transportation and to preserve the quality of our products in their original condition.
