Product Code : VF--XCC-X24-CU
Nominal diameter: DN50~300mm
Pressure range: PN10Mpa
Operating temperature: -29 ~ 100℃
Main material: gray cast iron
Design standards: API 6D, API599
Structure length: ASME B16.10, GB/T 12221, HG/T 3704
Connection standard: ASME B16.5, GB/T 9113
Pressure test: API 598, GB/T 13927
Pressure-temperature class: ASME B16.34, GB/T 12224
Please contact us if you need customized services. We will contact you with the price and availability in 24 hours.
| Product | Product Code | Purity | Size | Contact Us |

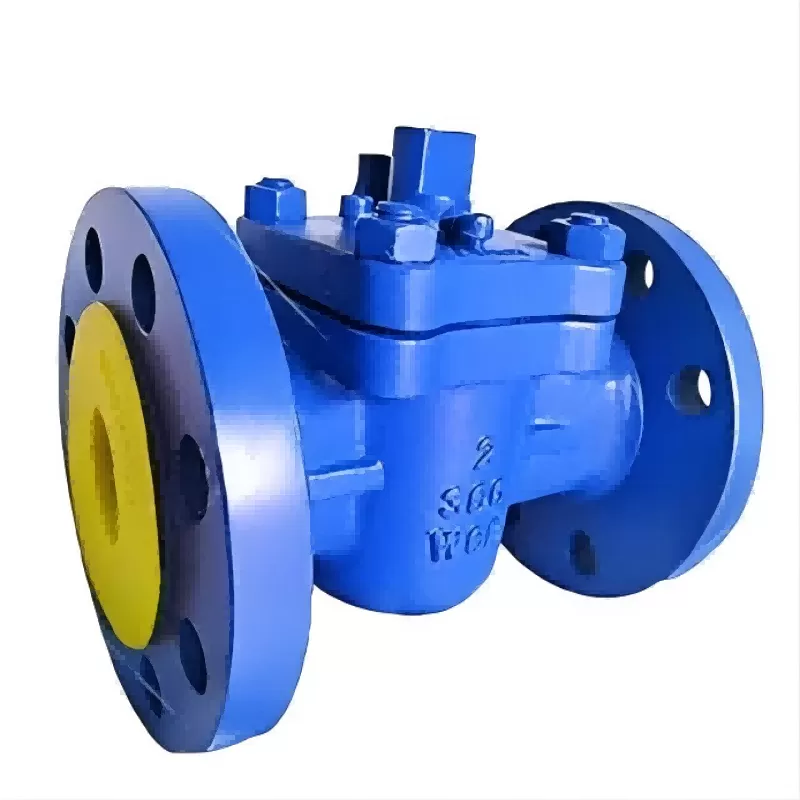

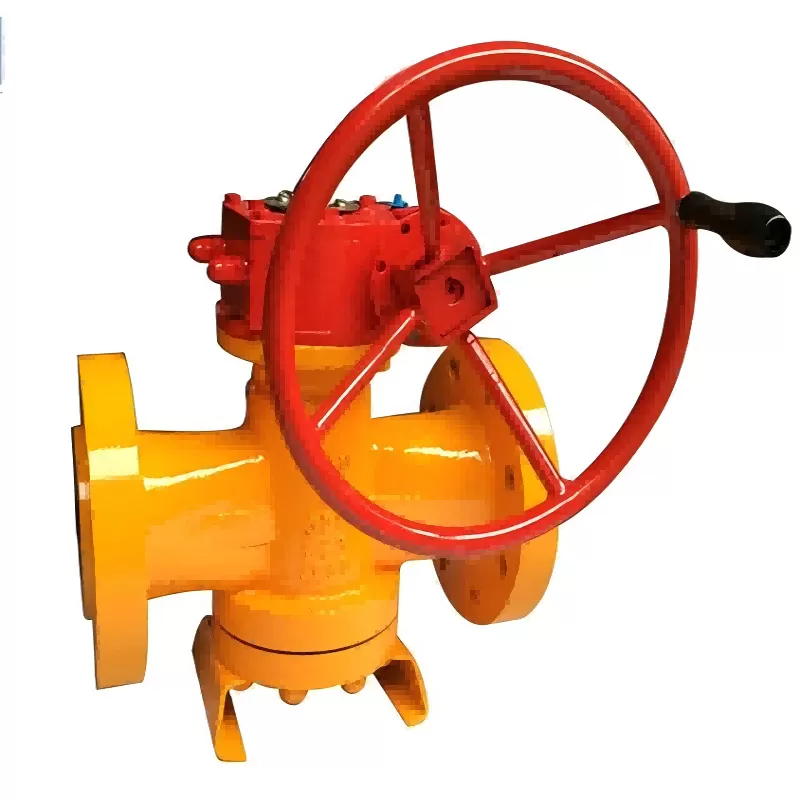

The opening and closing part of the oil seal plug valve is a cylinder with holes, and the cylinder and the valve stem rotate around the axis perpendicular to the channel, so as to achieve the purpose of opening and closing the channel. Suitable for the nominal pressure PN10, working temperature -29 ~ 100℃ urban construction, chemical, metallurgy, petroleum, pharmaceutical, food, beverage, environmental protection industry and other working conditions of the pipeline, cut off or connect the pipeline medium.
The opening and closing part of the oil seal plug valve is a cylinder with holes, and the cylinder and the valve stem rotate around the axis perpendicular to the channel, so as to achieve the purpose of opening and closing the channel. Suitable for the nominal pressure PN10, working temperature -29 ~ 100℃ urban construction, chemical, metallurgy, petroleum, pharmaceutical, food, beverage, environmental protection industry and other working conditions of the pipeline, cut off or connect the pipeline medium.
