Product Code :

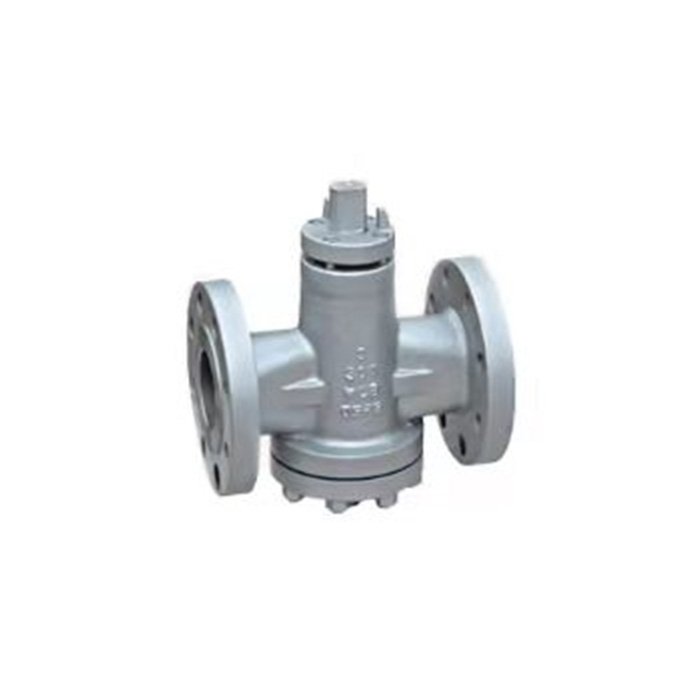

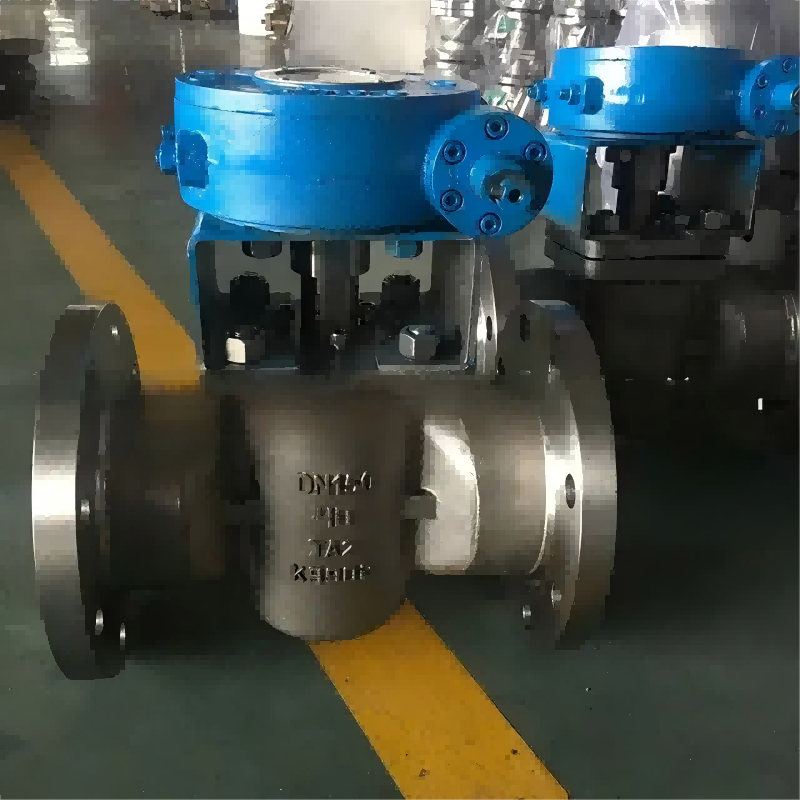

Lubricated plug valve product range ：
1.Pressure range ：CLASS 150Lb~1500Lb
2.Nominal diameter ： NPS 2~12″
3.Body material：Carbon steel, Stainless steel, duplex stainless steel, Alloy steel, Nickel alloy
4.End connection ：RF RTJ BW
5.Mode of operation： Lever, Gear box, Electric, Pneumatic, hydraulic device, Pneumatic-hydraulic device;
Please contact us if you need customized services. We will contact you with the price and availability in 24 hours.
| Product | Product Code | Purity | Size | Contact Us |
Lubricated plug valve product features：
1.Top entry design, convenient for on-line maintenance;
2.Grease sealing design,with good sealing performance;
3.Sealing with adjustable design;
4.Bidirectional seals,no limitation on the flow direction;
Main features:
Plug is pressed into body cone surface tightly to form a good sealing area, and injects sealant into the sealing area to form a sealing film. Lubricated plug valve is a kind of bidirectional valve, which can be widely used in oilfield exploitation, transportation and refining plant, while also can be used in petrochemical, chemical, gas, LNG, heating and ventilation industries and etc.
Packing of Standard Packing:
Typical bulk packaging includes palletized plastic 5 gallon/25 kg. pails, fiber and steel drums to 1 ton super sacks in full container (FCL) or truck load (T/L) quantities. Research and sample quantities and hygroscopic, oxidizing or other air sensitive materials may be packaged under argon or vacuum. Solutions are packaged in polypropylene, plastic or glass jars up to palletized 470 gallon liquid totes Special package is available on request. E FORUs’ is carefully handled to minimize damage during storage and transportation and to preserve the quality of our products in their original condition.
