Product Code : VF--XCC-X19-CU
Nominal diameter: NPS1/24"~14"
Pressure range: Class150~600Lb
Operating temperature: -29~180℃
Main material: WCB, WC6, WC9, C5, C12, CF8, CF8M, CF3, CF3M, CN7M, LCB, LCC
Driving mode: manual, worm gear
Design standards: API 6D, API599
Construction length: ASME B16.10
Connection standard: ASME B16.5
Pressure test: API 598
Pressure - temperature rating: ASME B16.34
Please contact us if you need customized services. We will contact you with the price and availability in 24 hours.
| Product | Product Code | Purity | Size | Contact Us |
Product characteristics
1, the product structure is reasonable, reliable sealing, excellent performance, beautiful shape;
2, American standard oil seal plug valve inverted pressure balance structure, light switch action;
3, the valve body and sealing surface between the oil groove, can be injected into the valve seat through the oil nozzle at any time to increase the sealing performance;
4. The material and flange size of the parts can be reasonably selected according to the actual working conditions or user requirements to meet various engineering needs.

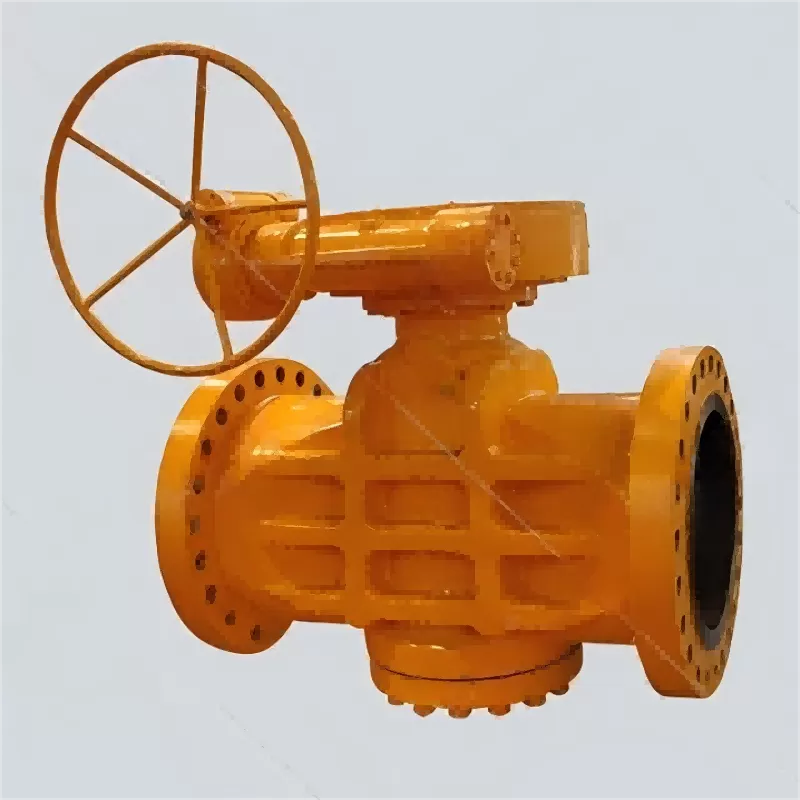

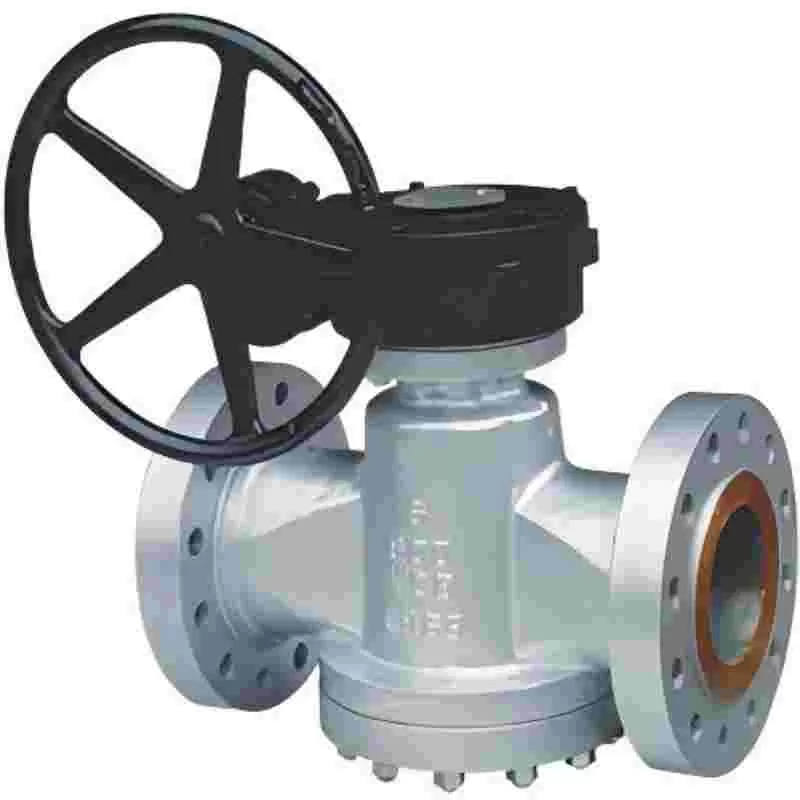

Inverted oil seal pressure balance plug valve is suitable for the nominal pressure CLASS150-CLASS600, the working temperature is -29-180℃ petroleum, chemical, pharmaceutical, fertilizer, power industry and other working conditions of the pipeline, cut off or connect the pipeline medium. The inverted oil seal plug valve is provided with an oil groove between the body and the sealing surface, which can be injected into the seat through the oil nozzle at any time to increase the sealing performance. The parts material and flange size of the flip oil seal plug valve can be reasonably selected according to the actual working conditions or user requirements to meet various engineering needs.
