Product Code : VF--ZCC-Z62-CU

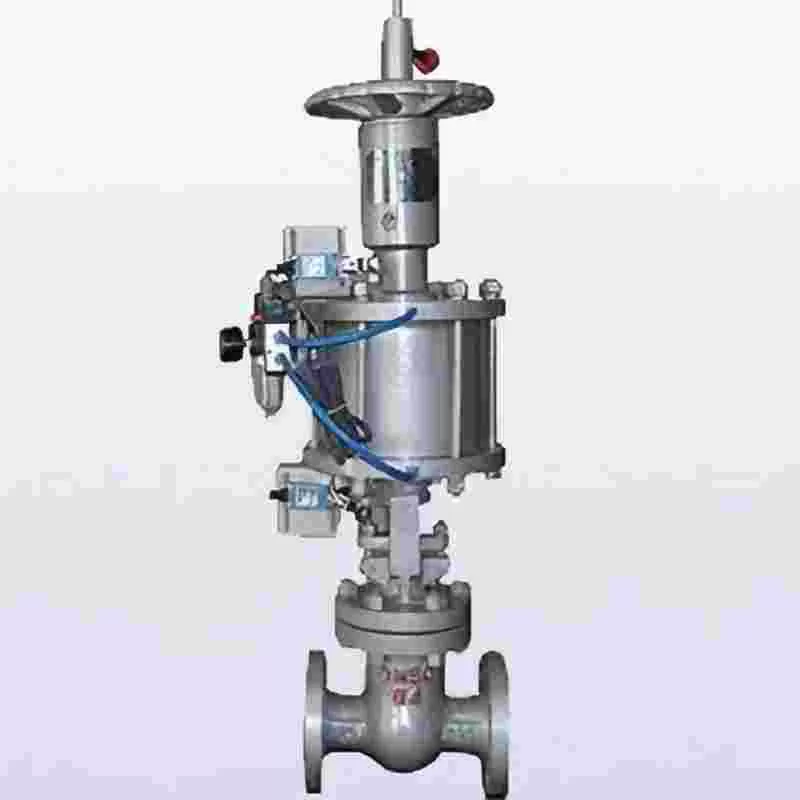

Z641H Pneumatic manual gate valve Overview:
Pneumatic manual gate valve is referred to as pneumatic gate valve, because of its excellent cutting performance, it is widely used in the industrial field. The actuator of the pneumatic gate valve has two functions: positive and reverse, so the opening and closing modes of the valve have two modes of action: gas opening and gas closing. Gate valve adopts metal contact type unique structure, reliable operation, has extremely high cutting performance, superior to conventional cutting valve. Leakage is allowed to reach 10-8×KV. Wide range of use, temperature can be from -196℃ to 500℃, caliber as small as 50mm, as large as 600mm. The seats are available in parallel, 60°V and 90°V notches to meet the needs of different applications.
Please contact us if you need customized services. We will contact you with the price and availability in 24 hours.
| Product | Product Code | Purity | Size | Contact Us |
1, the air source is input by the intake pipe, and the appropriate amount of lubricant is brought through the oil mist.
2. When the air source enters the solenoid valve, the solenoid valve automatically opens the (upper) or (lower) gas transmission pipe.
3. When the air source enters the upper air port of the cylinder, push the piston to the lower part, so that the piston contacts the next signal ejector, at this time the signal return, that is, the valve is closed.
4, when the air source enters the lower air intake of the cylinder, push the piston to the upper part, so that the piston contacts the upper return ejector, at this time the return signal will return, that is, the valve is opened.
5, continuous operation, according to the above principles for round-trip movement.
Pneumatic manual gate valve is referred to as pneumatic gate valve, because of its excellent cutting performance, it is widely used in the industrial field.
