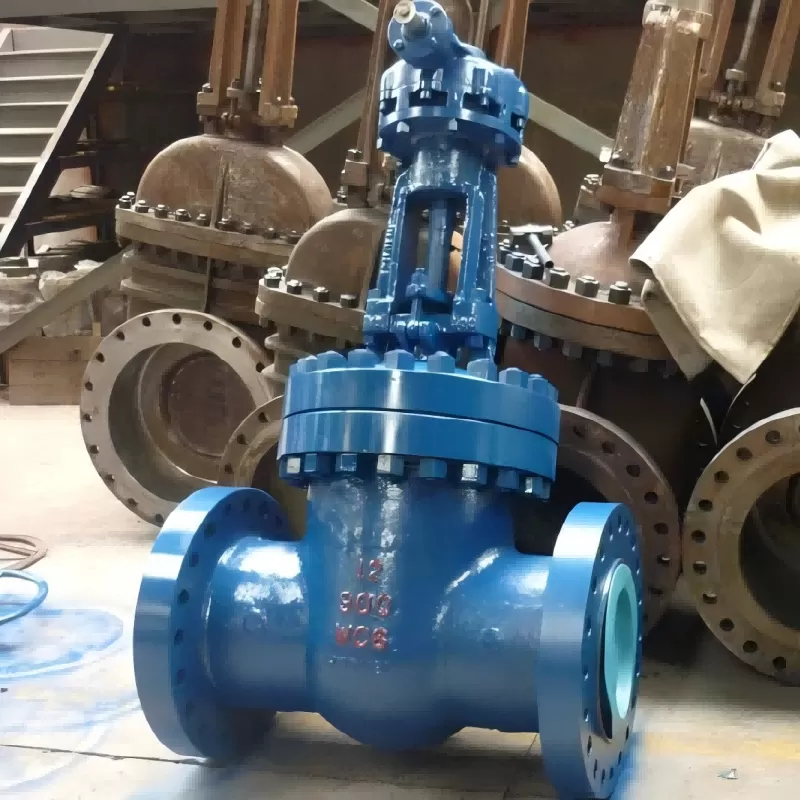

Z541H high temperature gate valve,high temperature gate valve,gate valve

1, compact structure, reasonable design, good valve rigidity, smooth channel, flow coefficient is small

2, sealing surface of stainless steel and hard alloy, long service life

3, the use of flexible graphite filler, reliable sealing, light and flexible operation

4, the driving mode is manual, pneumatic, electric, gear transmission

5, the structure is elastic wedge type single ram, rigid wedge type single ram double ram type

Z541H High temperature gate valve implementation standard:

Design specification: GB/T 12234

Structure length: GB/T 12221

Connection flange: JB/T 79

Test and inspection: JB/T 9092

Pressure-temperature: GB/T 9131

Product ID: GB/T 12220

Z541H high temperature gate valve is suitable for the pipeline of various systems of petroleum, chemical, hydraulic and thermal power stations with working pressure of 1.6~20.0MPa and working temperature of -29℃~570℃, to cut off or connect the pipeline medium. Applicable media: water, oil, steam, acid, alkali, ammonia, urea, sulfur-containing natural gas, etc.

Packing of Standard Packing:

Typical bulk packaging includes palletized plastic 5 gallon/25 kg. pails, fiber and steel drums to 1 ton super sacks in full container (FCL) or truck load (T/L) quantities. Research and sample quantities and hygroscopic, oxidizing or other air sensitive materials may be packaged under argon or vacuum. Solutions are packaged in polypropylene, plastic or glass jars up to palletized 470 gallon liquid totes Special package is available on request. E FORUs’  is carefully handled to minimize damage during storage and transportation and to preserve the quality of our products in their original condition.
