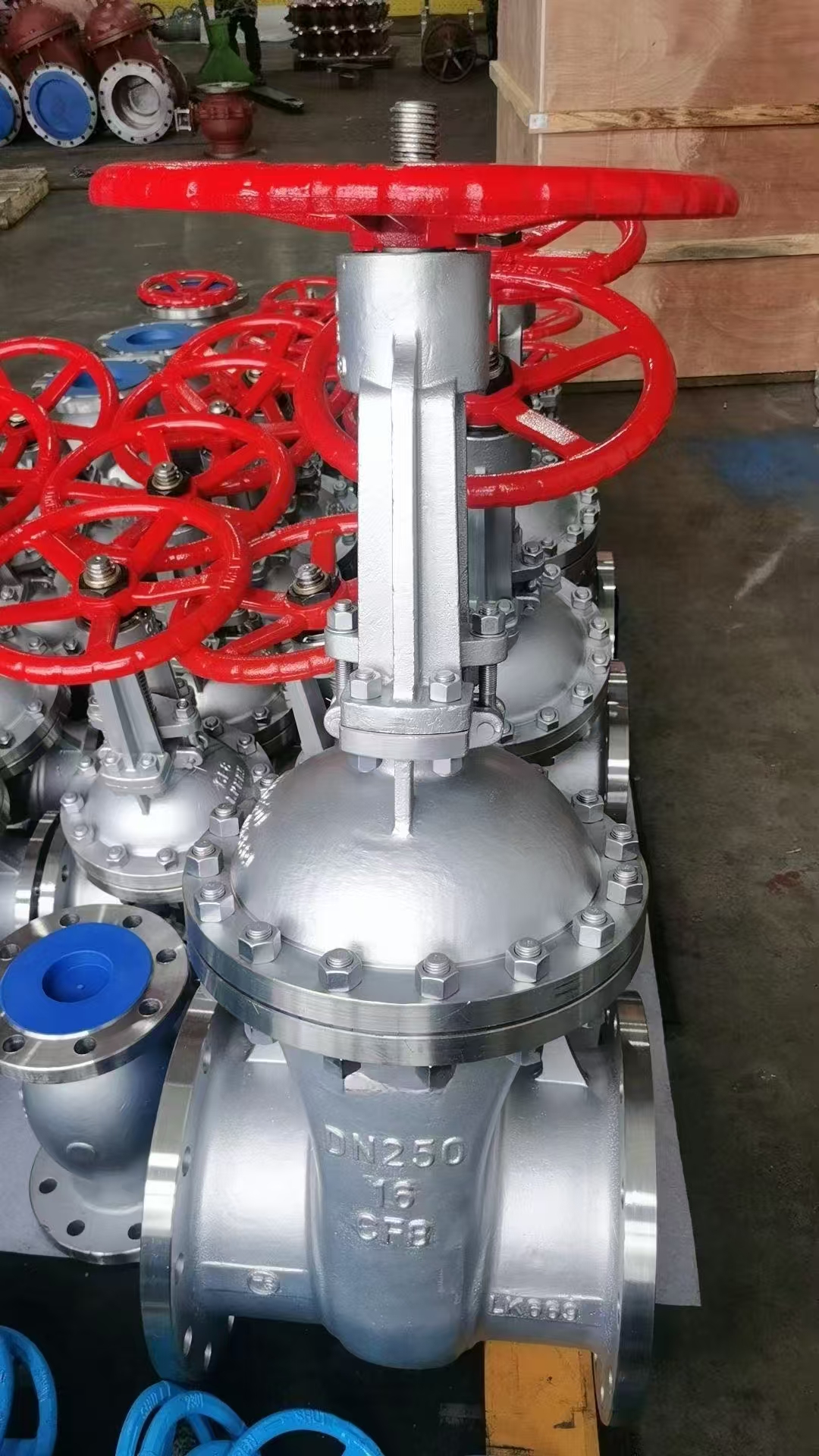

Product Code : VF--ZCC-Z16-CU
Product model: Z41W/Y
Nominal pressure: PN1.0~16.0MPa
Nominal diameter: DN50~1600mm
Main material: stainless steel
Applicable medium: water, acid and alkali corrosion of oil, etc
Design specification: GB/T12234
Structure length: GB/T 12221
Flange connection: GB/T 9113 JB/T 79
Test and inspection: GB/T 13927JB /T9092
Driving mode; Bevel gear, electric, pneumatic and other driving devices.
widely used in petroleum, chemical, thermal power plants and other oil, water vapor pipeline through or cut-off pipeline medium
Support non-standard customization
Please contact us if you need customized services. We will contact you with the price and availability in 24 hours.
| Product | Product Code | Purity | Size | Contact Us |
Product characteristics
1. The two sealing surfaces of the most commonly used wedge gate valves form a wedge, and the wedge Angle varies with the valve parameters, usually 50; The gate plate of the wedge valve can be made into a whole, which is called the rigid gate plate; It can also be made to produce a micro deformation of the gate, in order to improve its processability, make up for the sealing surface Angle in the processing of the deviation, this gate is called elastic gate;
2, reliable sealing, excellent performance; Under normal circumstances, the wedge type elastic ram structure is used, and the large diameter rolling bearing is set, which is easy to open and close; Wedge gate valve has simple shape, short structure length, good manufacturing process and wide application range;

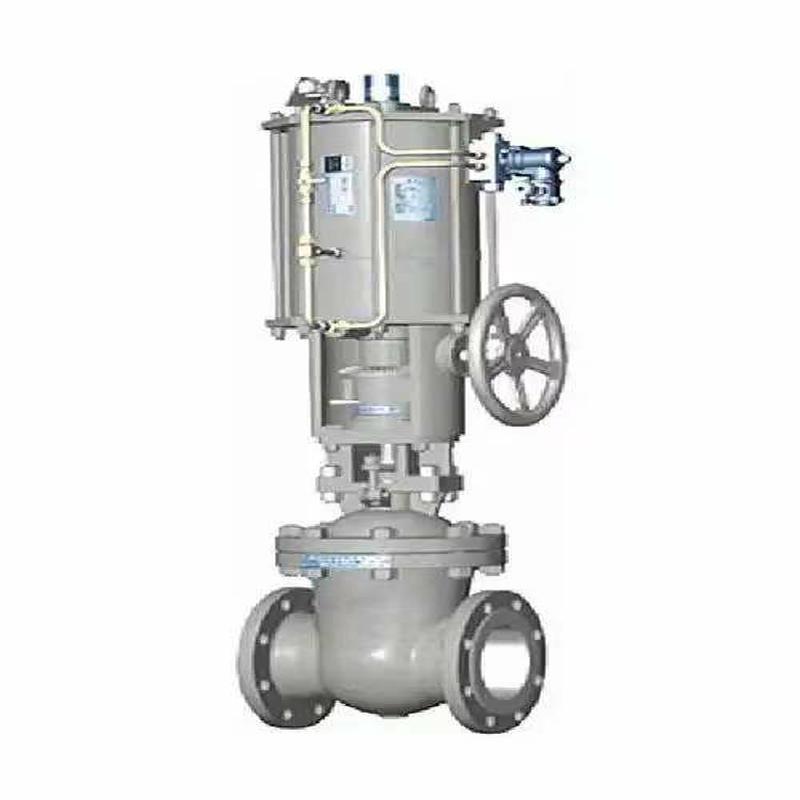

3. Bevel gear, electric and pneumatic driving devices can be selected according to the user.
Product use
Stainless steel gate valve with small fluid resistance, sealing surface by impact erosion is small, does not change the flow of the medium, does not disturb the flow, small pressure drop and other characteristics, suitable for a wide range of pressure, temperature, is a common cut-off valve, widely used in petroleum, chemical, thermal power plants and other oil, water vapor pipeline through or cut-off pipeline medium. (Not to be used as a throttle valve).
