Product Code : VF--ZCC-Z40-CU
Bode material: cast steel, stainless steel
Product category: soft seal gate valve series
Product model: RRHX/Z41X
Pressure rating: 1.0MPa, 1.6MPa
Pressure resistance of valve body: 1.5MPa, 2.4MPa
Sealing test: 1.1MPa, 1.76MPa
Please contact us if you need customized services. We will contact you with the price and availability in 24 hours.
| Product | Product Code | Purity | Size | Contact Us |

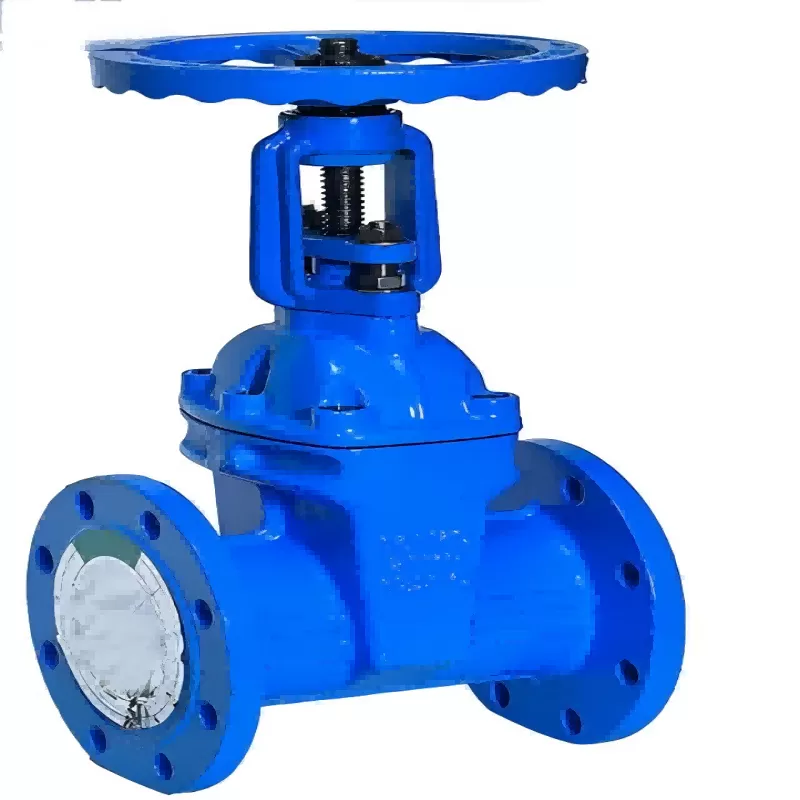

The rising stem gate valve is an industrial valve. The opening and closing parts of the gate valve are rams. The movement direction of the ram is perpendicular to the direction of the fluid. The gate valve can only be fully opened and closed, and cannot be adjusted or throttled. The gate has two sealing surfaces. The two sealing surfaces of the most common mode gate valve form wedges. The wedge angle varies with the valve parameters, usually 50. When the medium temperature is not high, it is 2 ° 52 ”
1. Overall rubber coating: the rising stem soft seal gate valve adopts overall rubber coating, which has good coverage performance and accurate geometric dimensions to ensure reliable sealing and service life.
2. Light weight: the valve body is made of ductile iron, which is light and easy to install.
3. Flat bottom valve seat: the bottom adopts the same flat bottom valve seat design as that of the water pipe, which will not produce sundries and will be more reliable in sealing.
4. Corrosion resistance: the inner chamber of the gate valve is coated with non-toxic epoxy resin to prevent corrosion and rust. It can not only be used for drinking, but also for sewage system.
The rising stem gate valve is an industrial valve. The opening and closing parts of the gate valve are rams. The movement direction of the ram is perpendicular to the direction of the fluid. The gate valve can only be fully opened and closed, and cannot be adjusted or throttled. The gate has two sealing surfaces. The two sealing surfaces of the most common mode gate valve form wedges. The wedge angle varies with the valve parameters, usually 50. When the medium temperature is not high, it is 2 ° 52 ”
Packing of Standard Packing:
Typical bulk packaging includes palletized plastic 5 gallon/25 kg. pails, fiber and steel drums to 1 ton super sacks in full container (FCL) or truck load (T/L) quantities. Research and sample quantities and hygroscopic, oxidizing or other air sensitive materials may be packaged under argon or vacuum. Solutions are packaged in polypropylene, plastic or glass jars up to palletized 470 gallon liquid totes Special package is available on request. E FORUs’ is carefully handled to minimize damage during storage and transportation and to preserve the quality of our products in their original condition.
