Product Code : VF--ZCC-Z52-CU
Nominal diameter; DN50-500
Nominal pressure (MPa)1.0 ~ 1.6
Shell test (MPa)1.5 ~ 2.4
Seal test (MPa)1.1 ~ 1.8
Operating temperature ≤100℃
Applicable media pulp, sewage, coal slurry, ash, slag water mixture
Body, lid; Stainless steel, carbon steel, gray cast iron
Ram; Carbon steel, stainless steel
Valve stem; Stainless steel
Sealing surface; Rubber, PTFE, stainless steel, carbide
Please contact us if you need customized services. We will contact you with the price and availability in 24 hours.
| Product | Product Code | Purity | Size | Contact Us |

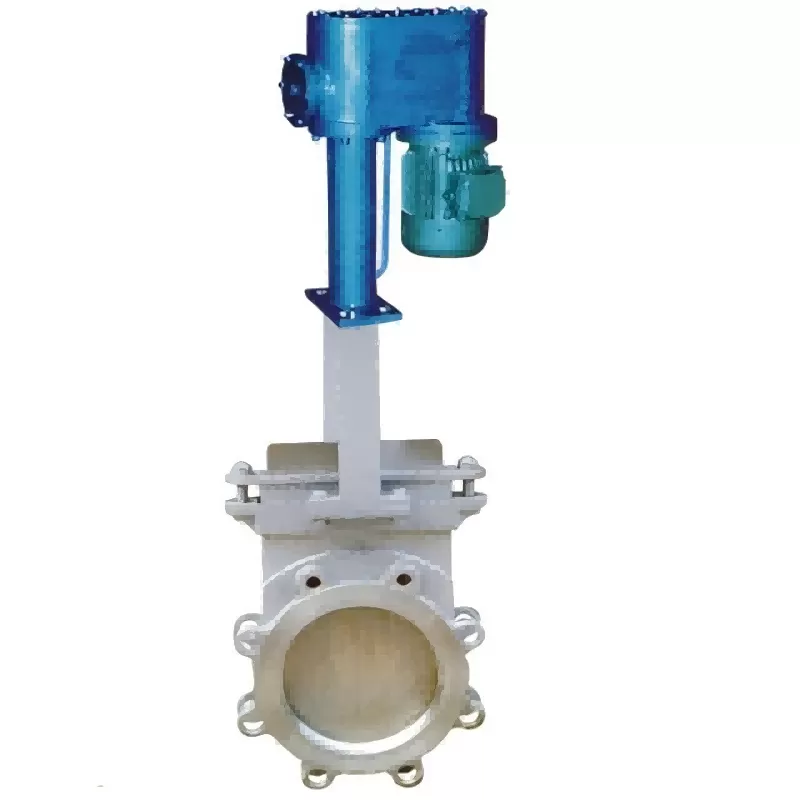

PZ243 Electro-hydraulic clamping knife gate valve Product Introduction:
It has the advantages of simple and compact structure, reasonable design, light material saving, reliable sealing, light and flexible operation, small size, smooth channel, small flow resistance, light weight, easy installation and easy disassembly, etc., and can work normally under the working pressure of 1.0MPa-2.5MPa and the operating temperature of -29-650℃.
Product implementation standards:
Design and manufacture: JB/T8691-1998
structural length: GB/T15188.2-94
Flange connection: GB/T9113.1-2000 JB/T79-94
testing and acceptance: GB/T13927-92
It has the advantages of simple and compact structure, reasonable design, light material saving, reliable sealing, light and flexible operation, small size, smooth channel, small flow resistance, light weight, easy installation and easy disassembly, etc., and can work normally under the working pressure of 1.0MPa-2.5MPa and the operating temperature of -29-650℃.
