Product Code : VF--ZCC-Z45-CU

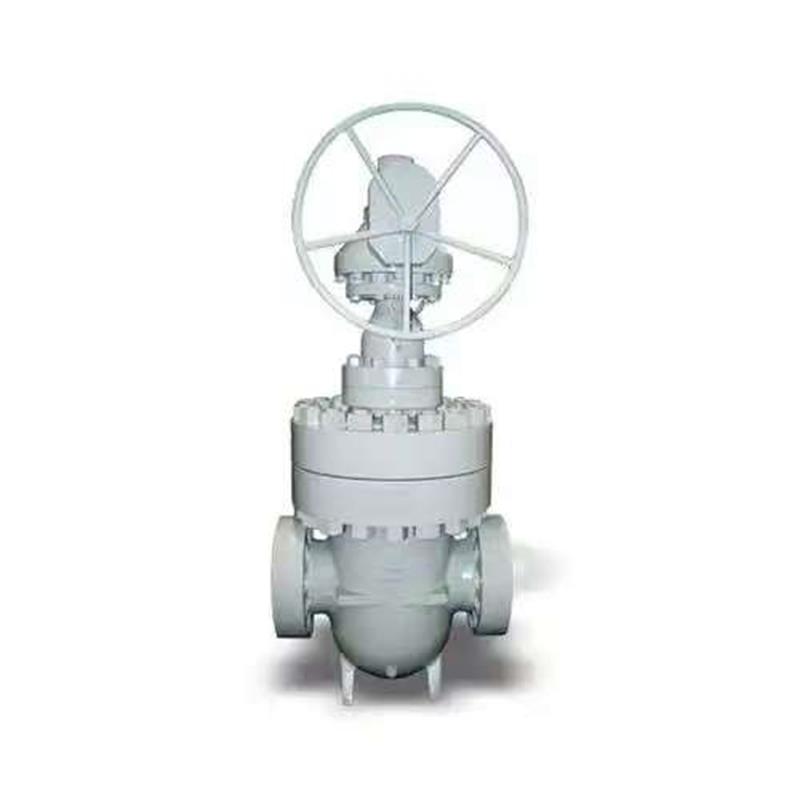

The propped flat gate valve is designed according to API 6D standard, and thanks to its unique double gate structure, it can achieve excellent two-way sealing performance under both high and low pressure. The greater the torque, the tighter the seal. In the process of switching, the sealing surface of the gate plate and the sealing surface of the seat ring are separated, which reduces the wear of the sealing surface and extends the service life of the valve. In view of these characteristics, the valve is widely used in high temperature and high pressure pipelines.
Caliber range: 2""~12""(DN50~DN300)
Pressure CLASS: ASME CLASS 300~2500 (PN40~PN420)
Main material: carbon steel, stainless steel, alloy steel and duplex steel
Connection mode: RF,BW,RTJ
Operation mode: manual, pneumatic, electric and hydraulic
Please contact us if you need customized services. We will contact you with the price and availability in 24 hours.
| Product | Product Code | Purity | Size | Contact Us |
1, the use of floating seat, two-way opening and closing, sealing and reliable, opening and closing flexible.
2, the lower part of the gate opened a diversion hole, and to give precision-oriented, while the seal is spray-welded cemented carbide, erosion-resistant.
3, the valve body carrying capacity is high, the channel is straight-through, fully open, and the gate diversion hole through and straight pipe similar to the flow resistance
is small.Stem composite filler, multiple seals, making the seal reliable, small friction.
4, close the valve, turn the hand wheel clockwise, the gate moved down to the bottom, due to the role of media pressure, the inlet seal seat to the gate direction. A larger
seal than the pressure, thus forming the first seal. At the same time, the gate pressure to the outlet seal seat, a double seal.
5, due to the use of double seal, it can not affect the pipeline work more vulnerable parts. This is our factory product priority over similar products at home and abroad an
important feature.
6, open the gate, turn the hand wheel counterclockwise, the gate up, diversion hole and channel hole
the valve is widely used in high temperature and high pressure pipelines.
