Product Code : VF--ZCC-Z28-CU
Product model: Z641H
Nominal diameter: DN50~800mm
Nominal pressure: PN1.6~4.0MPa
Ambient temperature: Standard type :-20~80℃
Body material: Carbon steel (C), stainless steel (P4, P6)
Design basis: GB standard, ANSI standard
Design standard: GB/12237, ANSI B16.34
Structure length: GB/12221, ANSI B16.10
Connection flange size: GB/9113, JB/T79, ANSI B16.5
Experiment and test: JB/T9092, API 598
Please contact us if you need customized services. We will contact you with the price and availability in 24 hours.
| Product | Product Code | Purity | Size | Contact Us |

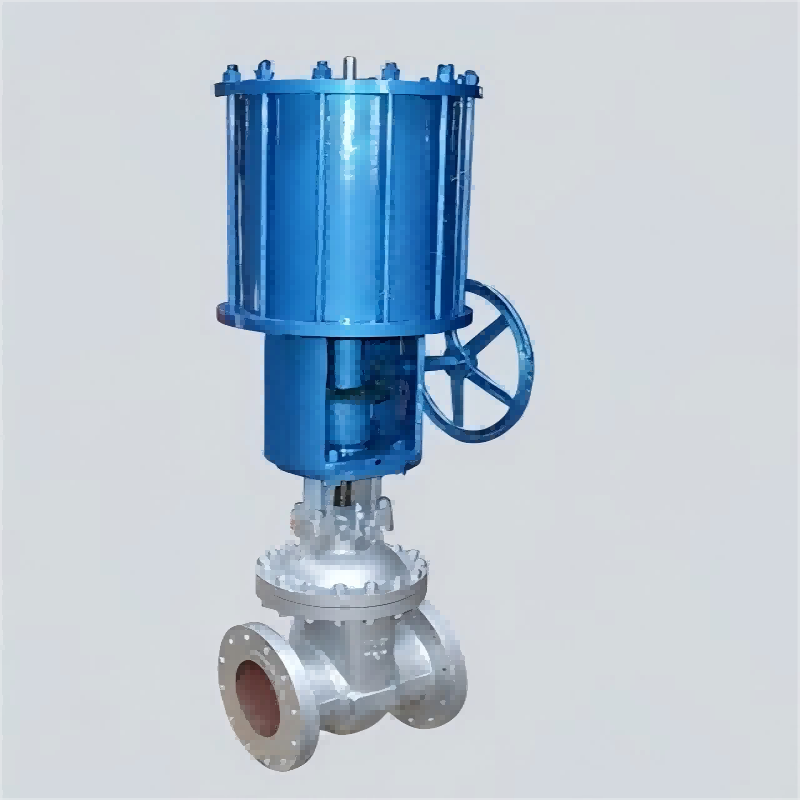

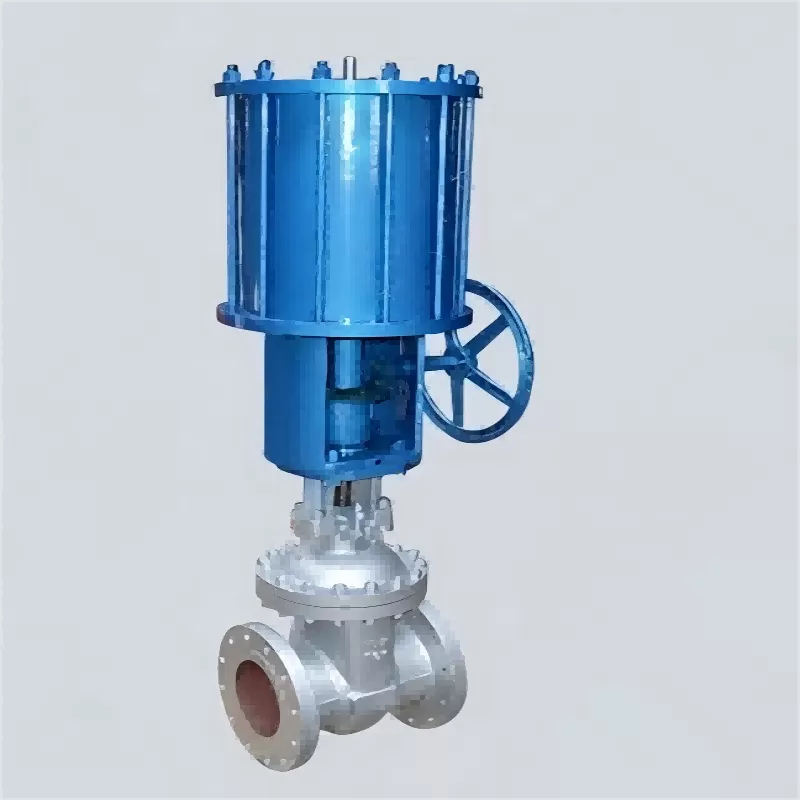

Pneumatic manual wedge gate valves are low-stand open-stem gate valves with pneumatic actuators (double cylinder with buffer mechanism) and manual and protective mechanisms (manual and self-locking pneumato-manual changeover devices). Compared with single-cylinder pneumatic gate valve, the lifting force of the valve is doubled due to the double-layer cylinder structure. This fundamentally solves the problem that some valve bodies of single-cylinder pneumatic gate valves are dead and cannot be opened. Moreover, because the valve has a buffer mechanism, it can effectively slow down and light the wear of the valve plate sealing surface and the valve body sealing surface caused by the downward impact of the piston when the valve is closed, and at the same time, it can avoid the phenomenon of the gate stuck.
Due to its advanced technology, reliable performance, convenient operation and maintenance, it has been widely used as a pipeline opening and closing device for conveying gas and liquid media in petroleum, chemical, metallurgy, electric power, Marine and other departments.
Pneumatic manual wedge gate valves are low-stand open-stem gate valves with pneumatic actuators (double cylinder with buffer mechanism) and manual and protective mechanisms (manual and self-locking pneumato-manual changeover devices). Compared with single-cylinder pneumatic gate valve, the lifting force of the valve is doubled due to the double-layer cylinder structure. This fundamentally solves the problem that some valve bodies of single-cylinder pneumatic gate valves are dead and cannot be opened. Moreover, because the valve has a buffer mechanism, it can effectively slow down and light the wear of the valve plate sealing surface and the valve body sealing surface caused by the downward impact of the piston when the valve is closed, and at the same time, it can avoid the phenomenon of the gate stuck.
Due to its advanced technology, reliable performance, convenient operation and maintenance, it has been widely used as a pipeline opening and closing device for conveying gas and liquid media in petroleum, chemical, metallurgy, electric power, Marine and other departments.
