Product Code : VF--ZCC-Z29-CU
Product Model: Z6s43(4)WF(Y, H)
Nominal diameter: DN50 ~ 700mm, NPS2" ~ 28"
Nominal pressure: PN1.0 ~ 16.0MPa, Class150 ~ 900Lb
Applicable temperature: "G" type (-29 ~ 250℃),"D" type (-45 ~ 121℃), ordinary type (-29 ~ 121℃)
Design standards: API 600, API6D, ASME B16.34, GB/T 12234
Structure length: ASME B16.10, API6D, GB/T 12221
Connection standard: ASME B16.5, ASME B16.47, GB/T 9113, JB/T 79, HG/T 20592
Pressure test: API 598, GB/T 13927, JB/T 9092
Pressure-temperature class: ASME B16.34, GB/T 12224
Please contact us if you need customized services. We will contact you with the price and availability in 24 hours.
| Product | Product Code | Purity | Size | Contact Us |

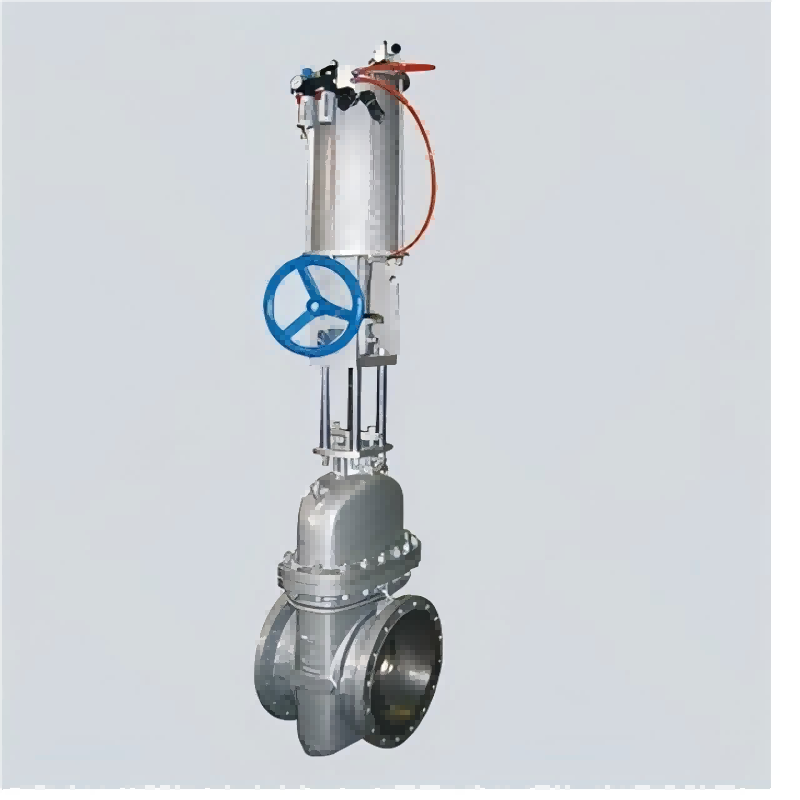

Pneumatic plate gate valve without diversion hole has the characteristics of reliable sealing performance, small opening and closing moment, sulfur resistance and wear resistance, long service life, and can clean the pipeline with hairball. Suitable for water, oil, natural gas, steam and other non-corrosive and corrosive media pipeline system as the opening and closing device, especially suitable for petrochemical, oil, gas, long distance pipeline and other fields.
Pneumatic plate gate valve without diversion hole has the characteristics of reliable sealing performance, small opening and closing moment, sulfur resistance and wear resistance, long service life, and can clean the pipeline with hairball. Suitable for water, oil, natural gas, steam and other non-corrosive and corrosive media pipeline system as the opening and closing device, especially suitable for petrochemical, oil, gas, long distance pipeline and other fields.
