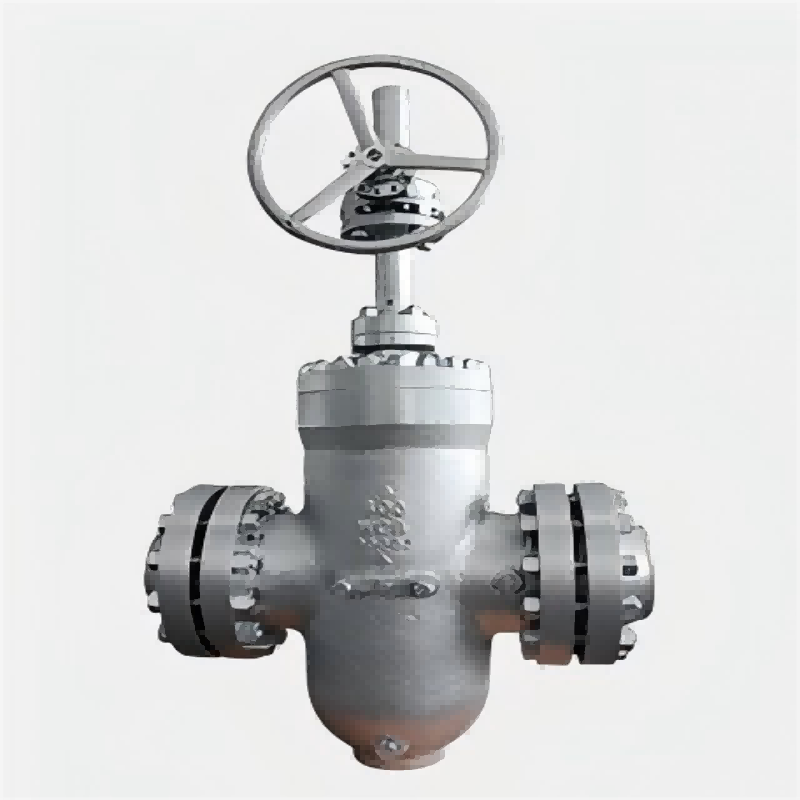

Product Code : VF--ZCC-Z48-CU
Size range: NPS 2~48 / CLASS 150~1500
Structure type: Single ram, double ram
Seal type: soft seal, hard seal
Operation mode: hand wheel, gear box
Design standard: API6D, ASME B16.34
Connecting end: ASME B16.5, ASME B16.47, MSS SP-44
Inspection and testing: API 6D
Please contact us if you need customized services. We will contact you with the price and availability in 24 hours.
| Product | Product Code | Purity | Size | Contact Us |
1. Full diameter design, easy to clean the pipeline
2. Double blocking and draining structure.
3. Optional soft embedded seat + O-ring seal or hard covered seat + graphite seal structure
4. The valve body is cast, the gate is forged or cast, and the seat ring is all forged
5. Fire resistant design, in accordance with API 607/API 6FA
6. Ram Single or double ram is optional
7. Automatic overpressure discharge in the middle cavity, with a drain hole at the bottom
8. The valve stem is arranged with the sealing structure, and the packing and O-ring are double sealed; The valve seat and stem are provided with an emergency grease sealing structure and device
9. Switch flexible, easy to operate, long life
1. Full diameter design, easy to clean the pipeline
2. Double blocking and draining structure.
3. Optional soft embedded seat + O-ring seal or hard covered seat + graphite seal structure
4. The valve body is cast, the gate is forged or cast, and the seat ring is all forged
5. Fire resistant design, in accordance with API 607/API 6FA
6. Ram Single or double ram is optional
7. Automatic overpressure discharge in the middle cavity, with a drain hole at the bottom
8. The valve stem is arranged with the sealing structure, and the packing and O-ring are double sealed; The valve seat and stem are provided with an emergency grease sealing structure and device
9. Switch flexible, easy to operate, long life
Packing of Standard Packing:
Typical bulk packaging includes palletized plastic 5 gallon/25 kg. pails, fiber and steel drums to 1 ton super sacks in full container (FCL) or truck load (T/L) quantities. Research and sample quantities and hygroscopic, oxidizing or other air sensitive materials may be packaged under argon or vacuum. Solutions are packaged in polypropylene, plastic or glass jars up to palletized 470 gallon liquid totes Special package is available on request. E FORUs’ is carefully handled to minimize damage during storage and transportation and to preserve the quality of our products in their original condition.
