Product Code : VF--ZCC-Z26-CU
Product model: Z943F
Nominal diameter: NPS 2" ~ 60", DN50 ~ 2000mm
Pressure range: CL150 ~ 900Lb, PN1.0 ~ 16.0MPa
Operating temperature: -15℃ ~ +120℃
Main material: carbon steel, stainless steel, alloy steel
Design standards: API 6D, API6A, ASME B16.34, GB/T 19672
Structure length: ASME B16.10, GB/T 12221
Connection standard: ASME B16.5, GB/T 9113, JB/T 79
Pressure test: API 598, GB/T 13927, GB/T 26480, JB/T 9092
Pressure-temperature class: API6D, GB/T 26480
Please contact us if you need customized services. We will contact you with the price and availability in 24 hours.
| Product | Product Code | Purity | Size | Contact Us |

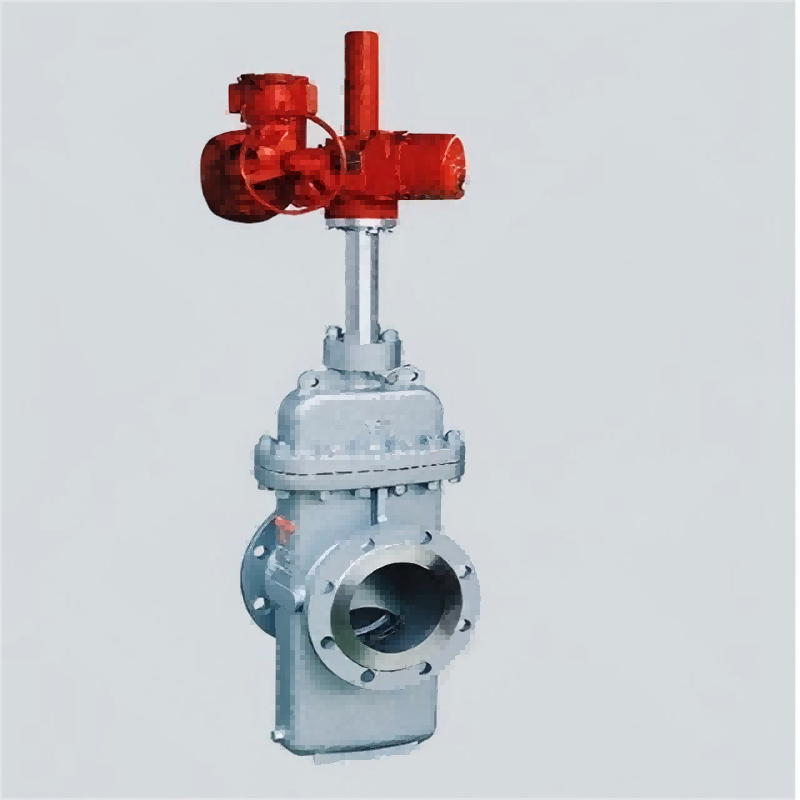

The electric plate gate valve has the characteristics of reliable sealing performance, small opening and closing torque, sulfur resistance and wear resistance, long service life, and pipe cleaning. Suitable for water, oil, natural gas, steam and other non-corrosive and corrosive media pipeline system as a opening and closing device, especially suitable for petrochemical, oil, gas, long distance pipeline.
The electric plate gate valve has the characteristics of reliable sealing performance, small opening and closing torque, sulfur resistance and wear resistance, long service life, and pipe cleaning. Suitable for water, oil, natural gas, steam and other non-corrosive and corrosive media pipeline system as a opening and closing device, especially suitable for petrochemical, oil, gas, long distance pipeline.
Packing of Standard Packing:
Typical bulk packaging includes palletized plastic 5 gallon/25 kg. pails, fiber and steel drums to 1 ton super sacks in full container (FCL) or truck load (T/L) quantities. Research and sample quantities and hygroscopic, oxidizing or other air sensitive materials may be packaged under argon or vacuum. Solutions are packaged in polypropylene, plastic or glass jars up to palletized 470 gallon liquid totes Special package is available on request. E FORUs’ is carefully handled to minimize damage during storage and transportation and to preserve the quality of our products in their original condition.
