Product Code : VF--ZCC-Z36-CU
Nominal diameter (DN/mm); 15-100.
Working pressure 1.0Mpa-50.0Mpa.
Operating temperature: -196℃-650℃.
Connection method: internal thread, external thread, flange, welding, butt welding, socket welding, sleeve, clamp.
Driving mode: manual, pneumatic, hydraulic, electric.
Body material: copper, cast iron, cast steel, carbon steel, WCB, WC6, WC9, 20#, 25#, forged steel, A105, F11, F22, stainless steel, 304, 304L, 316, 316L, chromium molybdenum steel, low temperature steel, titanium alloy steel, etc.
Please contact us if you need customized services. We will contact you with the price and availability in 24 hours.
| Product | Product Code | Purity | Size | Contact Us |

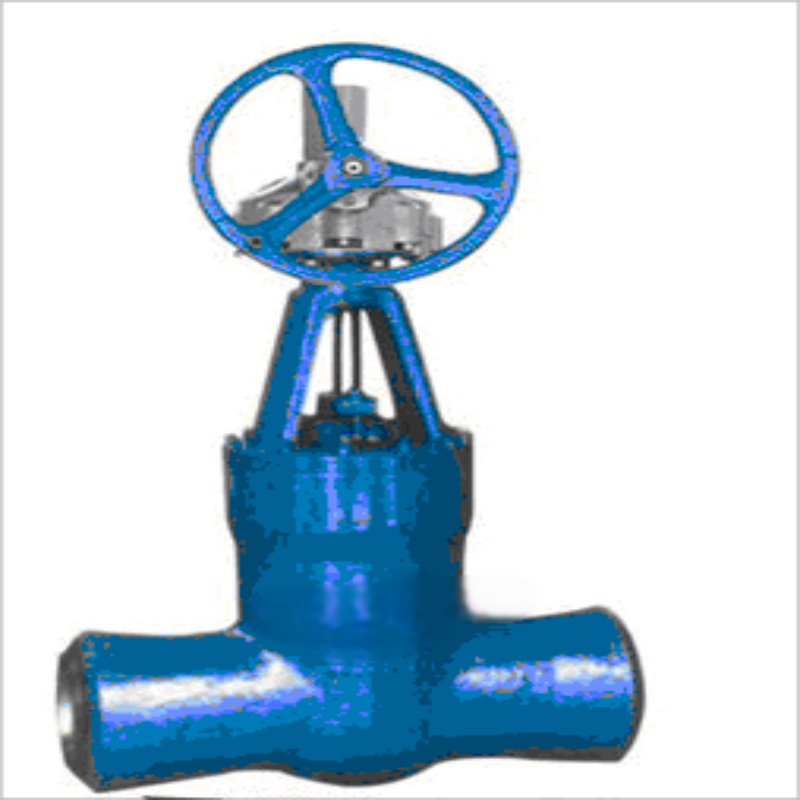

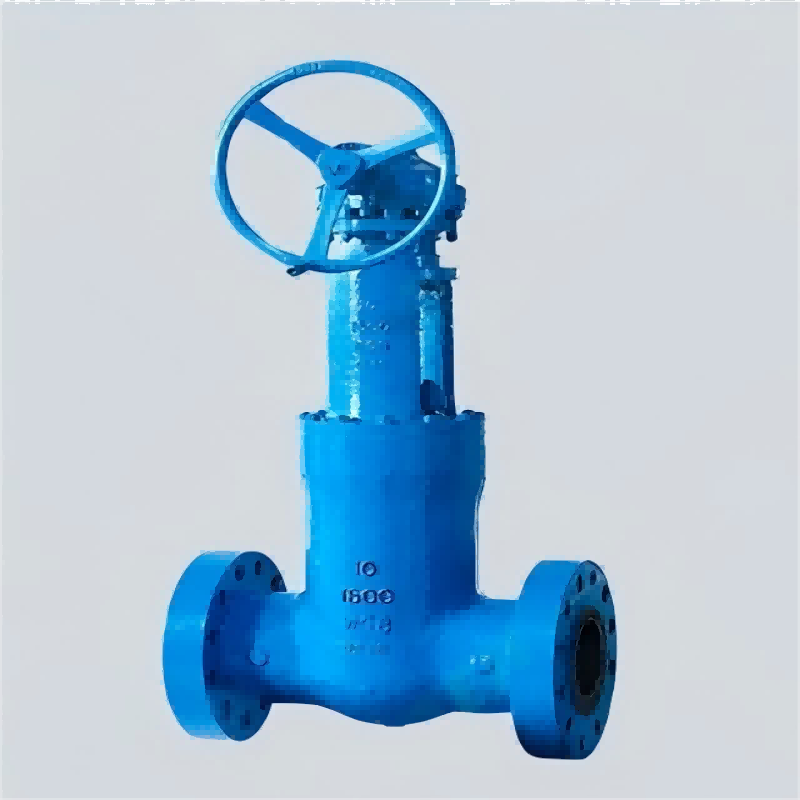

Gate valve, also known as gate valve or gate valve, is the most widely used valve. It is through the lift of the gate to control the valve opening and closing, the gate is perpendicular to the direction of the fluid, changing the relative position between the gate and the seat can change the size of the channel.
Gate valves have the following advantages:
1, the fluid resistance is small, the sealing surface is brush and erosion of the medium is small.
2, less effort to open and close.
3, the medium flow is not limited, does not disturb the flow, does not reduce the pressure.
4, simple shape, short structure length, good manufacturing process, wide range of application.
Bevel gear gate valves are widely used in oil, natural gas, chemical, electric power, steel and sewage treatment and other industrial fields. In these fields, the bevel gear gate valve is mainly used to control the flow of fluid in the pipeline to ensure the safe and stable operation of the pipeline system. For example: petrochemical industry: used in the transportation pipeline system of various media to effectively prevent media leakage and ensure production safety. Natural gas industry: plays an important role in the natural gas transmission pipeline to ensure the safe transmission of natural gas. Water treatment industry: mainly used in the pipeline system of water plants, sewage treatment plants and other places, the flow resistance is small, not easy to plug.
Packing of Standard Packing:
Typical bulk packaging includes palletized plastic 5 gallon/25 kg. pails, fiber and steel drums to 1 ton super sacks in full container (FCL) or truck load (T/L) quantities. Research and sample quantities and hygroscopic, oxidizing or other air sensitive materials may be packaged under argon or vacuum. Solutions are packaged in polypropylene, plastic or glass jars up to palletized 470 gallon liquid totes Special package is available on request. E FORUs’ is carefully handled to minimize damage during storage and transportation and to preserve the quality of our products in their original condition.
