Product Code : VF--ZCC-Z22-CU
Product model: PZ573X
Nominal diameter: NPS 2" ~ 32", DN50 ~ 800mm
Pressure range: CL150, PN1.0 ~ 16.0MPa
Operating temperature: -10℃~120℃
Main material: carbon steel, stainless steel
Design standards: API 600, API6D, ASME B16.34, GB/T 12234
Structure length: ASME B16.10, API6D, GB/T 12221
Connection standard: ASME B16.5, ASME B16.47, GB/T 9113, JB/T 79, HG/T 20592
Pressure test: API 598, GB/T 13927, JB/T 9092
Pressure-temperature class: ASME B16.34, GB/T 12224
Please contact us if you need customized services. We will contact you with the price and availability in 24 hours.
| Product | Product Code | Purity | Size | Contact Us |
Product overview

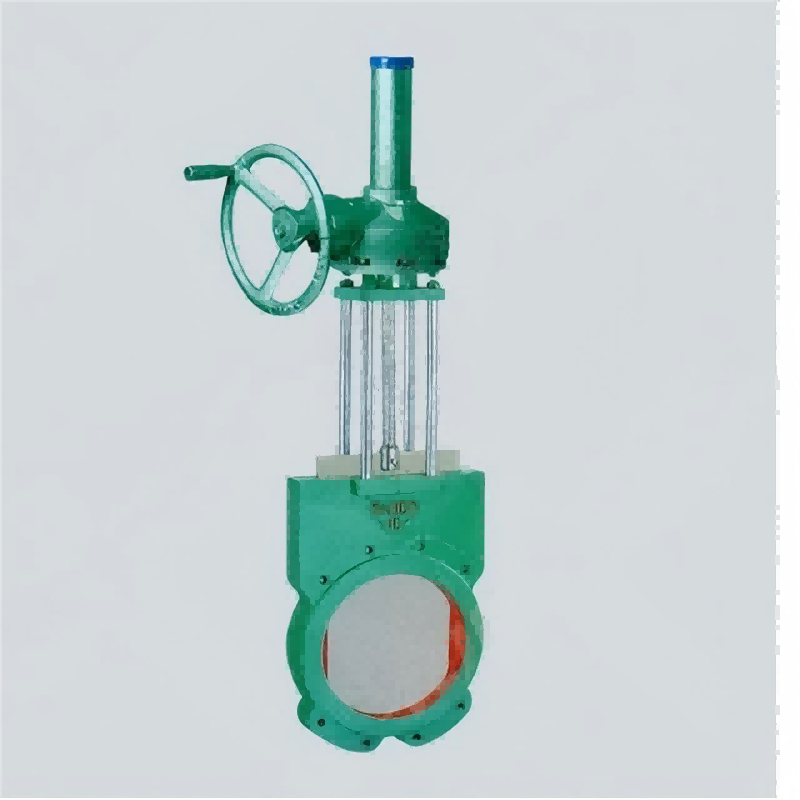

The bevel gear grout valve is mainly driven by the driving part (bevel gear). The opening and closing of the ram depends on the clockwise rotation of the driving part (bevel gear). The ram will slowly rise and the ram will open. On the contrary, the driving part (bevel gear) rotates counterclockwise, that is, the ram closes and stops the medium flow. Widely used in petroleum, chemical, thermal power plants and other oil, water, steam pipeline to connect or cut off the intermediate pipe opening and closing device.
Product overview
The bevel gear grout valve is mainly driven by the driving part (bevel gear). The opening and closing of the ram depends on the clockwise rotation of the driving part (bevel gear). The ram will slowly rise and the ram will open. On the contrary, the driving part (bevel gear) rotates counterclockwise, that is, the ram closes and stops the medium flow. Widely used in petroleum, chemical, thermal power plants and other oil, water, steam pipeline to connect or cut off the intermediate pipe opening and closing device.
